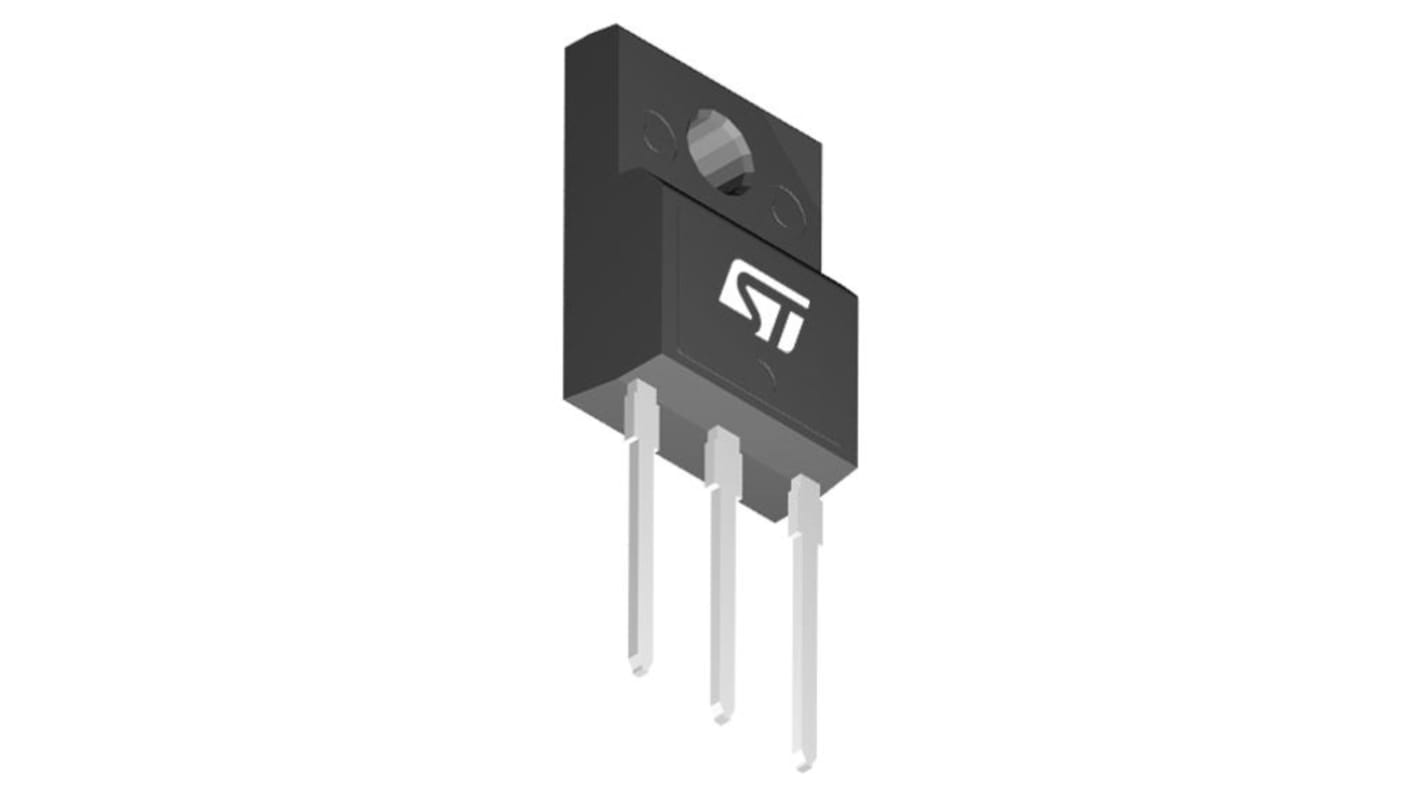

STMicroelectronics SuperMESH N-Channel MOSFET, 2.5 A, 800 V, 3-Pin TO-220FP STF3NK80Z
- RS Stock No.:
- 151-431
- Mfr. Part No.:
- STF3NK80Z
- Brand:
- STMicroelectronics
Save 12% when you buy 1000 units
Subtotal (1 tube of 50 units)*
£22.90
(exc. VAT)
£27.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
50 - 450 | £0.458 | £22.90 |
500 - 950 | £0.435 | £21.75 |
1000 + | £0.403 | £20.15 |
*price indicative
- RS Stock No.:
- 151-431
- Mfr. Part No.:
- STF3NK80Z
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 2.5 A | |
Maximum Drain Source Voltage | 800 V | |
Package Type | TO-220FP | |
Series | SuperMESH | |
Mounting Type | Through Hole | |
Pin Count | 3 | |
Channel Mode | Enhancement | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 2.5 A | ||
Maximum Drain Source Voltage 800 V | ||
Package Type TO-220FP | ||
Series SuperMESH | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics Power MOSFET developed using Super MESH technology, achieved through optimization of well established Power MESH layout. In addition to a significant reduction in on resistance, this device is designed to ensure a high level of dv/dt capability for the most demanding applications.
100% avalanche tested
Gate charge minimized
Very low intrinsic capacitance
Zener protected
Gate charge minimized
Very low intrinsic capacitance
Zener protected
