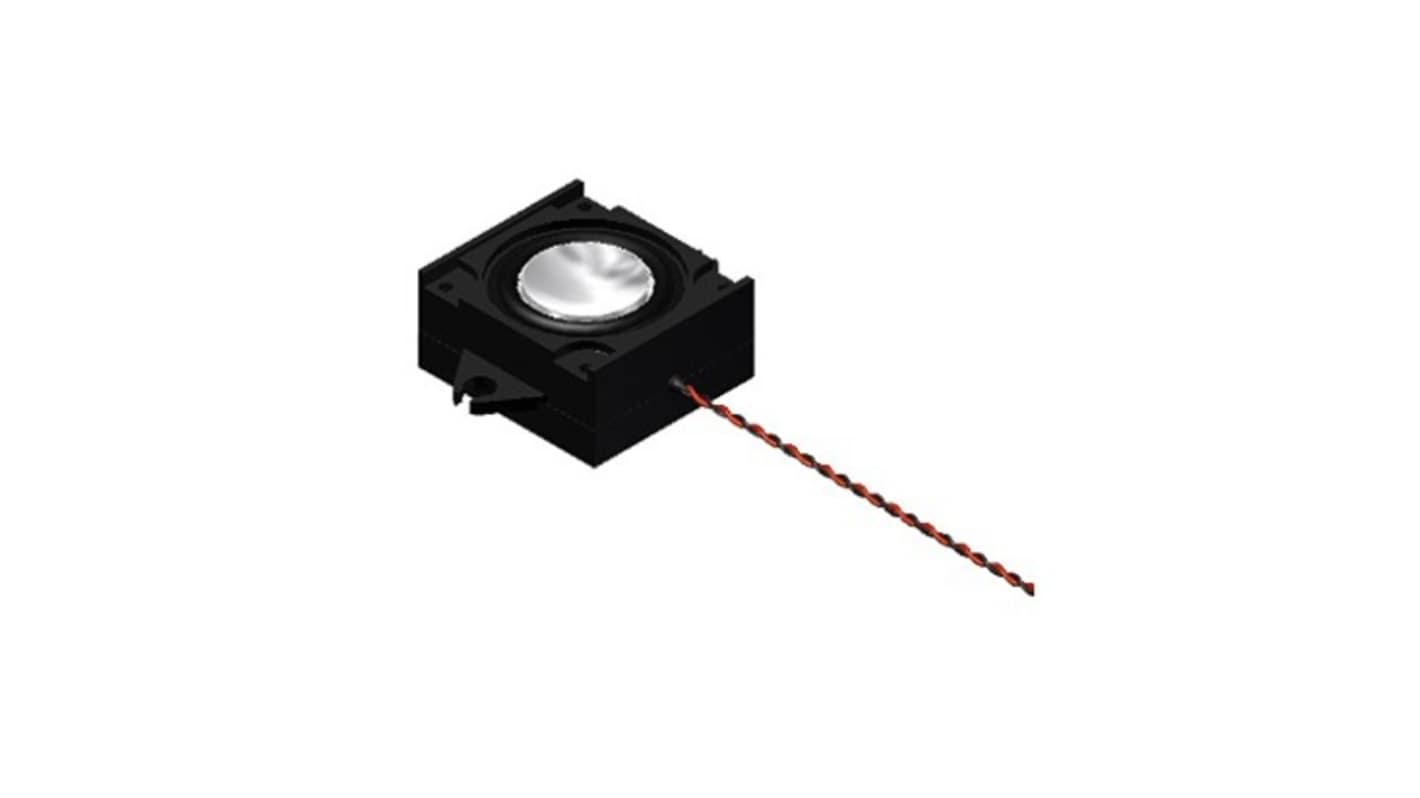

PUI Audio 8 Ω 2 W Miniature Speaker, 150 mm Lead Length 14.8 mm, 31 mm
- RS Stock No.:
- 276-832
- Mfr. Part No.:
- ASE02808MR-LW150-R
- Brand:
- PUI Audio
Bulk discount available
Subtotal (1 unit)*
£5.27
(exc. VAT)
£6.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 22 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.27 |
| 10 - 99 | £4.75 |
| 100 - 499 | £4.38 |
| 500 - 999 | £4.06 |
| 1000 + | £3.30 |
*price indicative
- RS Stock No.:
- 276-832
- Mfr. Part No.:
- ASE02808MR-LW150-R
- Brand:
- PUI Audio
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PUI Audio | |
| Product Type | Miniature Speaker | |
| Coil Resistance | 8Ω | |
| Sound Level | 82dBA | |
| Sub Type | Enclosed Speaker | |
| Tone Type | Continuous | |
| Rated Power | 2W | |
| Lead Length | 150mm | |
| Frequency | 550Hz | |
| Cone Material | Mylar | |
| Impedance | 8Ω | |
| Height | 14.8mm | |
| Length | 36.8mm | |
| Width | 31 mm | |
| Standards/Approvals | REACH, EU, RoHS 2011 | |
| Select all | ||
|---|---|---|
Brand PUI Audio | ||
Product Type Miniature Speaker | ||
Coil Resistance 8Ω | ||
Sound Level 82dBA | ||
Sub Type Enclosed Speaker | ||
Tone Type Continuous | ||
Rated Power 2W | ||
Lead Length 150mm | ||
Frequency 550Hz | ||
Cone Material Mylar | ||
Impedance 8Ω | ||
Height 14.8mm | ||
Length 36.8mm | ||
Width 31 mm | ||
Standards/Approvals REACH, EU, RoHS 2011 | ||
- COO (Country of Origin):
- CN
The PUI Audio Speaker is round in shape, operating at temperatures from 25°C to 60°C. It has an impedance of 8 ohms and a resonant frequency of 0.55 kHz. The sound pressure level is 82 dB, with a rated input power of 2 watts. This speaker is classified as standard temperature grade and features a Mylar diaphragm and an Ndfeb magnet material. The tolerance is ±3 dB, with a resonant frequency tolerance of 20%. The frequency range spans from 0.45 kHz to 16 kHz.
RoHS compliant
