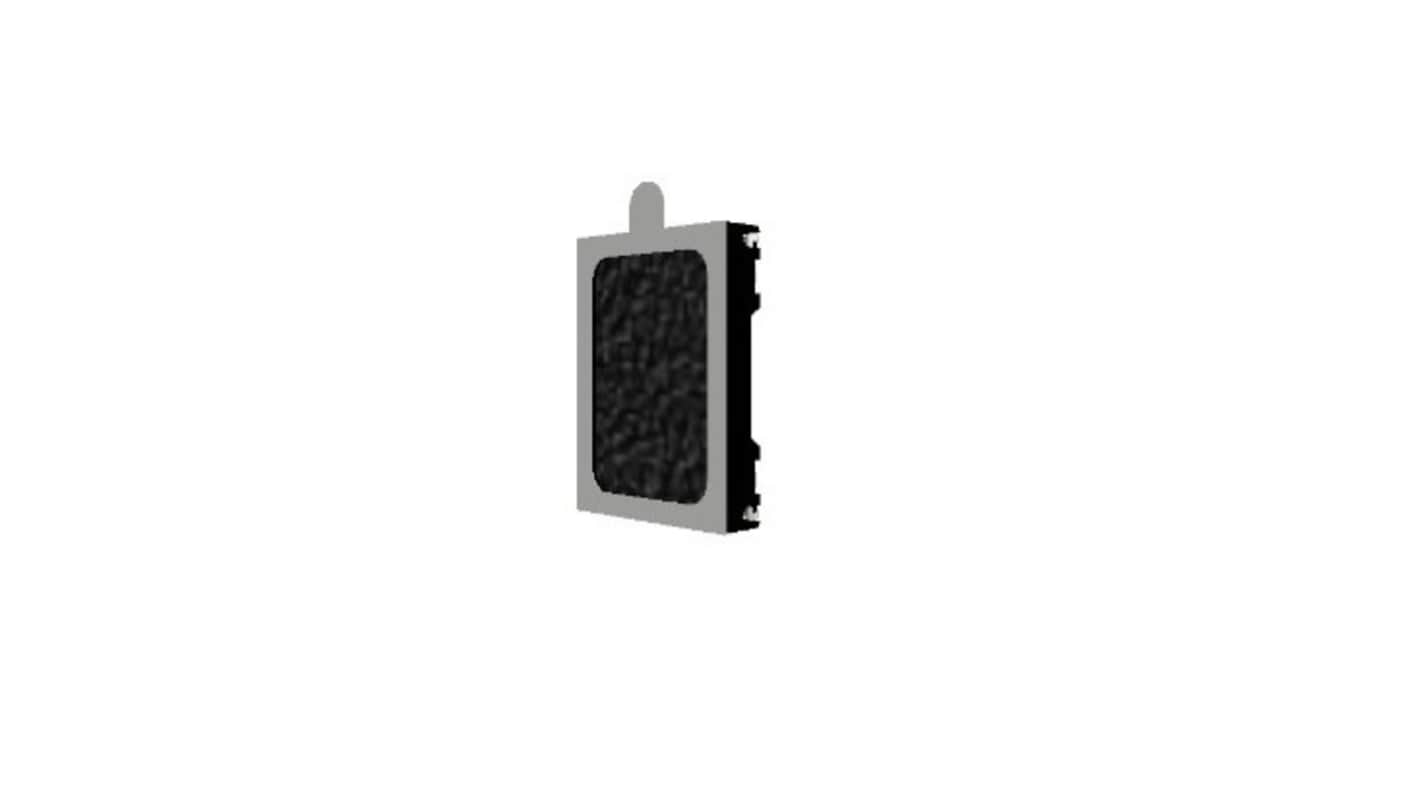

PUI Audio 1 W Miniature Speaker

View all Miniature Speakers

Subtotal (1 unit)*

£1.35

(exc. VAT)

£1.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 50 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1.35

*price indicative

Packaging Options:
RS Stock No.:
276-740
Mfr. Part No.:
AS01506MS-SC15-WP-2-R
Brand:
PUI Audio
Find similar products by selecting one or more attributes.
Select all

Brand

PUI Audio

Product Type

Miniature Speaker

Sound Level

93dB

Rated Power

1W

Frequency

600Hz

Cone Material

Polyetheretherketone

Impedance

6Ω

Standards/Approvals

RoHS, REACH

COO (Country of Origin):
CN
The PUI Audio Speaker features a rated input power of 1.0 watt and a maximum input power of 1.2 watts, with an impedance of 6 ± 15 ohms. It has a sensitivity of 92 ± 3 dB at 2.45V measured 10 cm away at 2 kHz in a 1cc enclosure. The resonant frequency is 600 ± 20% Hz in free air and 900 ± 20% Hz in a 1cc enclosure. With a frequency range of 600 to 20,000 Hz, the speaker is built with a PPA frame material and an NdFeB magnet. Weighing just 1.5 grams, it is lightweight and suitable for compact audio applications.

PEEK diaphragm for flat frequency response

High energy neodymium motor

Only 2.5 mm thick with spring loaded contacts

Dustproof and waterproof IP67 rated
