RS PRO 16Ω 0.5W Miniature Speaker 40mm Dia. , 40 x 5mm
- RS Stock No.:
- 102-780
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£3.63
(exc. VAT)
£4.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £3.63 |
10 - 99 | £3.27 |
100 - 499 | £3.01 |
500 - 999 | £2.79 |
1000 + | £2.50 |
*price indicative
- RS Stock No.:
- 102-780
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coil Resistance | 16Ω | |
Sound Level | 92dB | |
Rated Power | 0.5W | |
Cone Material | PET | |
Dimensions | 40 x 5mm | |
Diameter | 40mm | |
Height | 5mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coil Resistance 16Ω | ||
Sound Level 92dB | ||
Rated Power 0.5W | ||
Cone Material PET | ||
Dimensions 40 x 5mm | ||
Diameter 40mm | ||
Height 5mm | ||
- COO (Country of Origin):
- CN

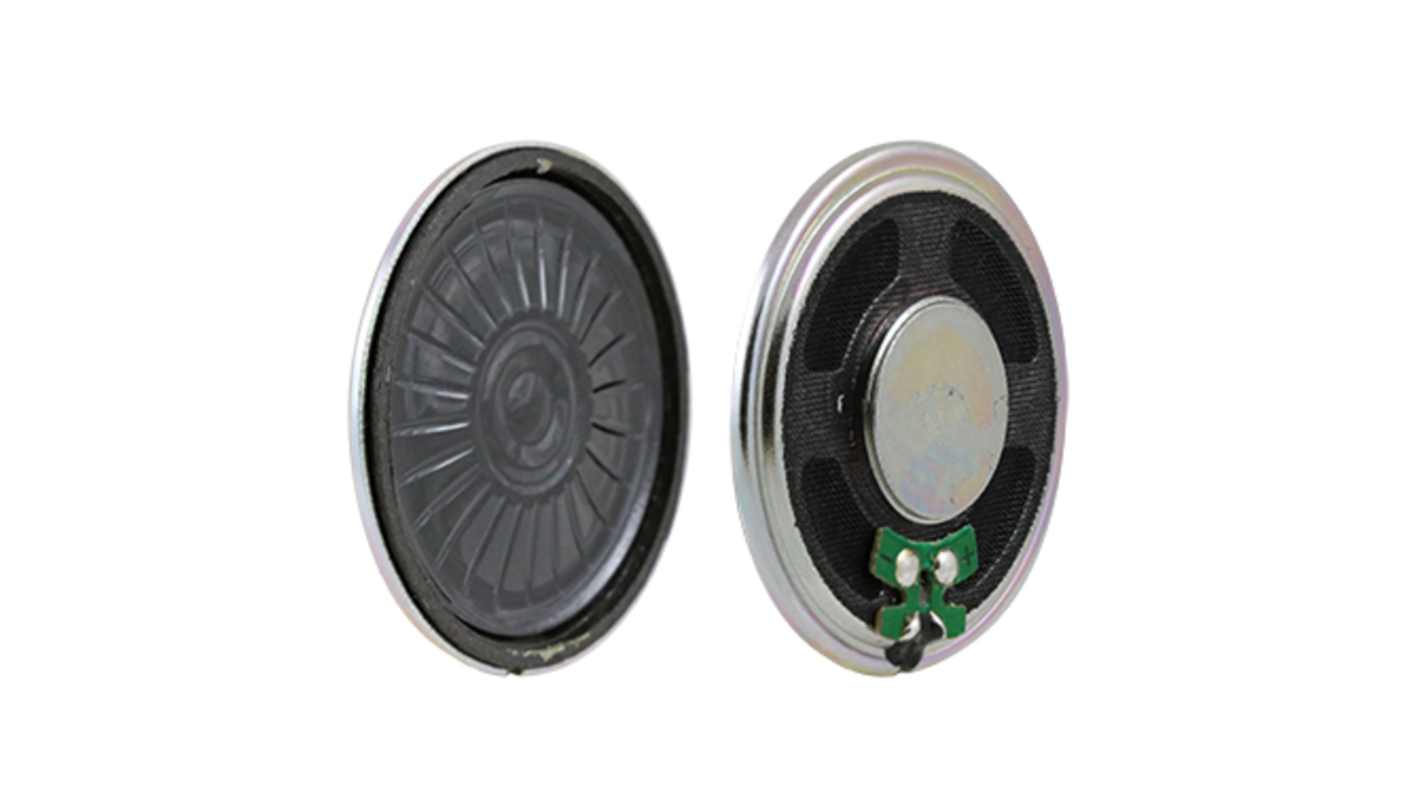

RS PRO 40mm Circular Miniature Speaker, 92dB
A versatile miniature speaker with a coil resistance of 16Ω. Intended for smaller devices the speaker is manufactured to a compact size of 40mm x 5mm with solder points for simple installation.
With a frequency range of 0Hz - 6KHz the miniature speaker will support applications requiring general sound, voice and music output. Featuring a sound level of 92dB the speaker delivers a clean and impressive volume and is audible even in louder areas.
Suitable for a wide range of products including headsets, security systems, medical products, smartphones, toys, communications equipment and safety systems or equipment.
With a frequency range of 0Hz - 6KHz the miniature speaker will support applications requiring general sound, voice and music output. Featuring a sound level of 92dB the speaker delivers a clean and impressive volume and is audible even in louder areas.
Suitable for a wide range of products including headsets, security systems, medical products, smartphones, toys, communications equipment and safety systems or equipment.
Features and Benefits
Compact miniature speaker
Size of 40 x 5mm
High output of 92dB
Solder points
Frequency range of 0Hz – 6KHz
Resonance frequency 600Hz
Weight of 9.2g
Size of 40 x 5mm
High output of 92dB
Solder points
Frequency range of 0Hz – 6KHz
Resonance frequency 600Hz
Weight of 9.2g
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
