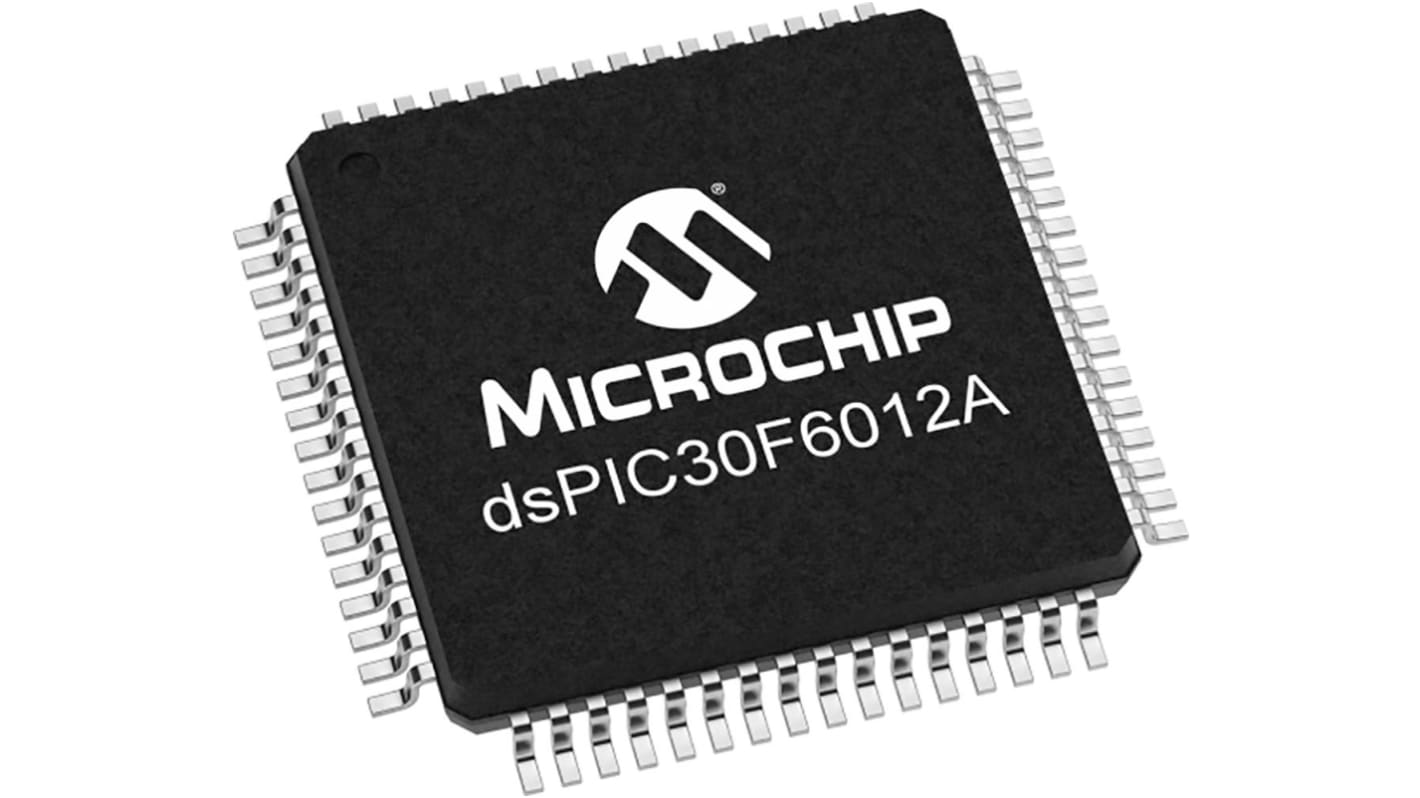

Microchip DSPIC30F6012A-30I/PT, 16bit dsPIC Microcontroller, dsPIC30F, 25MHz, 144 kB Flash, 64-Pin TQFP

RS Stock No.:: 197-6098
Mfr. Part No.:: DSPIC30F6012A-30I/PT
Brand:: Microchip

Microchip DSPIC30F6012A-30I/PT, 16bit dsPIC Microcontroller, dsPIC30F, 25MHz, 144 kB Flash, 64-Pin TQFP

Subtotal (1 unit)**

£7.57

(exc. VAT)

£9.08

(inc. VAT)

2214 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Check stock levels

Units	Per unit
1 +	£7.57

**price indicative

RS Stock No.:: 197-6098
Mfr. Part No.:: DSPIC30F6012A-30I/PT
Brand:: Microchip

Datasheet - dsPIC30F6012A

Attribute	Value
Family Name	dsPIC30F
Package Type	TQFP
Mounting Type	Surface Mount
Pin Count	64
Device Core	dsPIC
Data Bus Width	16bit
Program Memory Size	144 kB
Maximum Frequency	25MHz
RAM Size	8 kB
USB Channels	0
Number of PWM Units	8 x 16 bit
Number of SPI Channels	2
Number of UART Channels	2
Number of I2C Channels	1
Typical Operating Supply Voltage	2.5 to 5.5 V
Number of CAN Channels	2
Number of USART Channels	0
Maximum Operating Temperature	+85 °C
Pulse Width Modulation	8 x 16 bit
Number of PCI Channels	0
Dimensions	10 x 10 x 1mm
Number of Ethernet Channels	0
Width	10mm
Number of LIN Channels	0
Height	1mm
ADCs	16 x 12 bit
Length	10mm
Number of ADC Units	1
Instruction Set Architecture	RISC
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0
Program Memory Type	Flash

Microchip DSPIC30F6012A-30I/PT, 16bit dsPIC Microcontroller, dsPIC30F, 25MHz, 144 kB Flash, 64-Pin TQFP
