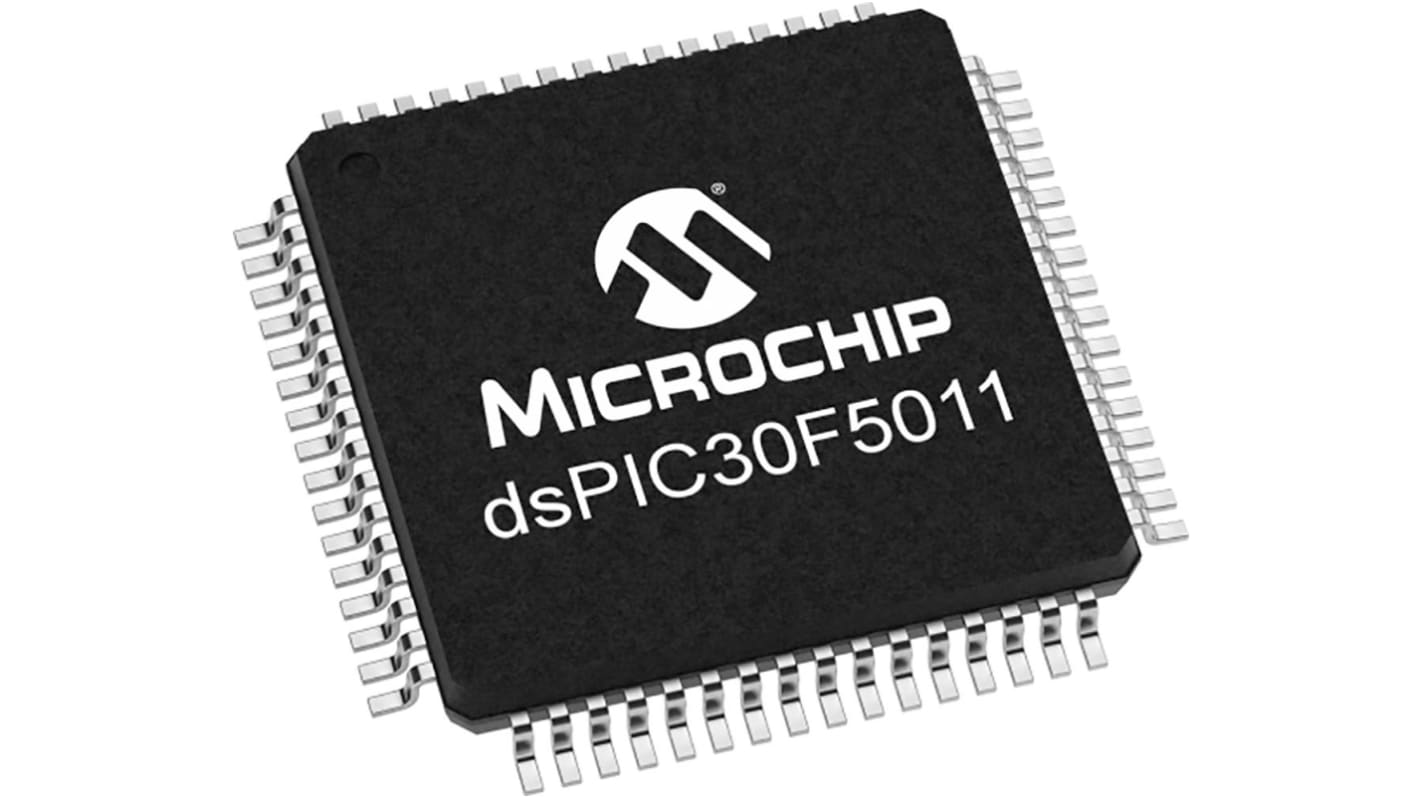

Microchip, 16bit dsPIC, dsPIC30F Microcontroller, 25MHz, 66 kB Flash, 64-Pin TQFP

View all Microcontrollers

Subtotal (1 tray of 160 units)*

£1,065.60

(exc. VAT)

£1,278.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 160 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
160 +£6.66£1,065.60

*price indicative

RS Stock No.:
197-6095
Mfr. Part No.:
DSPIC30F5011-20I/PT
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

dsPIC30F

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

dsPIC

Data Bus Width

16bit

Program Memory Size

66 kB

Maximum Frequency

25MHz

RAM Size

4 kB

USB Channels

0

Number of SPI Channels

1

Typical Operating Supply Voltage

2.5 → 5.5 V

Number of CAN Channels

1

Number of USART Channels

0

Number of I2C Channels

1

Number of UART Channels

2

Maximum Operating Temperature

+85 °C

Width

10mm

Height

1mm

Number of LIN Channels

0

Number of Ethernet Channels

0

Number of PCI Channels

0

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Instruction Set Architecture

RISC

Maximum Number of Ethernet Channels

0

ADCs

13 x 12 bit

Length

10mm

Dimensions

10 x 10 x 1mm

Microchip dsPIC30F family of Digital Signal Controllers (DSCs) offers designers performance of DSP and simplicity of an MCU. dsPIC30F5011/5013 are general purpose DSCs that feature peripherals suitable for a many different applications.

30 MIPS Max. CPU Speed
Modified Harvard architecture
C compiler optimized instruction set architecture
Modulo and Bit-Reversed modes
Two 40-bit wide accumulators with optional saturation logic
High-current sink/source I/O pins: 25 mA/25 mA
Five 16-bit timers/counters – option to pair up 16-bit timers into 32-bit timer modules
One 16-bit Capture input functions
Two 16-bit Compare/PWM output functions
