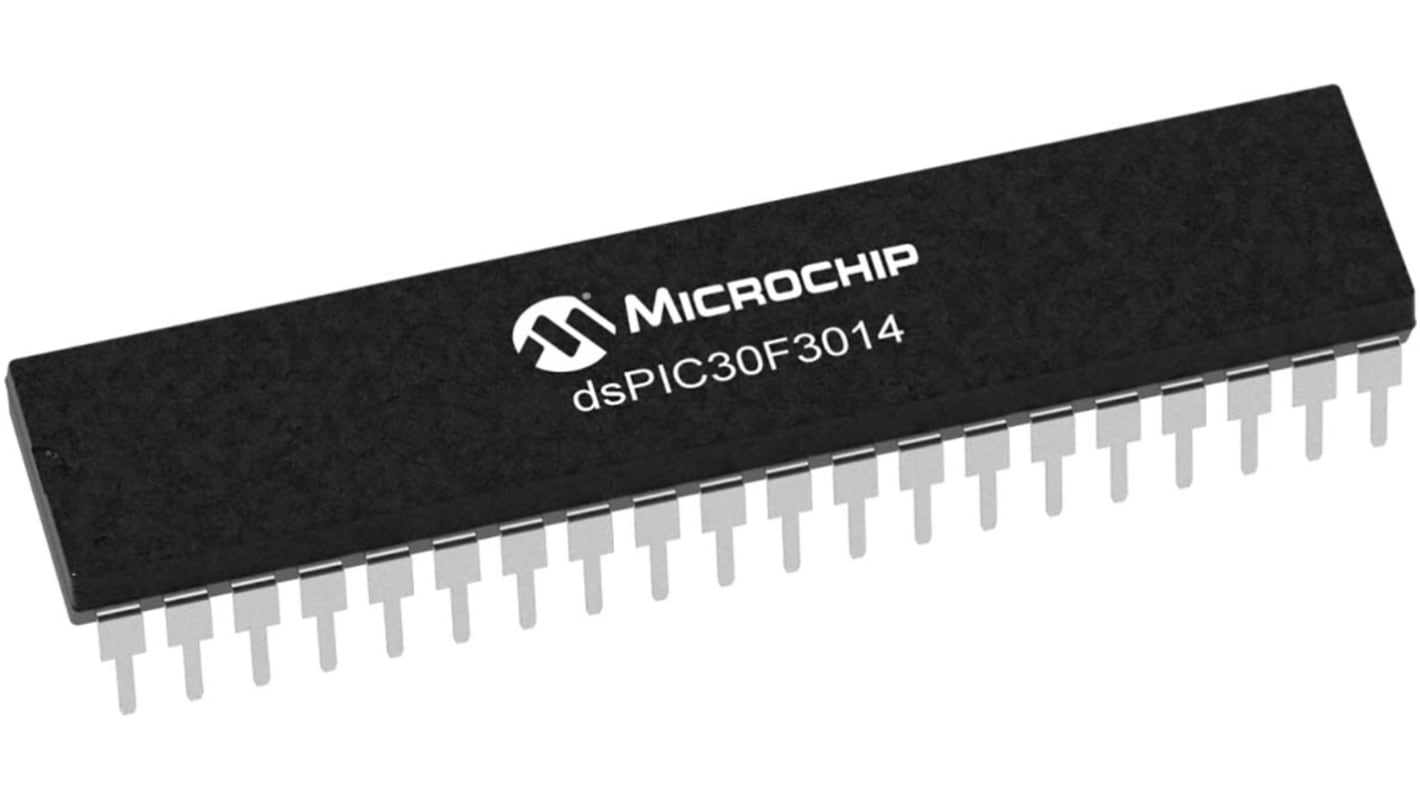

Microchip, 16bit dsPIC, dsPIC30F Microcontroller, 25MHz, 24 kB Flash, 40-Pin TQFP

View all Microcontrollers
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
197-6091
Mfr. Part No.:
DSPIC30F3014-30I/PT
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

dsPIC30F

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

40

Device Core

dsPIC

Data Bus Width

16bit

Program Memory Size

24 kB

Maximum Frequency

25MHz

RAM Size

2 kB

USB Channels

0

Number of PWM Units

2 x 16 bit

Number of SPI Channels

1

Typical Operating Supply Voltage

2.5 → 5.5 V

Number of USART Channels

0

Number of I2C Channels

1

Number of CAN Channels

0

Number of UART Channels

2

Number of PCI Channels

0

Minimum Operating Temperature

-40 °C

Number of Ethernet Channels

0

Instruction Set Architecture

RISC

Program Memory Type

Flash

Maximum Number of Ethernet Channels

0

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

Number of LIN Channels

0

ADCs

13 x 12 bit

Length

10mm

Width

10mm

Dimensions

10 x 10 x 1mm

Pulse Width Modulation

2 (16 bit)

Height

1mm

The dsPIC30F Digital Signal Controllers provides the performance of a DSP and simplicity of an MCU. Well suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for the designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate motor control peripherals, SMPS peripherals and a Codec interface that enable advanced motor control algorithms, efficient digital power converters and speech & audio applications. Small package DSCs with high performance ADC are best suited for smart sensing applications.

Flash Program Memory
RISC Instruction Set Architecture
Operating Temperature Range: -40 to +85 °C
