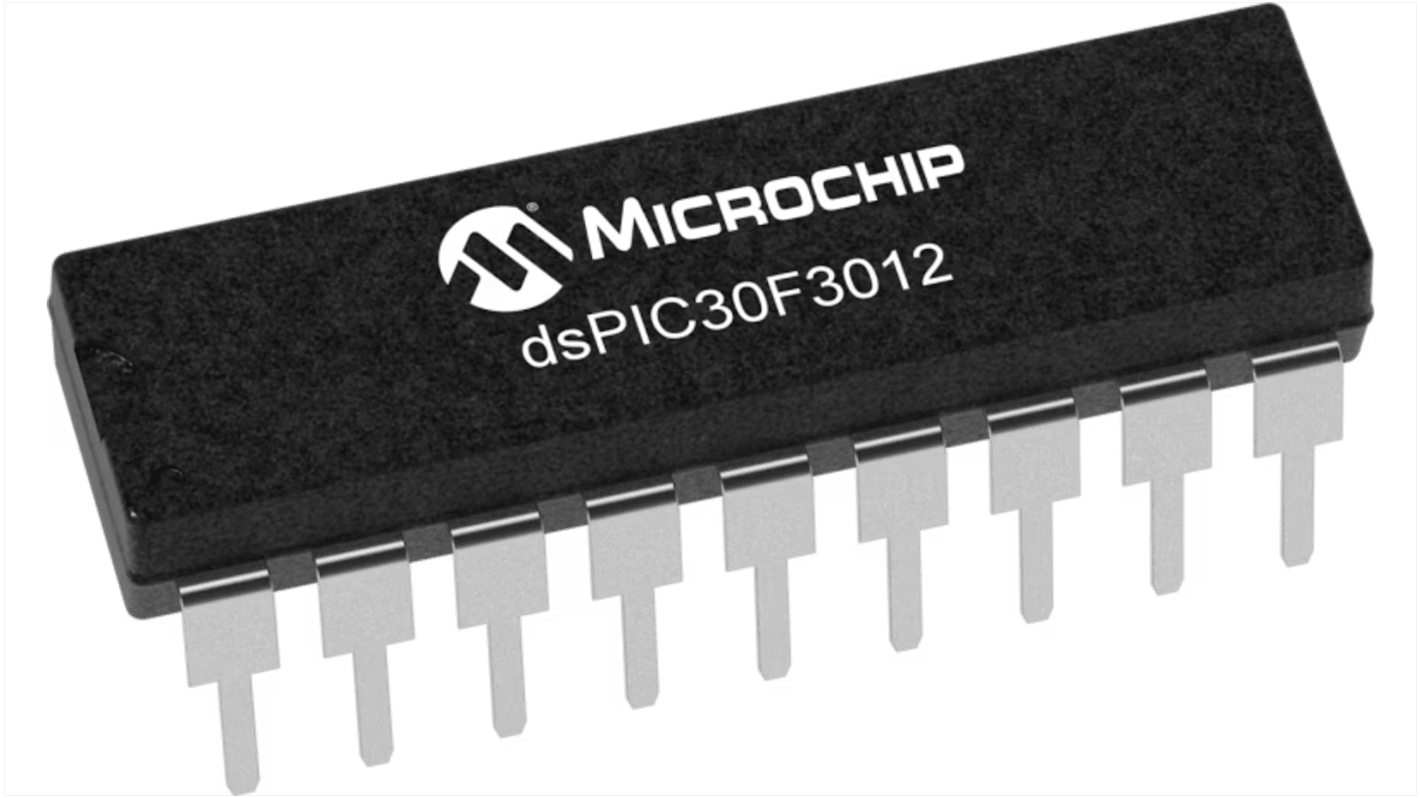

Microchip, 16bit dsPIC, dsPIC30F Microcontroller, 25MHz, 24 kB Flash, 18-Pin PDIP

View all Microcontrollers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
197-6089
Mfr. Part No.:
DSPIC30F3012-30I/P
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

dsPIC30F

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

18

Device Core

dsPIC

Data Bus Width

16bit

Program Memory Size

24 kB

Maximum Frequency

25MHz

RAM Size

2 kB

USB Channels

0

Number of PWM Units

2 x 16 bit

Number of SPI Channels

1

Number of I2C Channels

1

Number of CAN Channels

0

Number of UART Channels

1

Typical Operating Supply Voltage

2.5 → 5.5 V

Number of USART Channels

0

Number of Ethernet Channels

0

Instruction Set Architecture

RISC

Number of PCI Channels

0

Dimensions

22.99 x 6.6 x 3.68mm

Length

22.99mm

Pulse Width Modulation

2 (16 bit)

Height

3.68mm

ADCs

8 x 10 bit

Maximum Number of Ethernet Channels

0

Program Memory Type

Flash

Width

6.6mm

Minimum Operating Temperature

-40 °C

Number of LIN Channels

0

Number of ADC Units

1

Maximum Operating Temperature

+85 °C

The dsPIC30F Digital Signal Controllers provides the performance of a DSP and simplicity of an MCU. Well suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for the designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate motor control peripherals, SMPS peripherals and a Codec interface that enable advanced motor control algorithms, efficient digital power converters and speech & audio applications. Small package DSCs with high performance ADC are best suited for smart sensing applications.

RISC Instruction Set Architecture
Operating Temperature Range: -40 to +85 °C
