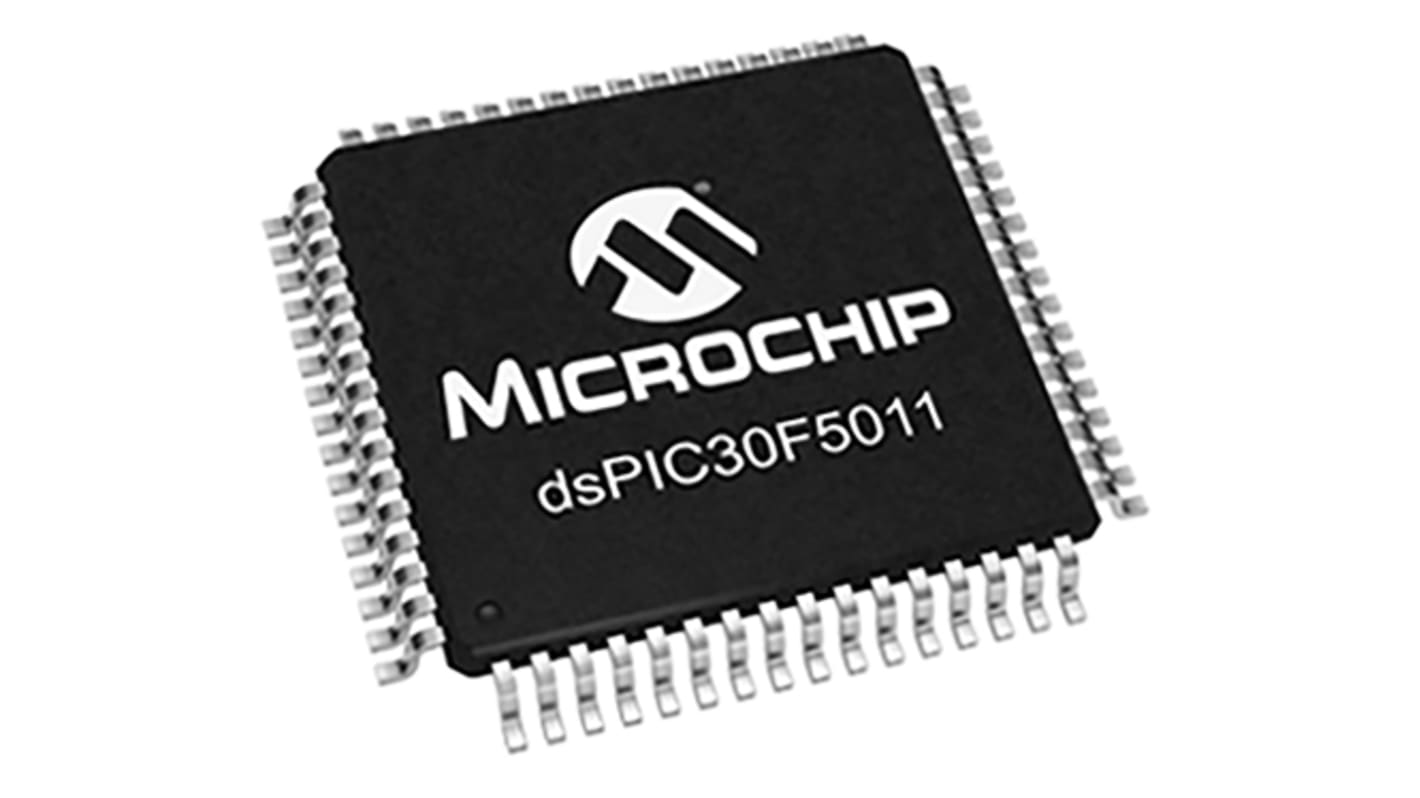

Microchip, 16bit dsPIC, dsPIC30F Microcontroller, 25MHz, 66 kB Flash, 64-Pin TQFP

RS Stock No.:: 178-5222
Mfr. Part No.:: DSPIC30F5011-30I/PT
Brand:: Microchip

Microchip, 16bit dsPIC, dsPIC30F Microcontroller, 25MHz, 66 kB Flash, 64-Pin TQFP

Subtotal (1 tray of 160 units)*

£1,110.40

(exc. VAT)

£1,332.80

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

160 unit(s) shipping from 14 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tray*
160 +	£6.94	£1,110.40

*price indicative

RS Stock No.:: 178-5222
Mfr. Part No.:: DSPIC30F5011-30I/PT
Brand:: Microchip

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Microchip
	Family Name	dsPIC30F
	Package Type	TQFP
	Mounting Type	Surface Mount
	Pin Count	64
	Device Core	dsPIC
	Data Bus Width	16bit
	Program Memory Size	66 kB
	Maximum Frequency	25MHz
	RAM Size	4.096 kB
	USB Channels	0
	Number of PWM Units	8 x 16 bit
	Number of SPI Channels	2
	Number of USART Channels	0
	Number of CAN Channels	2
	Typical Operating Supply Voltage	2.5 → 5.5 V
	Number of UART Channels	2
	Number of I2C Channels	1
	Number of ADC Units	1
	ADCs	16 x 12 bit
	Maximum Number of Ethernet Channels	0
	Program Memory Type	Flash
	Maximum Operating Temperature	+85 °C
	Instruction Set Architecture	RISC
	Minimum Operating Temperature	-40 °C
	Number of Ethernet Channels	0
	Number of PCI Channels	0
	Length	10mm
	Number of LIN Channels	0
	Width	10mm
	Dimensions	10 x 10 x 1.2mm
	Pulse Width Modulation	8 x 16 bit
	Height	1.2mm

	Select all
	Brand Microchip
	Family Name dsPIC30F
	Package Type TQFP
	Mounting Type Surface Mount
	Pin Count 64
	Device Core dsPIC
	Data Bus Width 16bit
	Program Memory Size 66 kB
	Maximum Frequency 25MHz
	RAM Size 4.096 kB
	USB Channels 0
	Number of PWM Units 8 x 16 bit
	Number of SPI Channels 2
	Number of USART Channels 0
	Number of CAN Channels 2
	Typical Operating Supply Voltage 2.5 → 5.5 V
	Number of UART Channels 2
	Number of I2C Channels 1
	Number of ADC Units 1
	ADCs 16 x 12 bit
	Maximum Number of Ethernet Channels 0
	Program Memory Type Flash
	Maximum Operating Temperature +85 °C
	Instruction Set Architecture RISC
	Minimum Operating Temperature -40 °C
	Number of Ethernet Channels 0
	Number of PCI Channels 0
	Length 10mm
	Number of LIN Channels 0
	Width 10mm
	Dimensions 10 x 10 x 1.2mm
	Pulse Width Modulation 8 x 16 bit
	Height 1.2mm

Datasheet

dsPIC30F5011/5013 16-Bit Digital Signal Controllers

Microchip’s dsPIC30F family of Digital Signal Controllers (DSCs) offer designers DSP like performance with the simplicity of an MCU. The dsPIC30F5011/5013 devices are general purpose DSCs that feature peripherals suitable for a variety of different applications.

CPU Features

30 MIPS Max. CPU Speed
Modified Harvard architecture
C compiler optimized instruction set architecture
83 base instructions with flexible addressing modes
24-bit wide instructions, 16-bit wide data path
66 Kbytes on-chip Flash program space
4 Kbytes of on-chip data RAM
1 Kbyte of non-volatile data EEPROM
16 x 16-bit working register array
Up to 41 interrupt sources

DSP Engine Features

Modulo and Bit-Reversed modes
Two 40-bit wide accumulators with optional saturation logic
17-bit x 17-bit single-cycle hardware fractional/integer multiplier
All DSP instructions are single cycle - Multiply-Accumulate (MAC) operation
Single cycle ±16 shift Dual data fetch

Peripheral Features

High-current sink/source I/O pins: 25 mA/25 mA
Five 16-bit timers/counters – option to pair up 16-bit timers into 32-bit timer modules
One 16-bit Capture input functions
Two 16-bit Compare/PWM output functions
Data Converter Interface (DCI) supports common audio codec protocols, including I2S and AC’97
PWM generators with 8 outputs
12-Bit 200 ksps Analogue-to-Digital Converter (ADC) – 16 Channels
3-wire SPI modules
I2CTM module
Two UART Modules
Two CAN bus Modules
