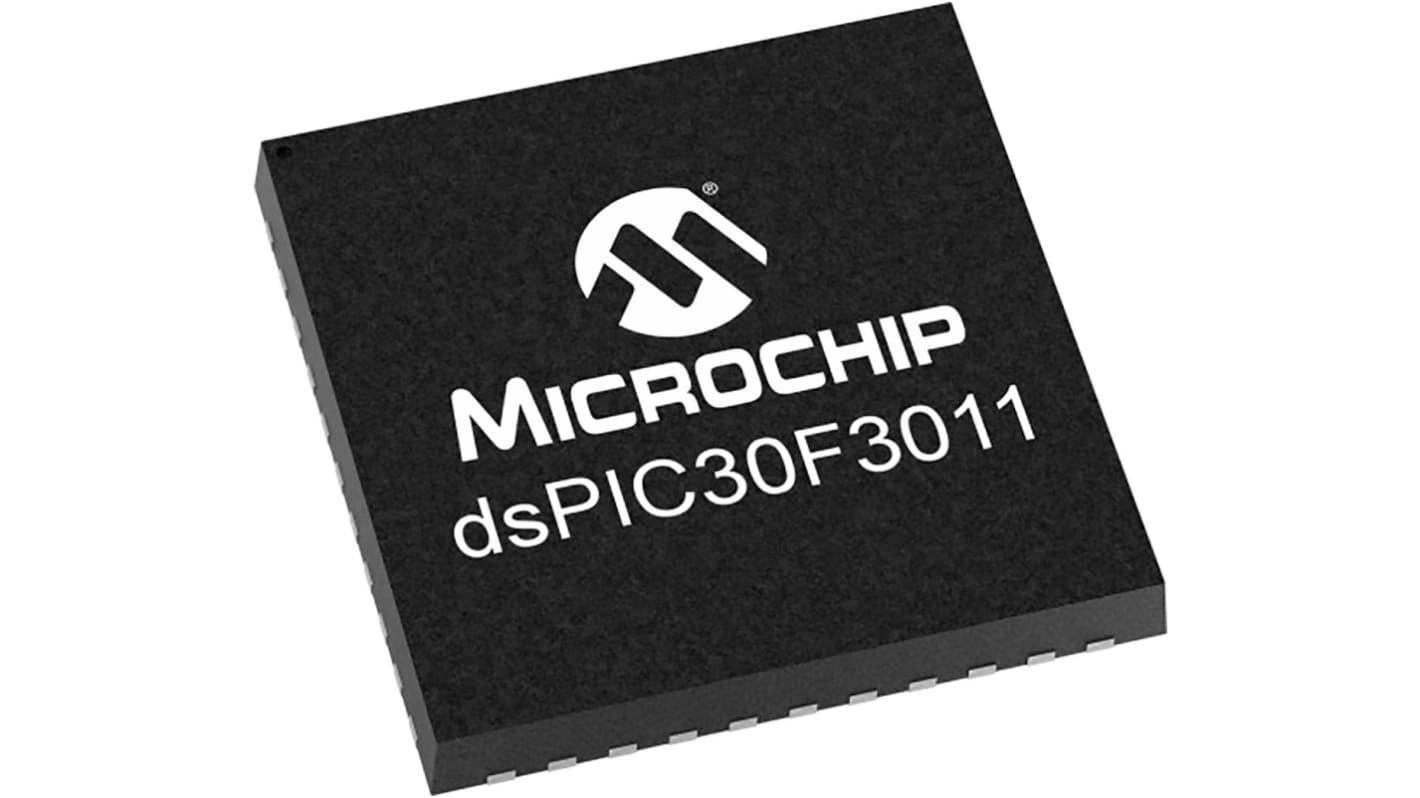

Microchip, 16bit dsPIC, dsPIC30F Microcontroller, 25MHz, 24 kB Flash, 40-Pin PDIP

View all Microcontrollers

Subtotal (1 tube of 10 units)*

£41.40

(exc. VAT)

£49.70

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 180 unit(s), ready to ship
Units
Per unit
Per Tube*
10 +£4.14£41.40

*price indicative

RS Stock No.:
197-6086
Mfr. Part No.:
DSPIC30F3011-30I/P
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

dsPIC30F

Package Type

PDIP

Mounting Type

Through Hole

Pin Count

40

Device Core

dsPIC

Data Bus Width

16bit

Program Memory Size

24 kB

Maximum Frequency

25MHz

RAM Size

1 kB

USB Channels

0

Number of PWM Units

2 x 16 bit

Number of SPI Channels

1

Number of CAN Channels

0

Number of UART Channels

2

Number of I2C Channels

1

Typical Operating Supply Voltage

2.5 → 5.5 V

Number of USART Channels

0

Height

4.44mm

Length

52.57mm

Number of LIN Channels

0

Minimum Operating Temperature

-40 °C

Number of ADC Units

1

Maximum Number of Ethernet Channels

0

Maximum Operating Temperature

+85 °C

Number of Ethernet Channels

0

Number of PCI Channels

0

Instruction Set Architecture

RISC

ADCs

9 x 10 bit

Program Memory Type

Flash

Dimensions

52.57 x 13.97 x 4.44mm

Width

13.97mm

Pulse Width Modulation

1 (6 Channel) (Motor Control), 2 (16 bit)

The dsPIC30F Digital Signal Controllers provides the performance of a DSP and simplicity of an MCU. Well suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for the designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate motor control peripherals, SMPS peripherals and a Codec interface that enable advanced motor control algorithms, efficient digital power converters and speech & audio applications. Small package DSCs with high performance ADC are best suited for smart sensing applications.

RISC Instruction Set Architecture
Operating Temperature Range: -40 to +85 °C
