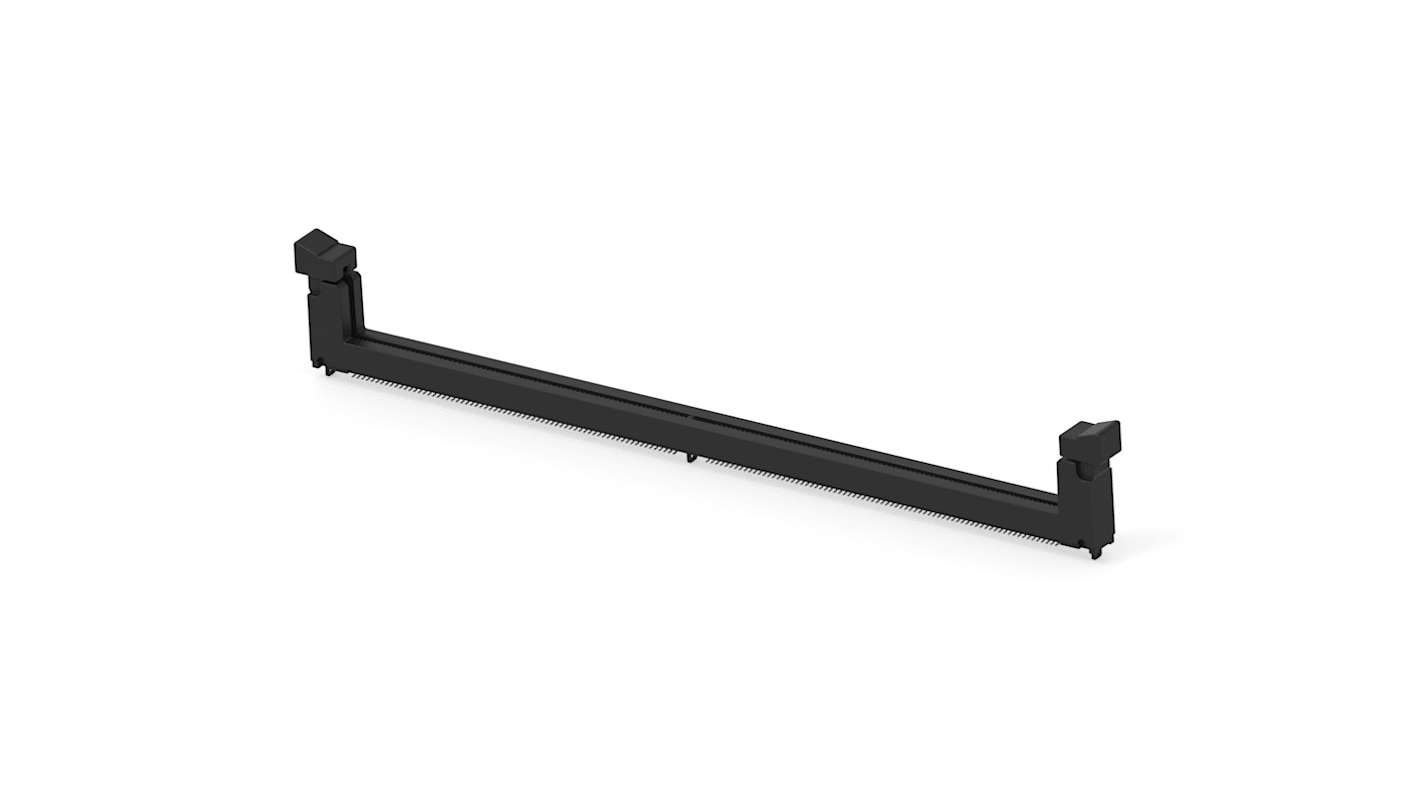

TE Connectivity 288 Way Vertical Push Pull Memory Card Memory Card Connector, PCB
- RS Stock No.:
- 260-8635
- Mfr. Part No.:
- 2-2355626-1
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 260-8635
- Mfr. Part No.:
- 2-2355626-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Memory Card Connector | |
| Card Type | Memory Card | |
| Gender | Female | |
| Insertion/Removal Method | Push Pull | |
| Number of Contacts | 288 | |
| Number of Rows | 2 | |
| Pitch | 0.85mm | |
| Orientation | Vertical | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Housing Material | Nylon | |
| Termination Type | PCB | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL 94V-0 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Memory Card Connector | ||
Card Type Memory Card | ||
Gender Female | ||
Insertion/Removal Method Push Pull | ||
Number of Contacts 288 | ||
Number of Rows 2 | ||
Pitch 0.85mm | ||
Orientation Vertical | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Housing Material Nylon | ||
Termination Type PCB | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL 94V-0 | ||
- COO (Country of Origin):
- CN
The TE Connectivity DDR5 DIMM socket is the next generation offering of memory hardware designed for high performance computing and server platforms. It deliver on performance while maintaining the quality and robustness expect by the end user.
Capable of higher data rates
Supporting up to 6.4 GT/S
Narrow latch types and space saving
Better coplanarity and easy to install
