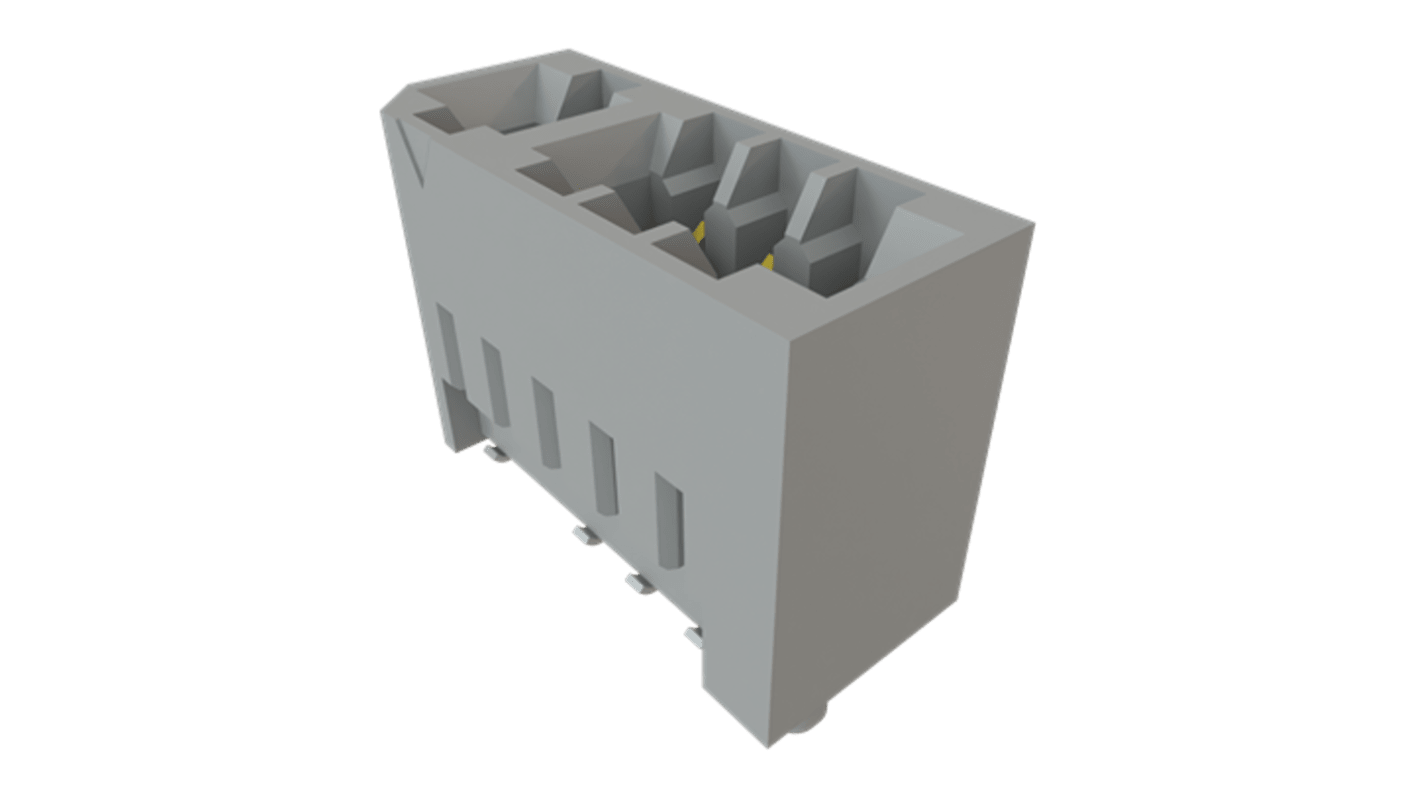

Samtec, MEC2 10 Way Vertical Push Pull Mini Edge Card Memory Card Connector, Vertical Surface Mount
- RS Stock No.:
- 644-359
- Mfr. Part No.:
- MEC2-05-01-L-DV
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£3.48
(exc. VAT)
£4.18
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 20 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.48 |
| 10 - 24 | £3.20 |
| 25 + | £2.82 |
*price indicative
- RS Stock No.:
- 644-359
- Mfr. Part No.:
- MEC2-05-01-L-DV
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Memory Card Connector | |
| Card Type | Mini Edge Card | |
| Insertion/Removal Method | Push Pull | |
| Gender | Female | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Pitch | 0.80mm | |
| Orientation | Vertical | |
| Mount Type | Through Hole, Surface | |
| Contact Material | Phosphor Bronze, Beryllium Copper Alloy | |
| Contact Plating | Tin, Gold | |
| Housing Material | Black LCP, Liquid Crystal Polymer | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Vertical Surface Mount | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | PCI Express 4.0 | |
| Series | MEC2 | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Memory Card Connector | ||
Card Type Mini Edge Card | ||
Insertion/Removal Method Push Pull | ||
Gender Female | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Pitch 0.80mm | ||
Orientation Vertical | ||
Mount Type Through Hole, Surface | ||
Contact Material Phosphor Bronze, Beryllium Copper Alloy | ||
Contact Plating Tin, Gold | ||
Housing Material Black LCP, Liquid Crystal Polymer | ||
Minimum Operating Temperature -55°C | ||
Termination Type Vertical Surface Mount | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals PCI Express 4.0 | ||
Series MEC2 | ||
The Samtec Micro pitch edge card connector system designed for ultra-dense applications requiring speeds up to 56 Gbps PAM4. Its features Edge Rate contacts, ensuring optimal signal integrity and high-cycle life. It is available in vertical and right-angle orientations, with options for surface-mount and through-hole terminations, providing flexibility for diverse design requirements.
RoHS compliant
Vertical and right-angle with edge mount orientations
Available in surface mount and through-hole
