Eaton xEffect MCB, 1P, 20A Curve C, 240 → 415V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 922-6914
- Mfr. Part No.:
- 102091 FAZ-C20/1-NA
- Brand:
- Eaton
Subtotal (1 unit)*
£31.19
(exc. VAT)
£37.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.19 |
*price indicative
- RS Stock No.:
- 922-6914
- Mfr. Part No.:
- 102091 FAZ-C20/1-NA
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Current Rating | 20A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 240 → 415V | |
| Rated DC Voltage | 48V | |
| Breaking Capacity at Maximum Voltage Rating | 10 kA | |
| Range | xEffect | |
| Circuit Breaker Type | MCB | |
| Width | 17.7mm | |
| Length | 75.5mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 105mm | |
| Tripping Mechanism | Thermal-Magnetic | |
| Reset Actuator Type | Toggle Switch | |
| Terminal Contact Type | Screw | |
| Break Time | Instantaneous | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 20A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 240 → 415V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Width 17.7mm | ||
Length 75.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 105mm | ||
Tripping Mechanism Thermal-Magnetic | ||
Reset Actuator Type Toggle Switch | ||
Terminal Contact Type Screw | ||
Break Time Instantaneous | ||

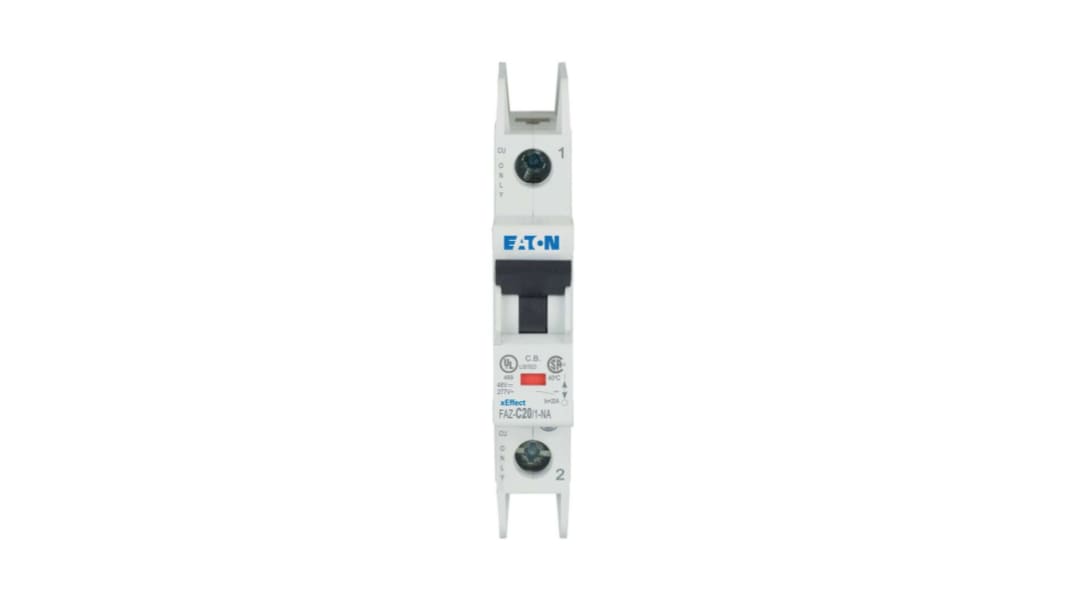

Eaton MCB, Thermal-Magnetic Tripping Mechanism, DIN Rail Mounting - xEffect Series - 102091 FAZ-C20/1-NA
For essential electrical protection, turn to this MCB from Eaton. It stops short circuits and current overloads in their tracks using a thermal-magnetic tripping mechanism. Instantaneous breaking means no time is wasted in breaking the circuit. This unit's type-C tripping characteristics make it a good fit for commercial lighting systems, as it trips at five to ten times its 20A rated current. For an added safety boost, this MCB's IP20 rating assures you it's fingerproof.
Features & Benefits
• Single-pole design has dimensions of just 75.5 (H) x 17.7 (W) x 105mm (D) to fit into compact circuit boards
• Weighs just 121g for minimal strain on your system
• Stands up to heavy loads with a rated voltage of 240 to 415V AC
• Front-facing toggle switch gives a clear visual indicator of contact position
• Weighs just 121g for minimal strain on your system
• Stands up to heavy loads with a rated voltage of 240 to 415V AC
• Front-facing toggle switch gives a clear visual indicator of contact position
Where should I mount this MCB?
The circuit breaker is easy to install thanks to a clip-on, space-saving design that fits directly onto your DIN rail.
What conditions can I use this unit in?
A broad operating temperature range between -25°C and +75°C means the circuit breaker is suitable for use in harsh industrial conditions.
Note
Eaton formerly known as Moeller
