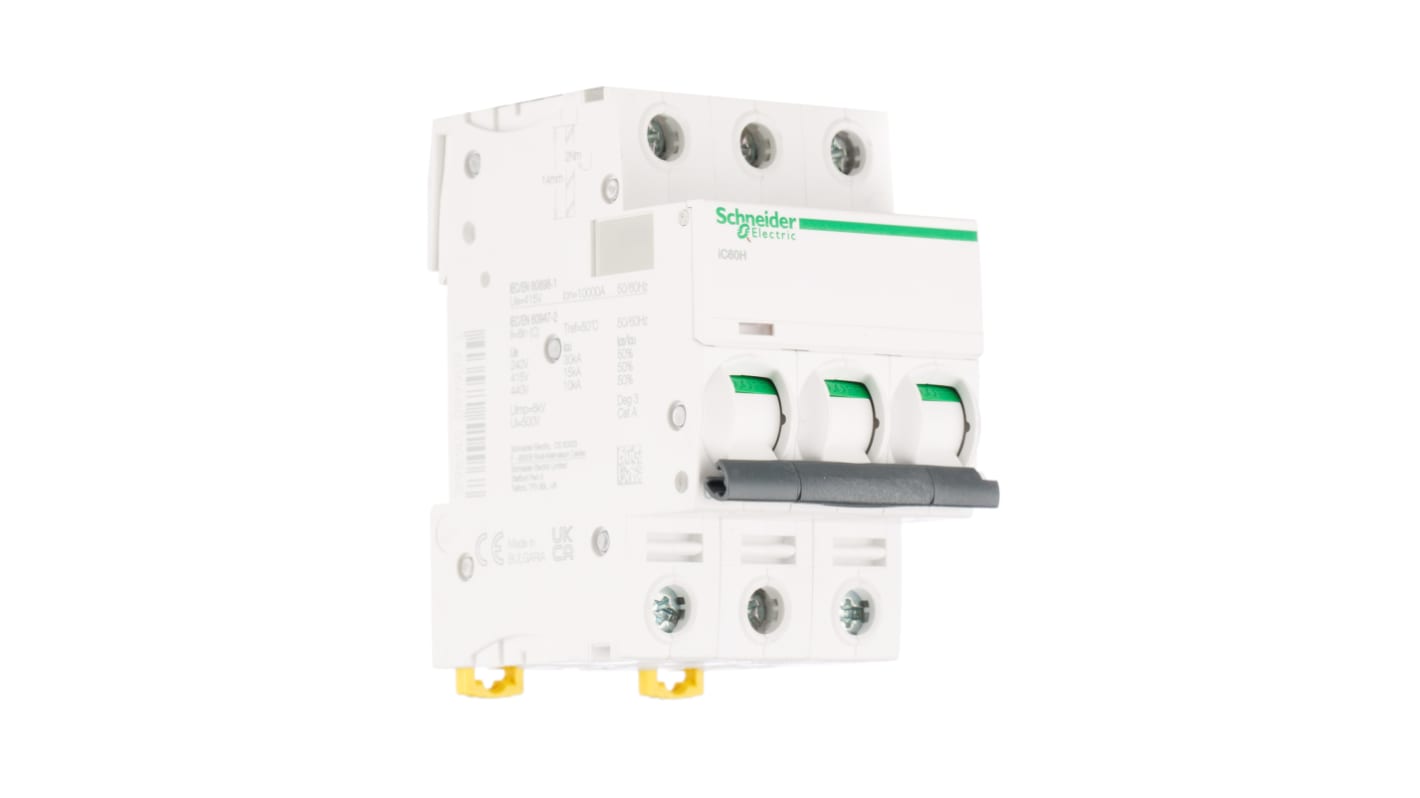

Schneider Electric Acti9 iC60H Miniature Circuit Breaker, 3-Pole, 20 A, Type D, 12 V, 133 V, 220 V, 240 V, 380 V, 415 V,

RS Stock No.:: 791-3562
Mfr. Part No.:: A9F55320
Brand:: Schneider Electric

Schneider Electric Acti9 iC60H Miniature Circuit Breaker, 3-Pole, 20 A, Type D, 12 V, 133 V, 220 V, 240 V, 380 V, 415 V,

Subtotal (1 unit)*

£113.61

(exc. VAT)

£136.33

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

42 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£113.61

*price indicative

RS Stock No.:: 791-3562
Mfr. Part No.:: A9F55320
Brand:: Schneider Electric

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Number of Poles	3
	Product Type	Miniature Circuit Breaker
	Current Rating	20 A
	Tripping Characteristics	Type D
	Rated AC Voltage	12 V, 133 V, 220 V, 240 V, 380 V, 415 V, 440 V
	Rated DC Voltage	133 V
	Breaking Capacity	10kA
	Mount Type	DIN Rail
	Range	Acti9
	Series	iC60H
	Terminal Type	Screw
	IP Rating	IP20
	Width	54 mm
	Height	85mm
	Depth	78.5mm
	Standards/Approvals	REACH, RoHS
	Tripping Mechanism	Thermal Magnetic
	Reset Actuator Type	Rocker
	Break Time	Instantaneous

	Select all
	Brand Schneider Electric
	Number of Poles 3
	Product Type Miniature Circuit Breaker
	Current Rating 20 A
	Tripping Characteristics Type D
	Rated AC Voltage 12 V, 133 V, 220 V, 240 V, 380 V, 415 V, 440 V
	Rated DC Voltage 133 V
	Breaking Capacity 10kA
	Mount Type DIN Rail
	Range Acti9
	Series iC60H
	Terminal Type Screw
	IP Rating IP20
	Width 54 mm
	Height 85mm
	Depth 78.5mm
	Standards/Approvals REACH, RoHS
	Tripping Mechanism Thermal Magnetic
	Reset Actuator Type Rocker
	Break Time Instantaneous

COO (Country of Origin):: BG

Schneider Electric iC60H Series Acti 9 MCB, 3 Poles, 20A Current Rating - A9F55320

This miniature circuit breaker (MCB) from the Acti 9 range is designed for robust electrical protection. The 3P configuration allows for the protection of three phases, making it an essential component for various applications. With a rated current of 20A and a breaking capacity of up to 10kA at maximum voltage, this reliable device ensures an effective response in fault conditions. Its compact dimensions of 54mm width, 85mm height, and 78.5mm depth are optimised for DIN rail mounting, enhancing installation convenience.

Features & Benefits

• Thermal-magnetic technology provides dependable current protection

• Type D circuit breaker suitable for high inrush currents

• Clip-on design facilitates simple installation and maintenance

• Contact position indicator enhances user visibility and awareness

Applications

• Used in industrial electrical distribution systems

• Used for protecting motors and large equipment

• Suitable for commercial buildings requiring high performance

• Ideal for automation where reliable switching is essential

Can it handle different types of voltages?

Yes, it supports both AC and DC networks, with a rated AC voltage of up to 440V and a rated DC voltage of 100 to 133 V, making it highly versatile.

How does the clip-on design affect installation?

The clip-on design allows for easy mounting on DIN rails, which streamlines the installation process, saving time and effort in setup.

What is the maximum voltage this device can support?

The device can operate at a maximum AC voltage of 440V, ensuring it can handle significant electrical demands effectively.
