Schneider Electric Multi9 Multi9 Miniature Circuit Breaker, 1-Pole, 5A, Type D, 60 V dc DC, 10 kA Breaking Capacity

View all MCBs

Subtotal (1 unit)*

£32.40

(exc. VAT)

£38.88

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£32.40

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
211-2385
Mfr. Part No.:
M9F23105
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Number of Poles

1

Product Type

Miniature Circuit Breaker

Current Rating

5A

Tripping Characteristics

Type D

Rated DC Voltage

60V dc

Breaking Capacity

10kA

Mount Type

Clip-on

Range

Multi9

Series

Multi9

Terminal Type

Tunnel

IP Rating

IP20

Width

18mm

Depth

72mm

Height

81mm

Standards/Approvals

CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077

Better World Product

Yes

Reset Actuator Type

Toggle Switch

Tripping Mechanism

Thermal Magnetic

COO (Country of Origin):
FR

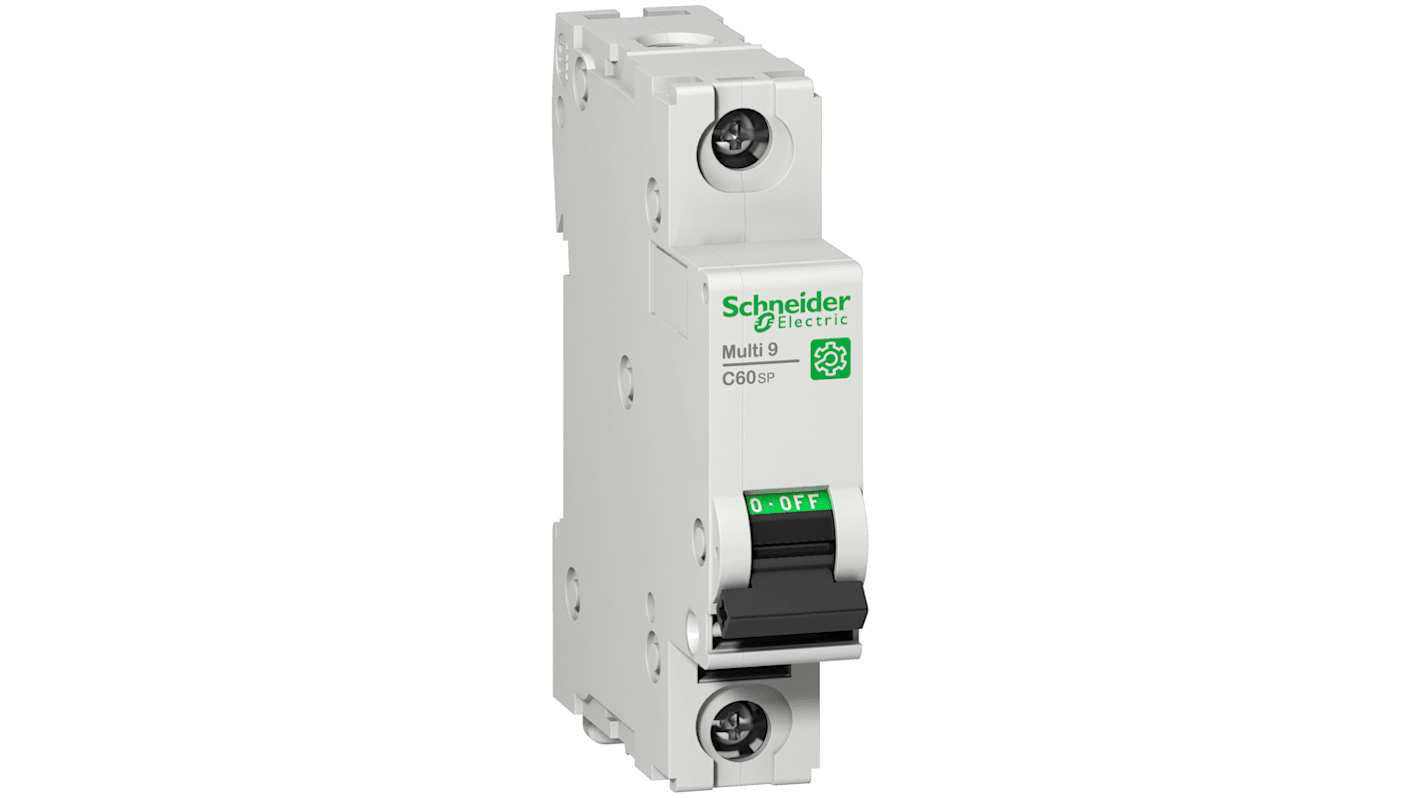

Schneider Electric C60SP Series MCB, 5A Current Rating, Type D - M9F23105


This miniature circuit breaker (MCB) is designed for residential electrical protection, offering reliable performance in distributing electrical power. The compact dimensions of 81mm (height), 18mm (width), and 72mm (depth) allow for easy installation on DIN rails without occupying excessive space. Rated at 5A with a Type D tripping characteristic, it provides essential short circuit protection for various applications.

Features & Benefits


• Thermal-magnetic technology offers dual protection during overload and short circuit

• Easy DIN rail mounting simplifies installation in electrical panels

• Toggle switch actuator allows for straightforward manual reset

• Tunnel terminals accommodate a range of wire sizes for versatile connections

Applications


• Used for protecting residential electrical circuits

• Ideal for distribution in automation and electrical systems

• Suitable for various commercial requiring circuit protection

• Applicable in environments with a temperature range of -30 to 70 °C

What is the significance of the thermal-magnetic trip unit technology?


The thermal-magnetic trip unit provides reliable protection by combining thermal sensitivity for overload conditions and magnetic sensitivity for rapid interruption during short circuits, ensuring safety in the electrical system.

How does the breaking capacity contribute to its performance in high-load situations?


With a breaking capacity of 20kA, it can effectively interrupt substantial fault currents, safeguarding circuits and preventing potential damage to connected devices.

What type of connections does this circuit breaker support?


It features tunnel-type terminals that accept rigid wires from 1 to 25 mm², as well as flexible wires up to 16 mm², facilitating a reliable connection in various installation scenarios.

Is it possible to indicate the contact position?


Yes, it incorporates a contact position indicator, providing clear visual confirmation of the circuit status—either ON or OFF.

How can this circuit breaker enhance safety in domestic applications?


By offering short circuit protection and ensuring compliance with relevant standards, it significantly reduces the risk of electrical fires and equipment damage in residential settings.
