Schneider Electric Multi9 Multi9 Miniature Circuit Breaker, 1-Pole, 5A, Type Z, 60 V dc DC, 3 kA Breaking Capacity
- RS Stock No.:
- 211-2675
- Mfr. Part No.:
- M9F44105
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£38.23
(exc. VAT)
£45.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.23 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-2675
- Mfr. Part No.:
- M9F44105
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 5A | |
| Tripping Characteristics | Type Z | |
| Rated DC Voltage | 60V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 3kA | |
| Range | Multi9 | |
| Series | Multi9 | |
| Terminal Type | Tunnel | |
| IP Rating | IP20, IP40 | |
| Depth | 72mm | |
| Standards/Approvals | CSA C22.2 No 5, UL 489, GB 14048.2, EN/IEC 60947-2 | |
| Width | 18mm | |
| Height | 103mm | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 5A | ||
Tripping Characteristics Type Z | ||
Rated DC Voltage 60V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 3kA | ||
Range Multi9 | ||
Series Multi9 | ||
Terminal Type Tunnel | ||
IP Rating IP20, IP40 | ||
Depth 72mm | ||
Standards/Approvals CSA C22.2 No 5, UL 489, GB 14048.2, EN/IEC 60947-2 | ||
Width 18mm | ||
Height 103mm | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- COO (Country of Origin):
- FR

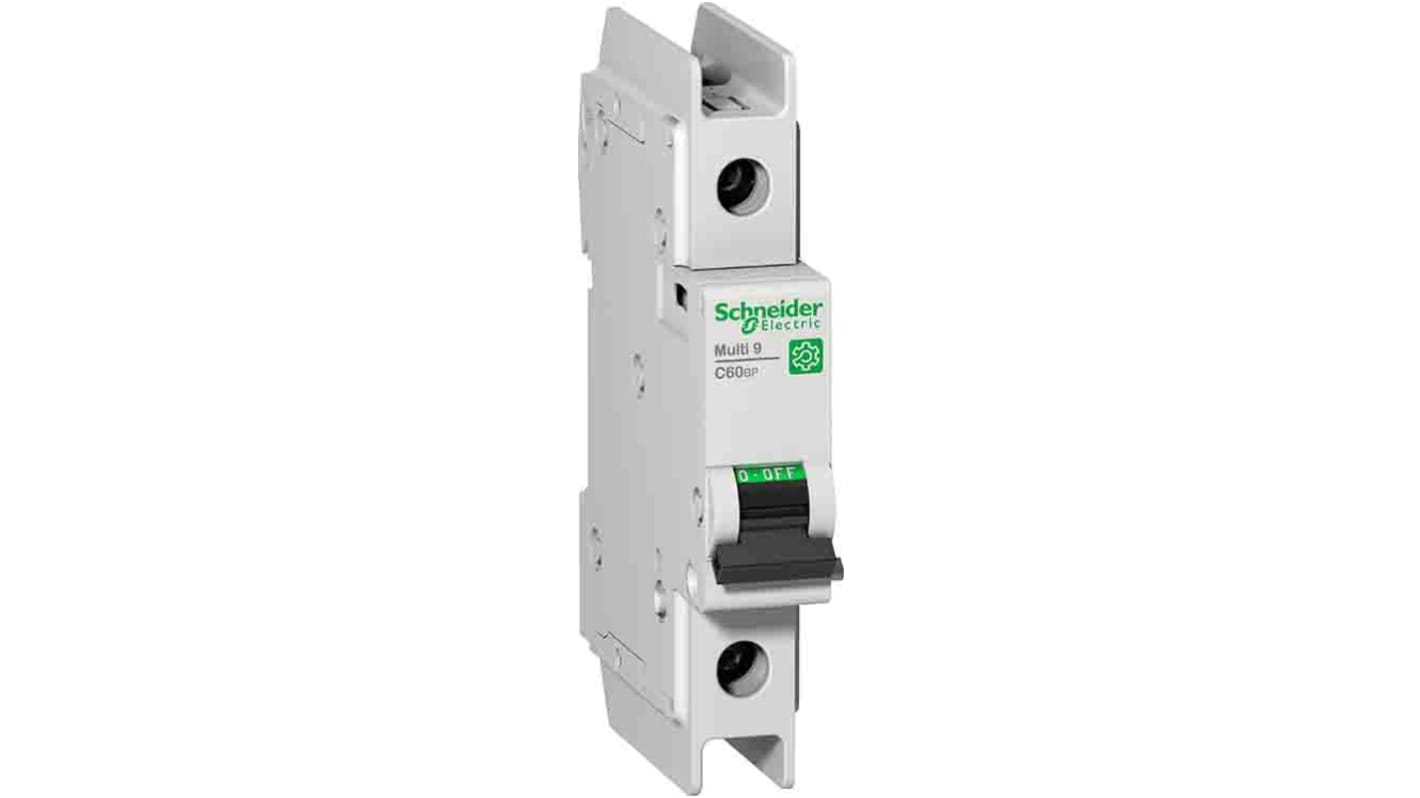

The Schneider Electric C60BP series Multi 9 Miniature circuit-breaker (MCB)- 1 Pole integrated with Thermal-magnetic tripping technology.
Green Premium product
IP degree of protection - IP20
DIN rail mounting support
