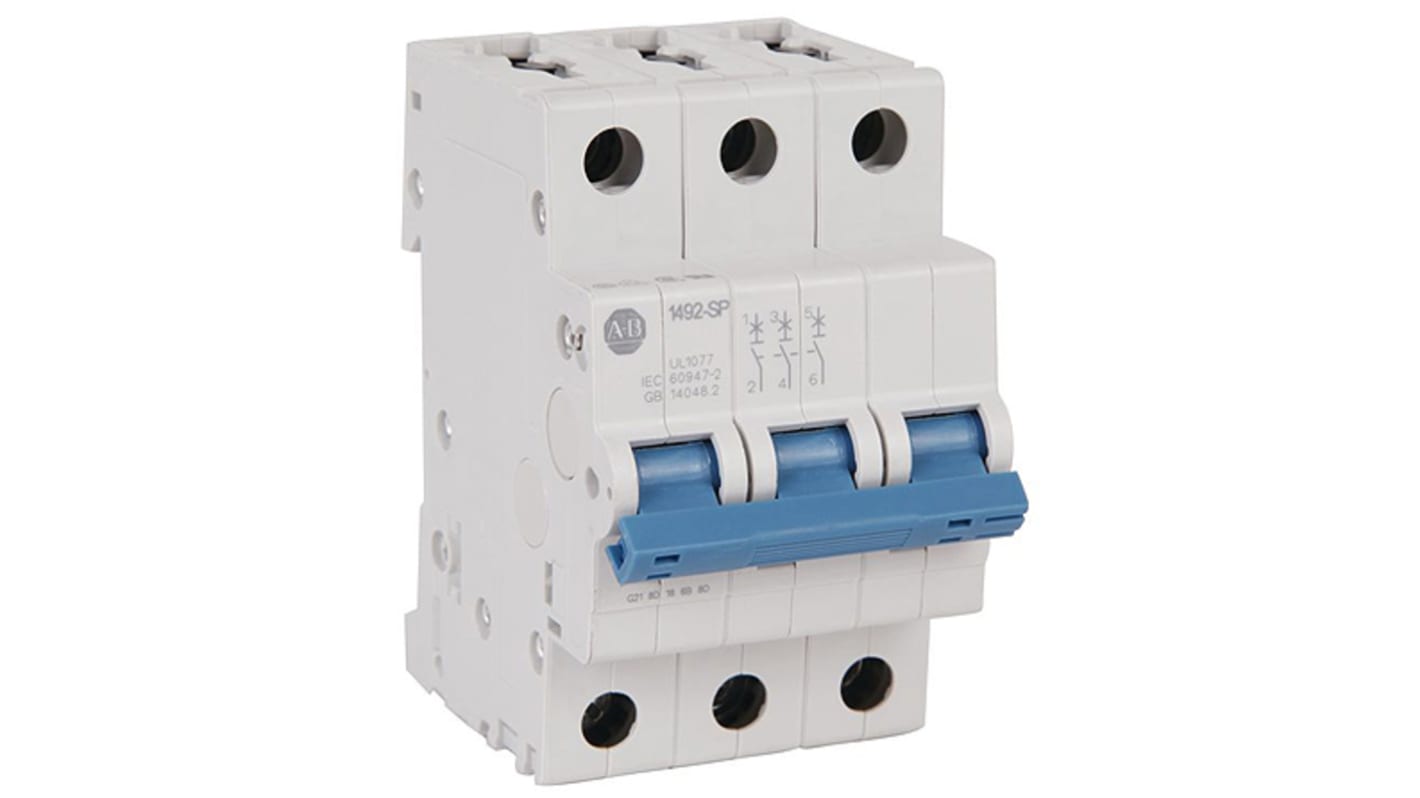

Allen Bradley 1492 1492-SPM MCB, 3P, 10A Curve C, 277V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 125-1485
- Mfr. Part No.:
- 1492-SPM3C100
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£61.08
(exc. VAT)
£73.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £61.08 |
*price indicative
- RS Stock No.:
- 125-1485
- Mfr. Part No.:
- 1492-SPM3C100
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 3 | |
Current Rating | 10A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 277 V, 480V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492 | |
Series | 1492-SPM | |
Circuit Breaker Type | MCB | |
Width | 75mm | |
Length | 53mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Break Time | Instantaneous | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Application | General Purpose | |
Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 3 | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 277 V, 480V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492 | ||
Series 1492-SPM | ||
Circuit Breaker Type MCB | ||
Width 75mm | ||
Length 53mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Break Time Instantaneous | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Application General Purpose | ||
Tripping Mechanism Thermal-Magnetic | ||
- COO (Country of Origin):
- BG
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C
Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.
These 1492-SPM MCBs have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.
Type C MCBs are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.
Features and Benefits:
• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley Mini Circuit Breaker, 10kA Breaking Capacity, 10A Current Rating - 1492-SPM3C100
Is your electrical supply prone to switching surges from high inductive loads? This miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range automatically detects overloads and switches the current off before short-circuit damage can occur. Its commonly wired to a wide range of devices such as washing machines, electric fans and transformers. Install the dual-channel switch to your DIN rail using the fast clip on the back of the unit for simple and convenient installation.
• Quickly identify the circuit status using the colour-coded indicator windows (red for closed/green for open) • Shock resistance to prevent damage when an accident such as dropping occurs• Vibration resistance for applications with constant fast movement• Product can be mounted in any position for flexibility in your setup• IP20 (ingress protection) rating indicates protection from electric shock when handling
Standards and Certifications
• UL (Underwriters' Laboratories)• CSA (Canadian Standards Association)• CE (Conformité Européenne)• VDE (Verband der Elektrotechnik)
Can this MCB withstand harsh industrial environments?
Yes, this unit operates from -40°C to +70°C so it's suitable for use in the extreme temperatures needed for some industrial processes.
