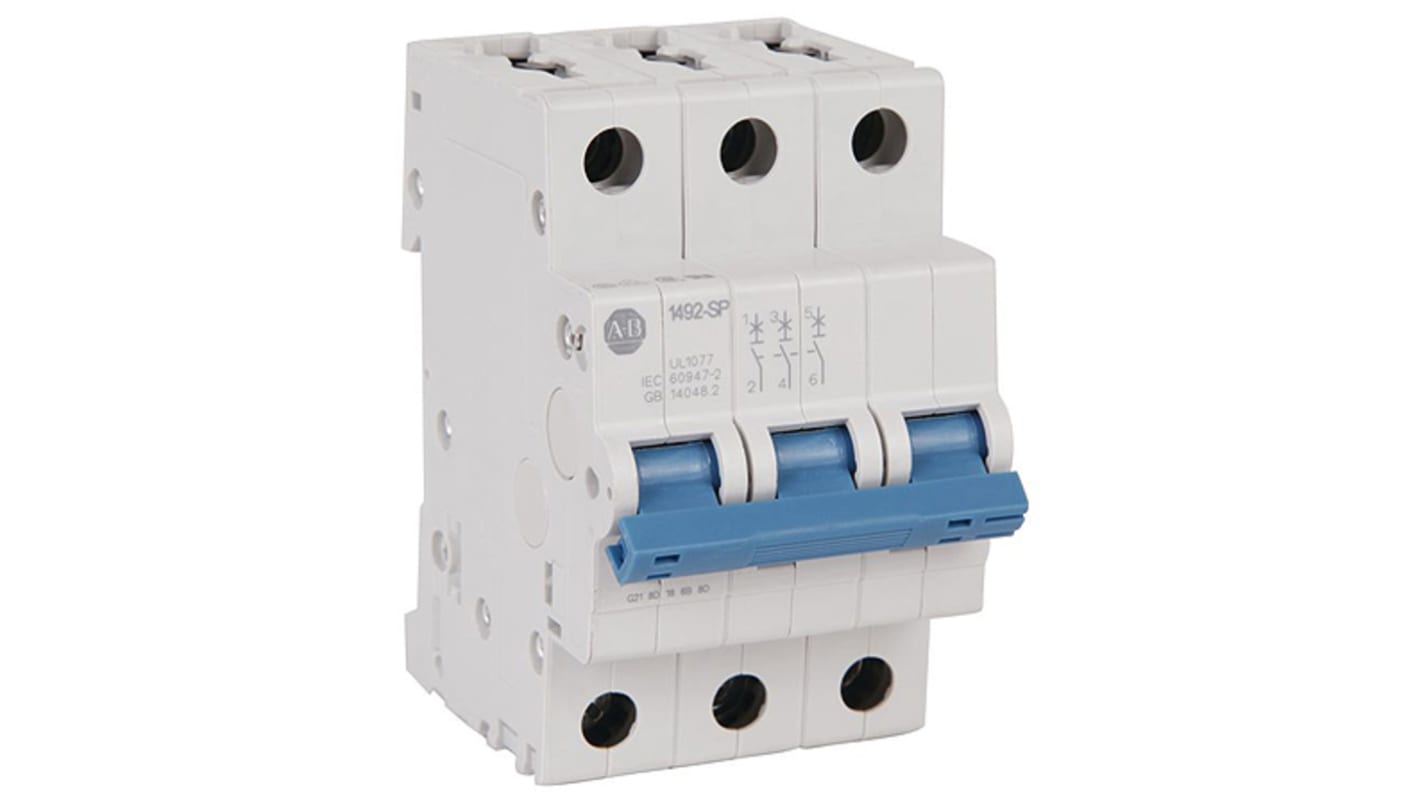

Allen Bradley 1492 1492-SPM MCB, 3P, 10A Curve D, 277V AC, 10 kA Breaking Capacity

Subtotal (1 unit)*

£62.52

(exc. VAT)

£75.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 6 unit(s) ready to ship
  • Plus 16 unit(s) shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£62.52

*price indicative

RS Stock No.:
125-1524
Mfr. Part No.:
1492-SPM3D100
Brand:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Number of Poles

3

Current Rating

10A

Tripping Characteristics

Type D

Rated AC Voltage

277 V, 480V

Breaking Capacity at Maximum Voltage Rating

10 kA

Range

1492

Series

1492-SPM

Circuit Breaker Type

MCB

Width

75mm

Length

53mm

Mounting Style

DIN Rail Mount

Depth

88mm

Break Time

Instantaneous

Terminal Contact Type

Screw

Reset Actuator Type

Toggle Switch

Application

General Purpose

Tripping Mechanism

Thermal-Magnetic

COO (Country of Origin):
BG

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D


Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

Features and Benefits:


• Instantaneous break time
• Can be DIN rail mounted for fast and simple installation
• Available in 1, 2 or 3 pole versions to meet your requirements
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Thermal-magnetic tripping mechanism
• Screw Terminals
• Environmentally friendly - RohS compliant and fully recyclable
• Usable even in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

Certifications:


UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:


UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley Miniature Circuit Breaker, 10kA Breaking Capacity, 10A Current Rating - 1492-SPM3D100


Safeguard your machinery against the harmful effects of overcurrent with this miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. The device snaps simply onto a DIN rail for quick and tool-free installation. Its instantaneous reaction to electrical surges helps prevent downtime and damage to equipment for improved workplace productivity. A compact size of 53 (L) x 75 (W) x 88mm (D) allows for maximum circuit board packing efficiency. You can mount accessories on the bottom of this MCB, which further saves on space.

• Resists vibration and impact, so is suitable for harsh operating environments
• Immune to nuisance tripping to avoid unnecessary downtime and improve efficiency
• Clear visibility of its contact state, thanks to an indicator window
• Dual terminals clip on either side to make a reliable connection

Standards and Certifications


• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Authority)
• CCC (Chinese Standards)
• CE (Conformitè Europëenne)
• VDE (Verband Deutscher Elektrotechniker)
• RoHS (Restriction of Hazardous Substances)

What tripping characteristics does this MCB have?


This is a type D MCB, which means it instantly trips at 10 to 20 times its rated current of 10A. Its fast reaction time is suitable for the protection of uninterrupted power supplies (UPS).
