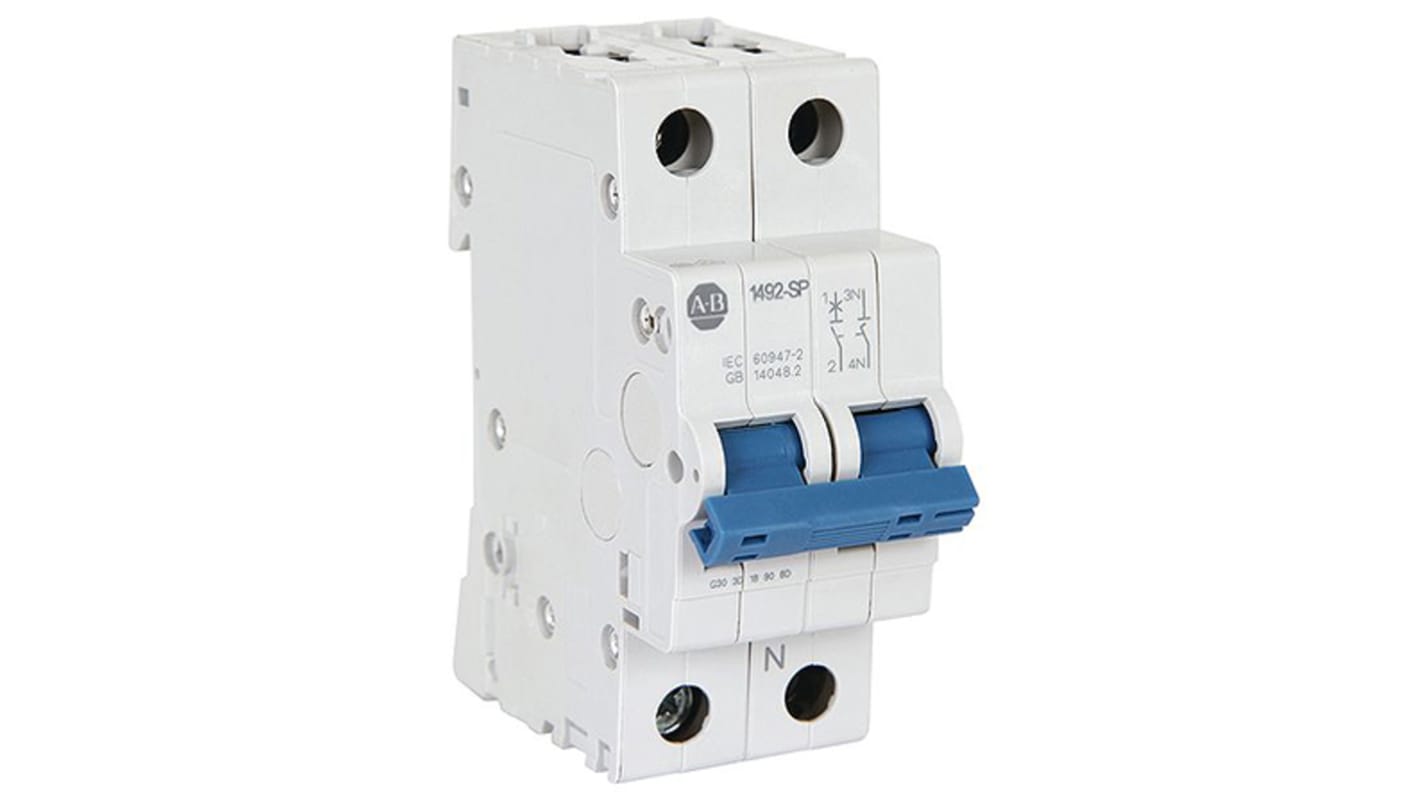

    Allen Bradley 1492 1492SPM MCB, 2P Poles, 10A Curve D, 277V AC, 96V DC, 10 kA Breaking Capacity

    RS Stock No.:
    125-1511
    Mfr. Part No.:
    1492-SPM2D100
    Brand:
    Allen Bradley
    Allen Bradley
    View all MCBs
    Available to back order for despatch 30/08/2022
    Add to Basket
    Units

    Added

    Price Each

    £37.06

    (exc. VAT)

    £44.47

    (inc. VAT)

    UnitsPer unit
    1 +£37.06

    Alternatives

    This product is not currently available. Here are our alternative recommendations.

    RS Stock No.:
    125-1511
    Mfr. Part No.:
    1492-SPM2D100
    Brand:
    Allen Bradley
    COO (Country of Origin):
    BG

    Legislation and Compliance

    COO (Country of Origin):
    BG

    Product Details

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D


    Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.


    These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.


    Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.


    Features and Benefits:


    • Instantaneous break time
    • Can be DIN rail mounted for fast and simple installation
    • Available in 1, 2 or 3 pole versions to meet your requirements
    • Clear visibility of contact state due to indicator window: red for closed, green for open
    • Thermal-magnetic tripping mechanism
    • Screw Terminals
    • Environmentally friendly - RohS compliant and fully recyclable
    • Usable even in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature


    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant


    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2


    Allen Bradley Miniature Circuit Breaker, 10kA Breaking Capacity, 10A Current Rating - 1492-SPM2D100


    Ensure electrical safety in your workspace with this miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. The protective device instantly breaks a circuit in the event of an overcurrent fault to protect operators against electric shocks and prevent damage to equipment. It's suitable to use with large winding motors, welding equipment and other applications that call for high inductive loads thanks to its 10A current rating. This product is fully recyclable for a lighter carbon footprint.


    • IP20 (ingress protection) rated enclosure that's protected against touch and objects larger than 12mm
    • Toggle switch allows for quick manual resetting
    • Compact dimensions of 35 (L) x 75 (W) x 88mm (D) to save space in your setup
    • Wide operating temperature range of -25°C to +55°C for use in harsh environments


    Standards and Certifications


    • UL (Underwriters' Laboratories)
    • CSA (Canadian Standards Authority)
    • CCC (Chinese Standards)
    • CE (Conformitè Europëenne)
    • VDE (Verband Deutscher Elektrotechniker)
    • RoHS (Restriction of Hazardous Substances)


    How do you know if the circuit breaker's contacts are open or closed?


    This MCB features a handy indicator window that shows its contact state. It's red when the contacts are closed and green when they're open.



    Allen Bradley MCBs


    Specifications

    AttributeValue
    Number of Poles2P
    Current Rating10A
    Tripping CharacteristicsType D
    Rated AC Voltage277 V, 480V
    Rated DC Voltage96V
    Range1492
    Series1492SPM
    Breaking Capacity at Maximum Voltage Rating10 kA
    Circuit Breaker TypeMCB
    Mounting StyleDIN Rail Mount
    Width75mm
    Length35mm
    Depth88mm
    Break TimeInstantaneous
    Terminal Contact TypeScrew
    ApplicationGeneral Purpose
    Tripping MechanismThermal-Magnetic
    Reset Actuator TypeToggle Switch
