The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.

The 1492-SPM series of MCB’s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB’s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.

A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB’s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.

• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

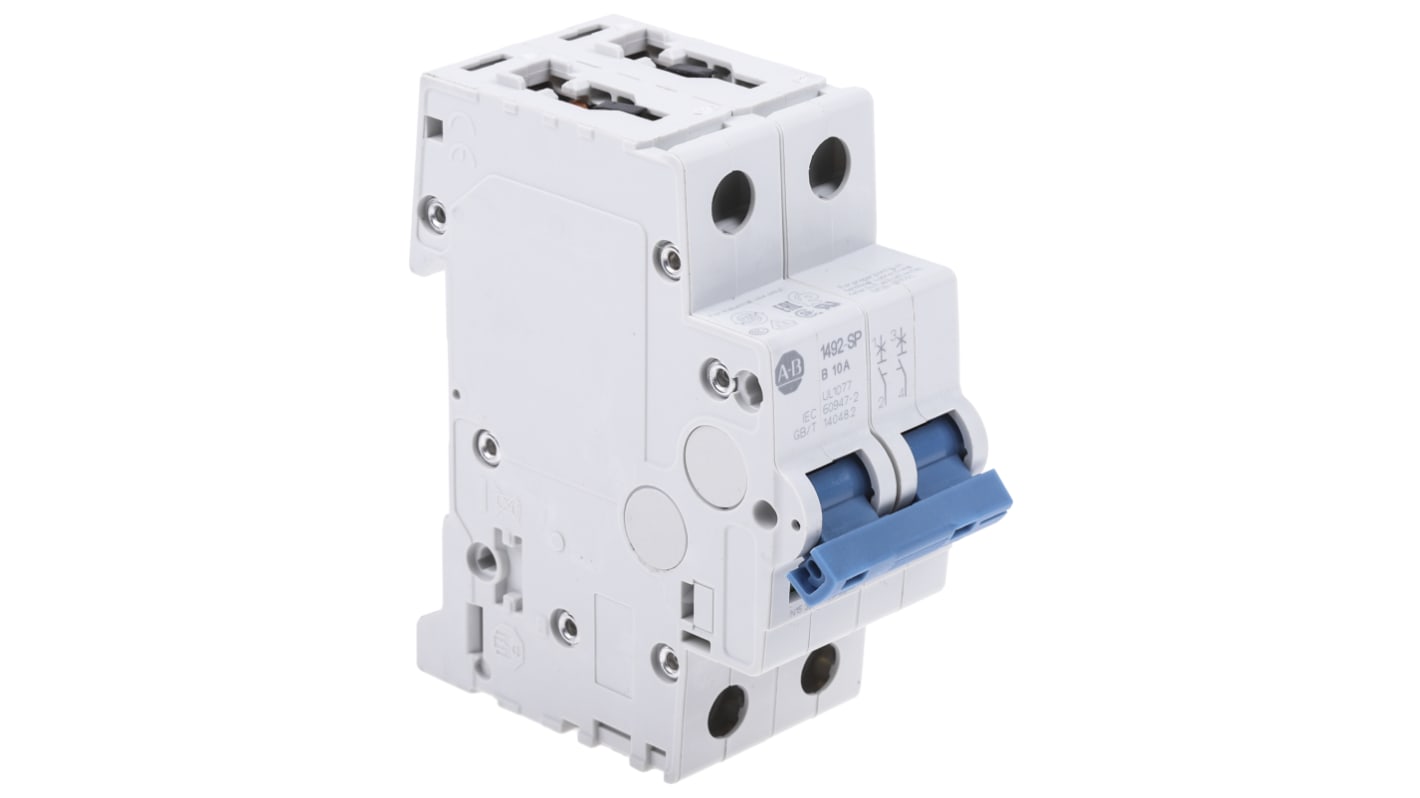

Keep your electrical equipment safe from circuit blowouts with this miniature circuit breaker from Rockwell Automation's Allen Bradley range. As a type B breaker, it trips at between three and five times the current it's rated to handle. This makes it ideal for resistive, non-inductive loads and low-power domestic applications, such as lighting circuits. The device has two switching terminals for dual-phase electrical systems, turning the current off when the maximum current rating of 10kA (kiloamps) is exceeded.

• Screw terminals ensure connections are electrically and physically secure
• IP20 (ingress protection) rating means the unit is touch-proof and resistant to dust or objects greater than 12mm in size
• Reliable mechanical endurance of 20,000 operations for longevity
• DIN rail mounting for simple installation and maintenance
• Indicator window showing red for ON and green for OFF makes fault-finding and status-checking easier

• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• CSA (Canadian Standards Association)
• VDE (Verband der Elektrotechnik)

This is a compact miniature circuit breaker with dimensions of 88 (D) x 75 (W) x 35mm (L).
