Switchcraft Jack Connector 3.5 mm Cable Male 1 Stereo, 4A Solder
- RS Stock No.:
- 724-9025
- Mfr. Part No.:
- 35HDRANN
- Brand:
- Switchcraft
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£10.82
(exc. VAT)
£12.98
(inc. VAT)
- RS Stock No.:
- 724-9025
- Mfr. Part No.:
- 35HDRANN
- Brand:
- Switchcraft
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Switchcraft | |
| Product Type | Jack Connector | |
| Size | 3.5 mm | |
| Current | 4A | |
| Mount Type | Cable | |
| Sub Type | Stereo | |
| Termination Type | Solder | |
| Number of Ways | 1 | |
| Orientation | Right Angle | |
| Connector Gender | Male | |
| Contact Plating | Nickel | |
| Housing Material | Brass | |
| Voltage | 250V dc | |
| Colour | Natural | |
| Contact Gender | Male | |
| Contact Material | Brass | |
| Standards/Approvals | No | |
| Series | 35 | |
| Select all | ||
|---|---|---|
Brand Switchcraft | ||
Product Type Jack Connector | ||
Size 3.5 mm | ||
Current 4A | ||
Mount Type Cable | ||
Sub Type Stereo | ||
Termination Type Solder | ||
Number of Ways 1 | ||
Orientation Right Angle | ||
Connector Gender Male | ||
Contact Plating Nickel | ||
Housing Material Brass | ||
Voltage 250V dc | ||
Colour Natural | ||
Contact Gender Male | ||
Contact Material Brass | ||
Standards/Approvals No | ||
Series 35 | ||

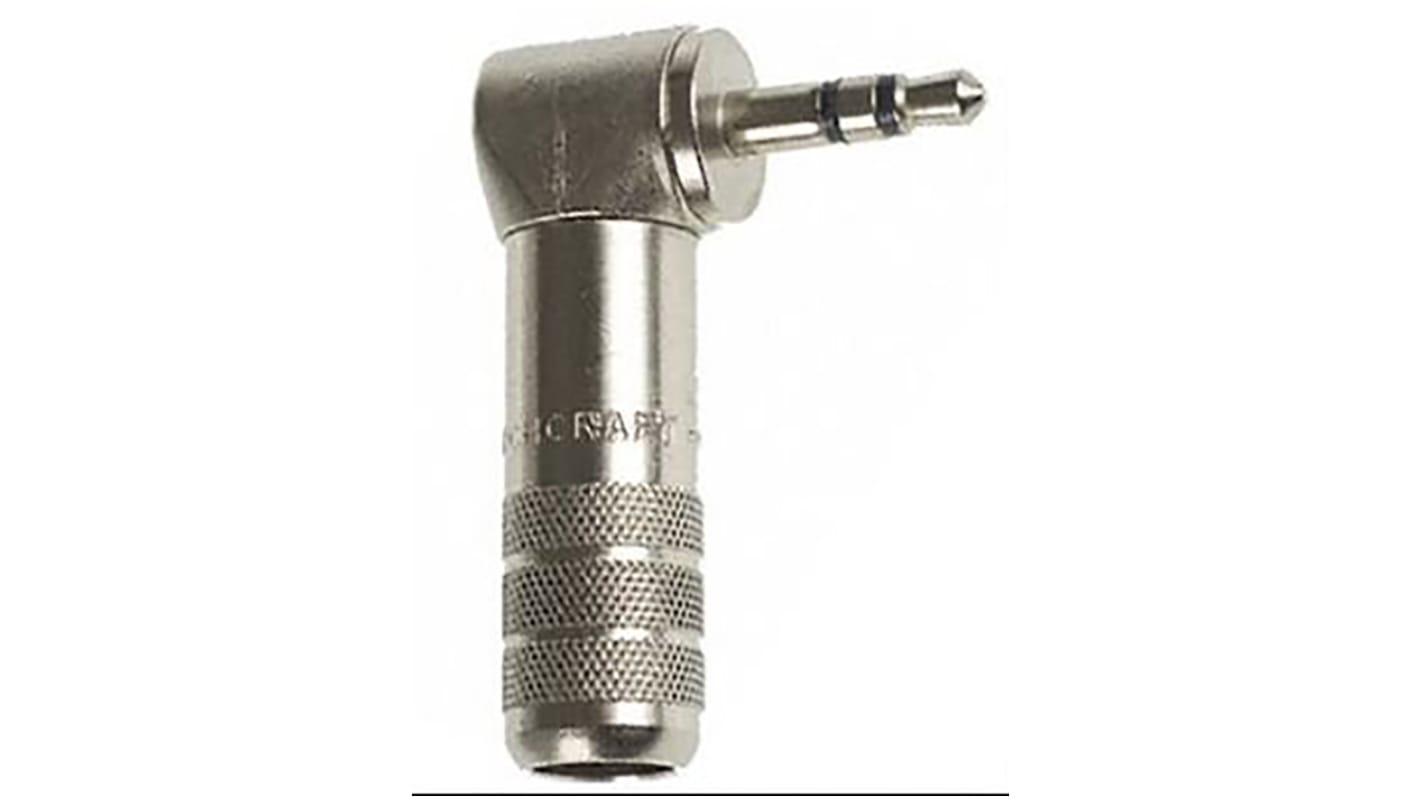

Switchcraft Stereo Plug
The Switchcraft 3.5mm stereo plug is a right angle heavy-duty jack with a male connection. This plug features a one-piece tip rod for added strength and reliability. With heavy-duty nickel handles and large solder terminals, this jack plug ensures a robust and reliable connection. It is available with either a nickel-plated or gold-plated plug finger. All the models are highly reliable and excellent quality.
Features and Benefits
Current carry at working voltage is 4A
Life of 5000 cycles
Working voltage is 250VAC/140VDC
Operating temperature ranging between 0°C and 66°C
