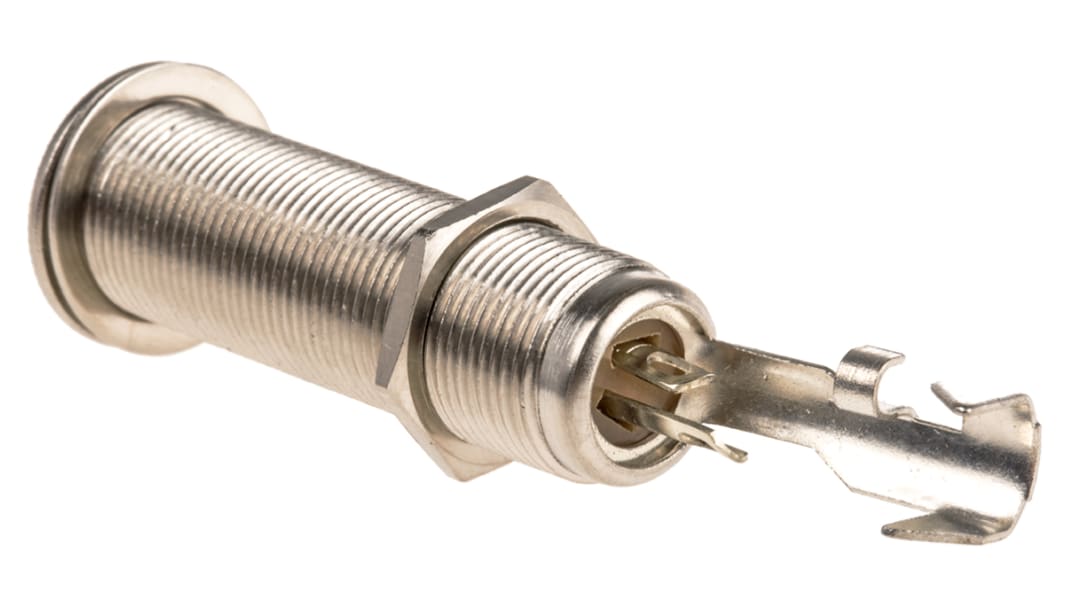

    Switchcraft Jack Connector 6.35 mm Panel Mount Stereo Socket, 3Pole

    RS Stock No.:
    705-1484
    Mfr. Part No.:
    152B
    Brand:
    Switchcraft
    Switchcraft
    View all Jack Plugs & Sockets
    123 In stock - FREE next working day delivery available
    32 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each

    £21.03

    (exc. VAT)

    £25.24

    (inc. VAT)

    UnitsPer unit
    1 - 14£21.03
    15 - 49£19.08
    50 +£17.50
    RS Stock No.:
    705-1484
    Mfr. Part No.:
    152B
    Brand:
    Switchcraft

    Technical Reference


    Legislation and Compliance


    Product Details

    1/4 in. Cable Mount Plugs and Sockets


    From Switchcraft, a selection of high performance, rugged jack plugs and sockets. These cable mount plugs and corresponding sockets are ideal for use with electronic instruments and amplifiers.

    The cable-mounted jack plugs comprise machined brass handles, with one piece tip rods, solder tags and heavy-duty cable clamps, ensuring reliable electrical continuity, shielding and secure strain relief. They also include high temperature insulators.

    The 2 and 3-pole high retention standard sockets mount into 3/8 in. holes in panels up to 5/32 in. thick. The 3-pole standard socket includes a double closed circuit in addition to the tip, ring and sleeve connections. While the 2-pole fully shielded long reach socket virtually eliminates hum pickup and is ideal for guitar or speaker connections. It allows for front mounting into a panel of up to 1 1/4 in. thick, through a 15/32 in. mounting hole. All models are highly reliable and excellent quality.


    The Switchcraft selection of Cable Mount Plugs and Sockets includes:


    205-5440 is a two pole standard panel mount socket
    208-3849 is a three pole standard panel mount socket
    218-0827 is a two pole cable mount jack plug
    218-0833 is a three pole cable mount jack plug
    298-8160 is a two pole long reach panel jack socket
    705-1484 is a three pole long reach panel jack socket
    878-2325 is a three pole long reach cable mount jack plug
    876-8684 is a two pole female cable mount jack socket
    876-8688 is a two pole female cable mount jack socket
    878-4728 is a two pole male cable mount jack plug
    878-4850 is a three pole male cable mount jack plug
    878-6910 is a three pole female cable mount jack socket



    Specifications

    AttributeValue
    GenderFemale
    Size6.35 mm
    Mounting TypePanel Mount
    TypeStereo
    Body OrientationStraight
    Termination MethodSolder
    Housing MaterialThermoplastic
    Contact MaterialCopper Alloy
    No of Poles/ Way3
