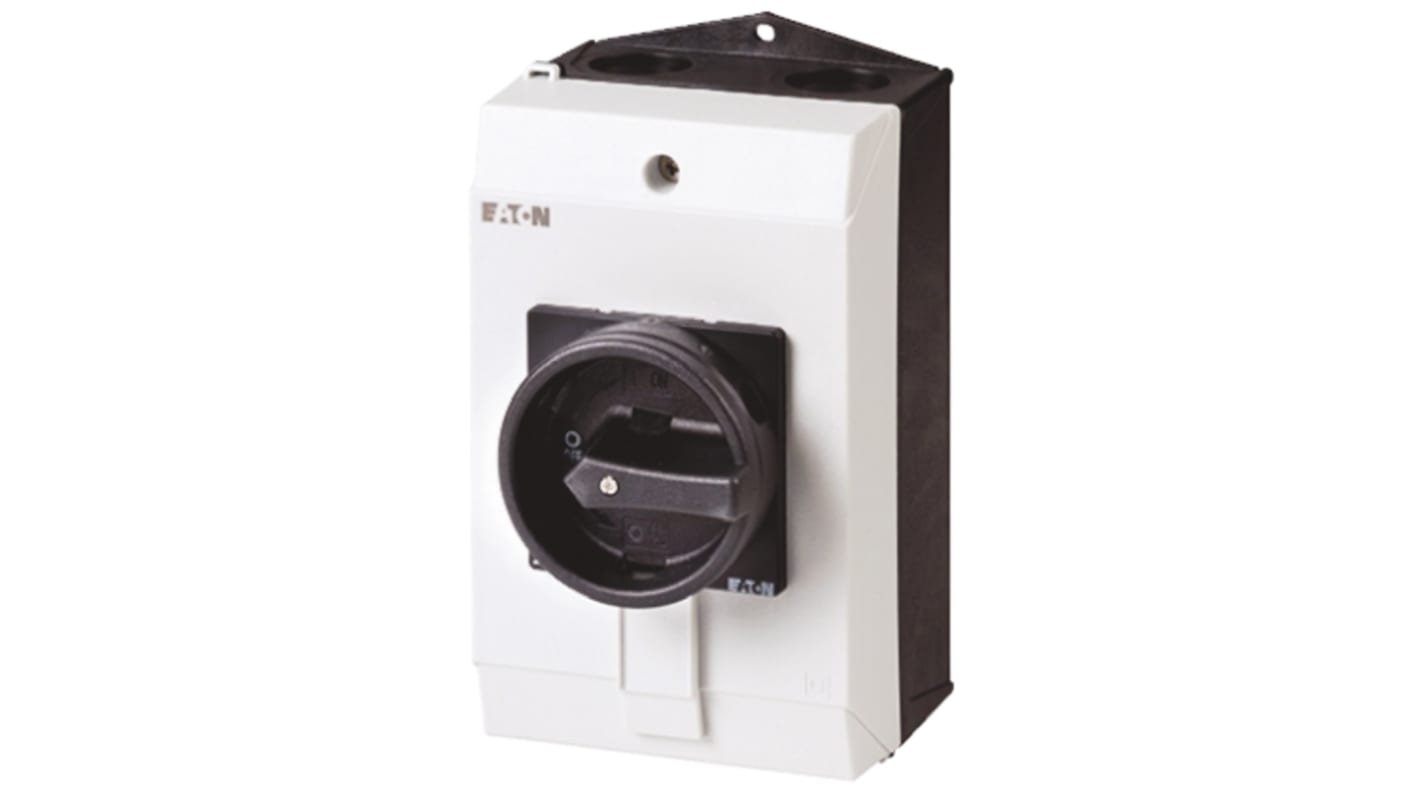

Eaton 3P Pole Isolator Switch - 63A Maximum Current, 50kW Power Rating, IP65
- RS Stock No.:
- 773-0657
- Mfr. Part No.:
- 207344 P3-63/I4/SVB-SW
- Brand:
- Eaton
2 In stock - FREE next working day delivery available
Added
Price Each
£116.54
(exc. VAT)
£139.85
(inc. VAT)
| Units | Per unit |
| 1 + | £116.54 |
- RS Stock No.:
- 773-0657
- Mfr. Part No.:
- 207344 P3-63/I4/SVB-SW
- Brand:
- Eaton
Technical Reference
Legislation and Compliance
Product Details
Eaton Enclosed Non-Fused Switch Disconnector – P1 Series
Eaton's isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.
Introducing the P1 range of enclosed switch disconnectors from Eaton. On these switches, the manual operator acts directly on the contacts, the contacts are positively opened on de-energisation. These switch disconnectors can be used as mains switches, maintenance switches and manual overrode switches.
Features & Benefits
• Thermoplastic enclosure
• Surface mounting
• Black rotary handle and locking ring
• Lockable in the 0 (Off) position
• IP65 ingress protection rating
• The perfect solution for installing as a safety measure
• Surface mounting
• Black rotary handle and locking ring
• Lockable in the 0 (Off) position
• IP65 ingress protection rating
• The perfect solution for installing as a safety measure
What is the difference between a fused switch disconnector and a non-fused switch disconnector?
Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.
Note
Eaton formerly known as Moeller
Specifications
Attribute | Value |
|---|---|
| Number of Poles | 3P |
| Maximum Current | 63A |
| IP Rating | IP65 |
| Power Rating | 50kW |
| Voltage Rating | 690V ac |
| Handle Colour | Black |
| Accepts Padlocks | Yes |
| Series | Eaton Moeller |
| Normal State Configuration | 3NO |
| Length | 240mm |
| Width | 160mm |
| Depth | 95mm |
| Throw Configuration | Single |
| Maximum Operating Temperature | +40°C |
| Terminal Type | Screw |
| Minimum Operating Temperature | -25°C |
