Eaton 3-Pole Surface Isolator Switch -, IP65, 640A, 5.5 kW

RS Stock No.:: 110-4488
Mfr. Part No.:: 182423 P3-63/I4/MBS/SVB/HI11
Brand:: Eaton

Eaton 3-Pole Surface Isolator Switch -, IP65, 640A, 5.5 kW

Subtotal (1 unit)*

£164.66

(exc. VAT)

£197.59

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£164.66

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 110-4488
Mfr. Part No.:: 182423 P3-63/I4/MBS/SVB/HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Surface
	IP Rating	IP65
	Electrical Phase	3
	Handle Colour	Yellow, Red
	Switching Current	640A
	Series	P3-63
	Auxiliary Contacts Available	Yes
	Terminal Type	Screw
	Padlock Compatibility	No
	Switching Power	5.5kW
	Minimum Operating Temperature	0°C
	Switching DC Voltage	60V dc
	Switching AC Voltage	230V ac
	Depth	240mm
	Standards/Approvals	UL, IEC, CSA
	Hazardous Area Certification	NO
	Width	141mm
	Length	160mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Surface
	IP Rating IP65
	Electrical Phase 3
	Handle Colour Yellow, Red
	Switching Current 640A
	Series P3-63
	Auxiliary Contacts Available Yes
	Terminal Type Screw
	Padlock Compatibility No
	Switching Power 5.5kW
	Minimum Operating Temperature 0°C
	Switching DC Voltage 60V dc
	Switching AC Voltage 230V ac
	Depth 240mm
	Standards/Approvals UL, IEC, CSA
	Hazardous Area Certification NO
	Width 141mm
	Length 160mm

COO (Country of Origin):: GB

Eaton Isolator Switch, 63A Maximum Current, 3 Poles - 182423 P3-63/I4/MBS/SVB/HI11

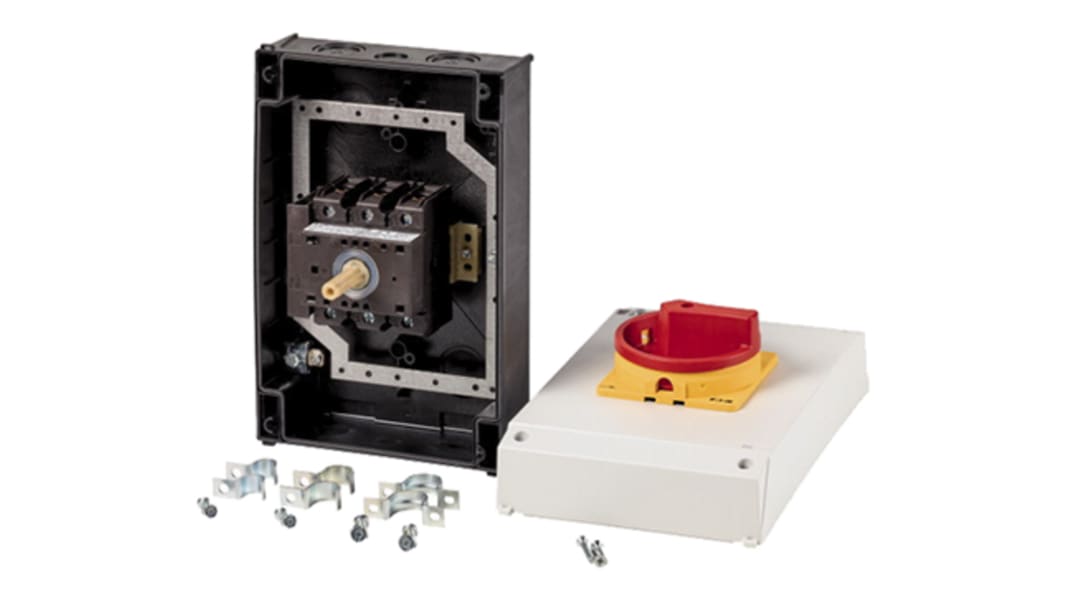

This isolator switch is a robust and effective electrical isolator designed for high-voltage applications. With dimensions of 139mm in length, 160mm in width, and 139mm in depth, this surface mount isolator switch is rated for a maximum current of 63A and a voltage of 690V. It is suitable for industrial switchgear environments, offering reliable performance under various conditions, and is built with an IP65 rating for dust and water resistance.

Features & Benefits

• Accepts padlocks for enhanced safety and security
• Double throw configuration for versatile operation
• Auxiliary contacts available for extended functionality
• High temperature tolerance (-25°C to +40°C) for various climates
• Screw Terminal type for secure connections

Applications

• Utilised in industrial automation for machinery control
• Ideal for motor isolation in electrical installations
• Can be fitted in commercial buildings for power management
• Suitable for use in environments requiring robust and secure switching

What safety features ensure the effective isolation of electrical circuits?

The switch incorporates a padlockable design, providing users with the Ability to secure it in the off position, reducing the risk of accidental re-energisation during maintenance.

How does the IP65 rating benefit this switch in industrial settings?

An IP65 rating ensures protection against dust ingress and low-pressure water jets, making it suitable for harsh conditions typically found in industrial environments.

What are the electrical phase requirements for optimal operation?

This switch is designed for three-phase applications, ensuring reliable performance in systems requiring balanced power distribution.

What type of mounting does this product support, and why is it advantageous?

This switch is designed for surface mounting, facilitating easy installation in various locations while allowing for effective use of space in electrical setups.
