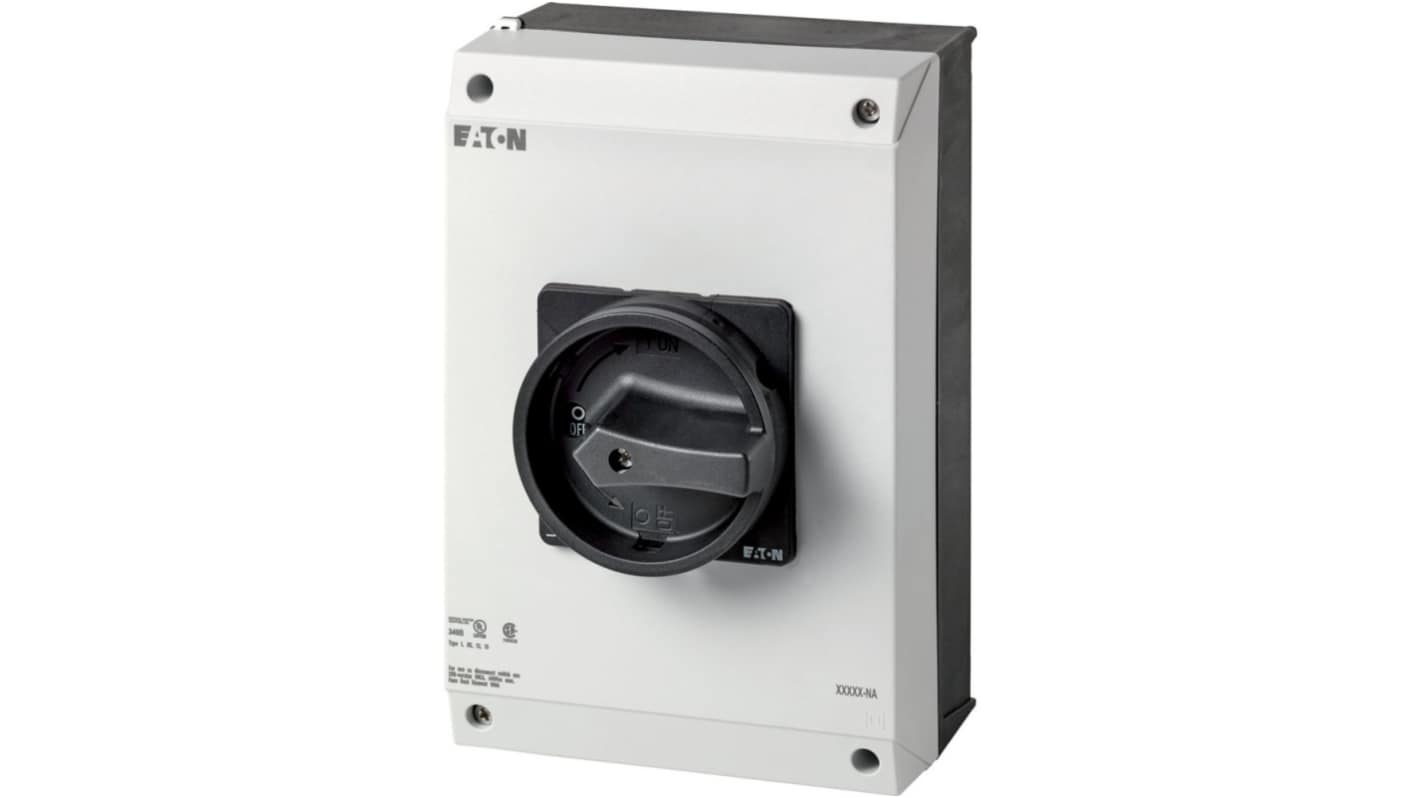

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 24 A, 30 kW

RS Stock No.:: 255-508
Mfr. Part No.:: 255898 P3-63/I4/SVB-SW-NA
Brand:: Eaton

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 24 A, 30 kW

Subtotal (1 unit)*

£195.15

(exc. VAT)

£234.18

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 13 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£195.15

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 255-508
Mfr. Part No.:: 255898 P3-63/I4/SVB-SW-NA
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Surface Mount
	IP Rating	IP65
	Switching Current	24 A
	Terminal Type	Screw
	Series	Eaton Moeller P3
	Minimum Operating Temperature	-25°C
	Switching Power	30kW
	Maximum Operating Temperature	40°C
	Length	139mm
	Standards/Approvals	CE UL Category Control No.:NLRV UL File No.:E36332 VDE 0660 CSA-C22.2 No. 60947-4-1-14 CSA-C22.2 No. 94 IEC/EN 60204 UL CSA CSA Class No.:3211-05 CSA File No.:012528 UL 60947-4-1 IEC/EN 60947-3 IEC/EN 60947
	Hazardous Area Certification	No
	Depth	139mm
	Width	160 mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Surface Mount
	IP Rating IP65
	Switching Current 24 A
	Terminal Type Screw
	Series Eaton Moeller P3
	Minimum Operating Temperature -25°C
	Switching Power 30kW
	Maximum Operating Temperature 40°C
	Length 139mm
	Standards/Approvals CE UL Category Control No.:NLRV UL File No.:E36332 VDE 0660 CSA-C22.2 No. 60947-4-1-14 CSA-C22.2 No. 94 IEC/EN 60204 UL CSA CSA Class No.:3211-05 CSA File No.:012528 UL 60947-4-1 IEC/EN 60947-3 IEC/EN 60947
	Hazardous Area Certification No
	Depth 139mm
	Width 160 mm

Datasheet - 255898 P3-63/I4/SVB-SW-NA

RoHS Status: Exempt

COO (Country of Origin):: GB

The Eaton highly engineered main switch is designed to meet the demanding needs of industrial and commercial applications. The device is equipped with a robust three-pole configuration, enabling efficient performance and reliable electrical isolation. With a maximum current rating of 63 A, this switch ensures seamless operation under varying electrical loads. The incorporation of a black rotary handle allows for easy manual operation, complete with a locking ring for added security. This product also adheres to strict international standards, including UL and CSA certifications, ensuring it is suitable for diverse environments. Exceptional in its construction, the switch is suitable for surface mounting, making it a versatile choice for panel builders and electricians alike.

Enhanced safety with interlockable STOP function for emergency situations

Designed for seamless integration with control circuits and external conductors

Robust IP65 protection rating ensures resilience against dust and moisture

Temperature range support enables operation in extreme conditions from -25°C to +40°C

Easy installation with screw terminal connections for reliable contact points

Mechanical lifespan of 100,000 operations minimises maintenance needs

Applicable for various branch circuits and motor disconnection, making it versatile

Built-in electromagnetic compatibility protects against interference in sensitive environments
