Lovato Electric 3-Pole Screw Switch Disconnector -, IP20, IP65
- RS Stock No.:
- 248-5540
- Mfr. Part No.:
- GL0400C1
- Brand:
- Lovato Electric
Subtotal (1 unit)*
£248.54
(exc. VAT)
£298.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £248.54 |
*price indicative
- RS Stock No.:
- 248-5540
- Mfr. Part No.:
- GL0400C1
- Brand:
- Lovato Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato Electric | |
| Number of Poles | 3 | |
| Product Type | Switch Disconnector | |
| Mount Type | Screw | |
| IP Rating | IP20, IP65 | |
| Handle Colour | Black | |
| Series | GL | |
| Terminal Type | M10 x 25 | |
| Auxiliary Contacts Available | Yes | |
| Minimum Operating Temperature | -25°C | |
| Padlock Compatibility | No | |
| Switching AC Voltage | 690V ac | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC/EN 60947-1, IEC/EN 60947-3 | |
| Length | 188.1mm | |
| Depth | 145.8mm | |
| Width | 145.8mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Lovato Electric | ||
Number of Poles 3 | ||
Product Type Switch Disconnector | ||
Mount Type Screw | ||
IP Rating IP20, IP65 | ||
Handle Colour Black | ||
Series GL | ||
Terminal Type M10 x 25 | ||
Auxiliary Contacts Available Yes | ||
Minimum Operating Temperature -25°C | ||
Padlock Compatibility No | ||
Switching AC Voltage 690V ac | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-3 | ||
Length 188.1mm | ||
Depth 145.8mm | ||
Width 145.8mm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- IT

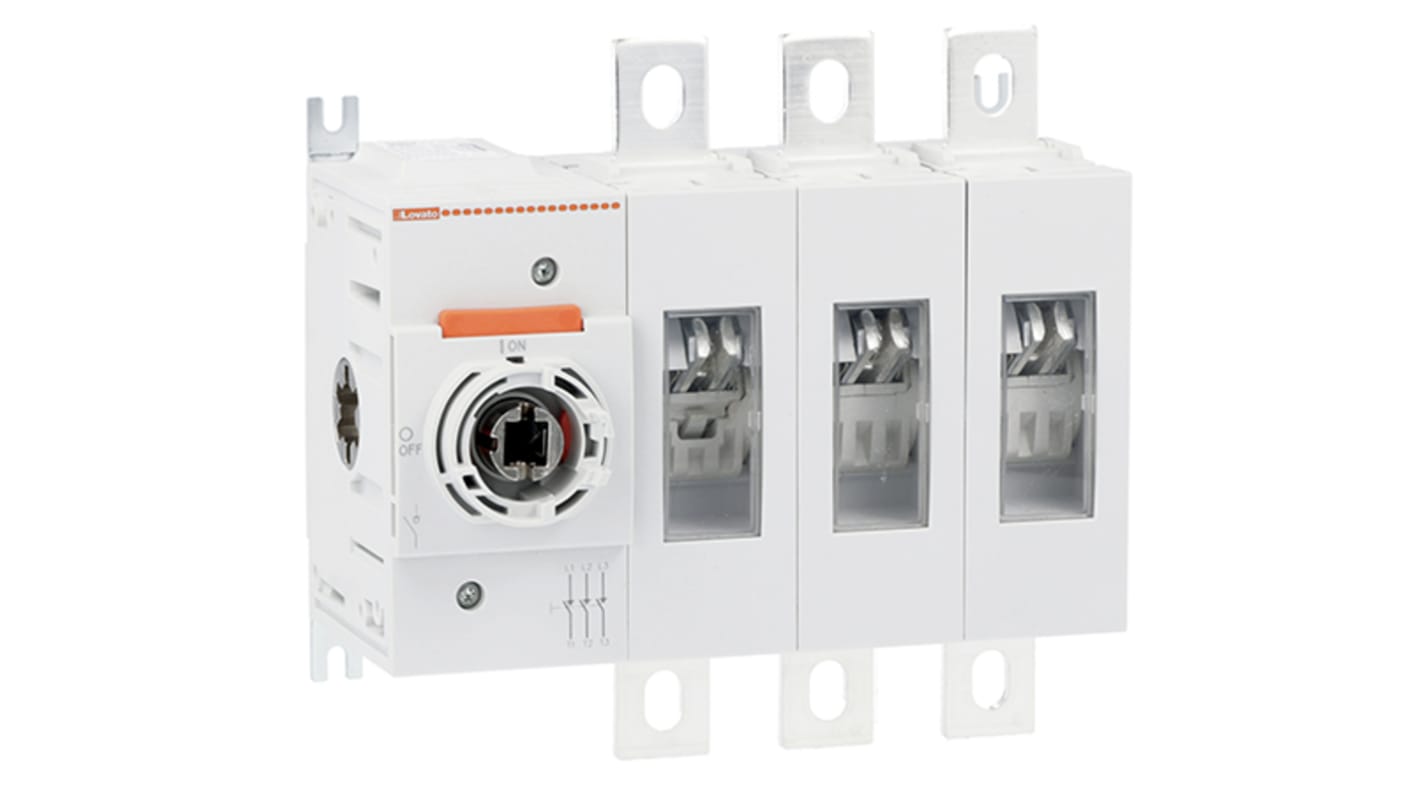

The Lovato product is a three pole switch disconnector . It is a changeover switch with direct operating handle and door coupling version.
Compact dimensions and add on fourth pole
Possibility to adjust the position of the clips for screw fixing on plate
Visible contacts
