MPN

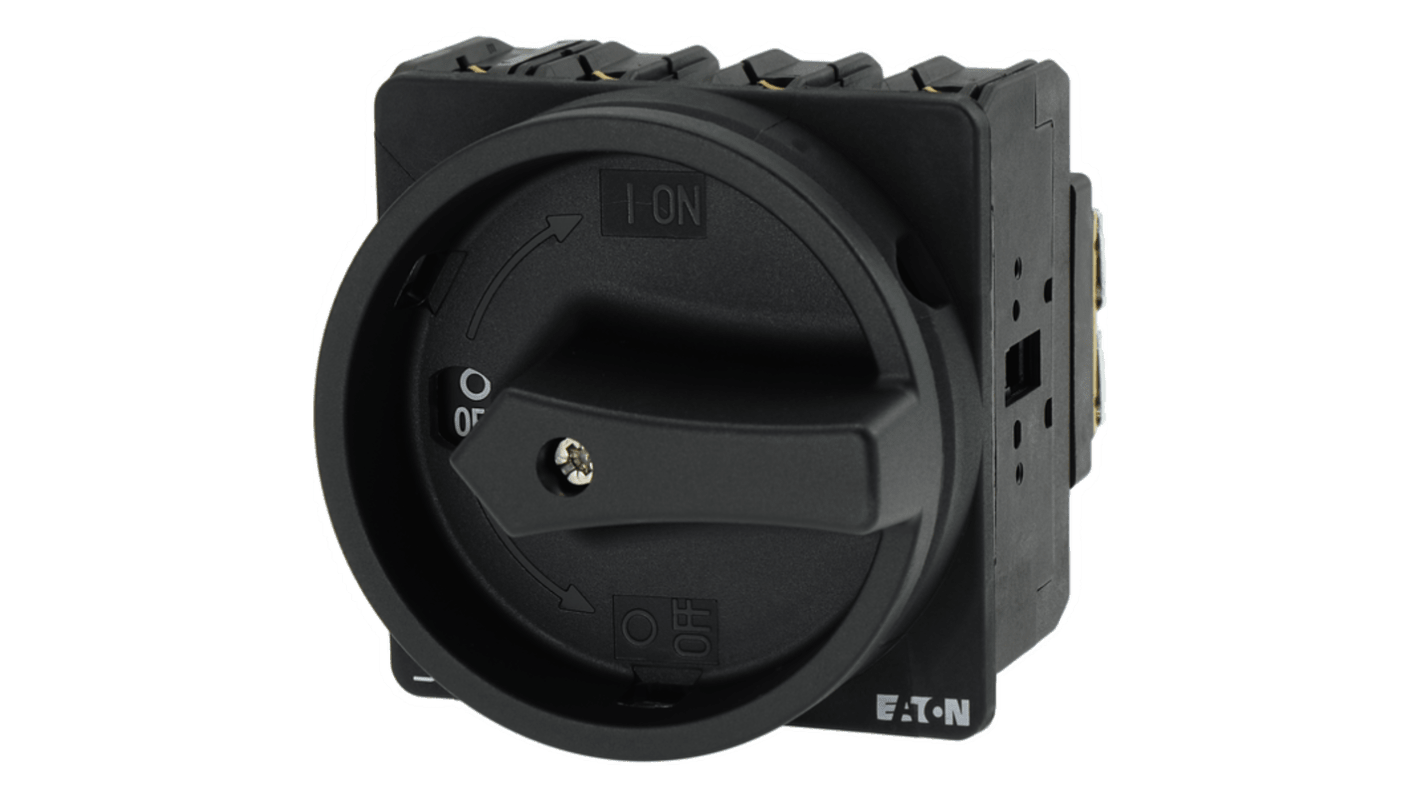

Eaton 4-Pole Flush Non-Fused Isolator Switch -, IP65, 63A, 30 kW

RS Stock No.:: 229-9253
Mfr. Part No.:: 012771 P3-63/EA/SVB-SW/N
Brand:: Eaton

Eaton 4-Pole Flush Non-Fused Isolator Switch -, IP65, 63A, 30 kW

Subtotal (1 unit)*

£115.13

(exc. VAT)

£138.16

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 7 unit(s) shipping from 15 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£115.13

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 229-9253
Mfr. Part No.:: 012771 P3-63/EA/SVB-SW/N
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Non-Fused Isolator Switch
	Number of Poles	4
	Mount Type	Flush
	IP Rating	IP65
	Handle Colour	Black
	Series	P3
	Switching Current	63A
	Auxiliary Contacts Available	Yes
	Terminal Type	Screw
	Switching Power	30kW
	Padlock Compatibility	Yes
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	690V ac
	Maximum Operating Temperature	50°C
	Standards/Approvals	UL, CSA, IEC/EN 60204, IEC/EN 60947, VDE 0660
	Hazardous Area Certification	No
	Length	128mm

	Select all
	Brand Eaton
	Product Type Non-Fused Isolator Switch
	Number of Poles 4
	Mount Type Flush
	IP Rating IP65
	Handle Colour Black
	Series P3
	Switching Current 63A
	Auxiliary Contacts Available Yes
	Terminal Type Screw
	Switching Power 30kW
	Padlock Compatibility Yes
	Minimum Operating Temperature -25°C
	Switching AC Voltage 690V ac
	Maximum Operating Temperature 50°C
	Standards/Approvals UL, CSA, IEC/EN 60204, IEC/EN 60947, VDE 0660
	Hazardous Area Certification No
	Length 128mm

Datasheet-012771

COO (Country of Origin):: GB

Eaton Series P3 Switch, 63A Switching Current, IP65 - 012771 P3-63/EA/SVB-SW/N

This switch is a rotary panel-mounted device designed for industrial electrical control and isolation in demanding environments. It provides a secure means to interrupt and route three-phase and single-phase supplies while accommodating padlock security and protected external mounting. The unit is intended for applications requiring robust switching capacity and conformity with recognised international electrical standards.

Features and Benefits:

• Rated for 63A switching current to handle heavy-duty loads
• Capable of switching up to 690V AC for high-voltage circuits
• IP65 enclosure rating for dust-tight and water-resistant protection
• Four-pole configuration to isolate all conductors in multi-phase systems
• Screw terminals to ensure secure conductor connections
• Padlock-compatible handle for controlled access and safety

Applications

• Suitable for industrial motor isolation and control panels
• Ideal for machine tool power switching and safety isolation
• Used with distribution boards requiring full multi-pole break
• Can be used for site panels where ingress protection is mandatory

What environmental temperature range can it operate within?

It is specified to operate between -25°C and 50°C, suitable for many indoor and sheltered outdoor installations.

How is the device mounted into control panels?

The product is designed for flush mounting into panels, providing a neat installation with the handle accessible from the panel face.

Which standards and approvals apply to this switch?

It meets multiple international standards including UL, CSA, IEC/EN 60204, IEC/EN 60947 and VDE 0660 for electrical safety and performance.

What is the switching power capability for motor loads?

The switch has a switching power rating of 30 kW, allowing it to break significant motor and resistive loads.

What is the Terminal and handle specification?

Terminals use a screw-type connection and the external actuator is a black handle compatible with padlocking for secure isolation.

Note

Eaton formerly known as Moeller
