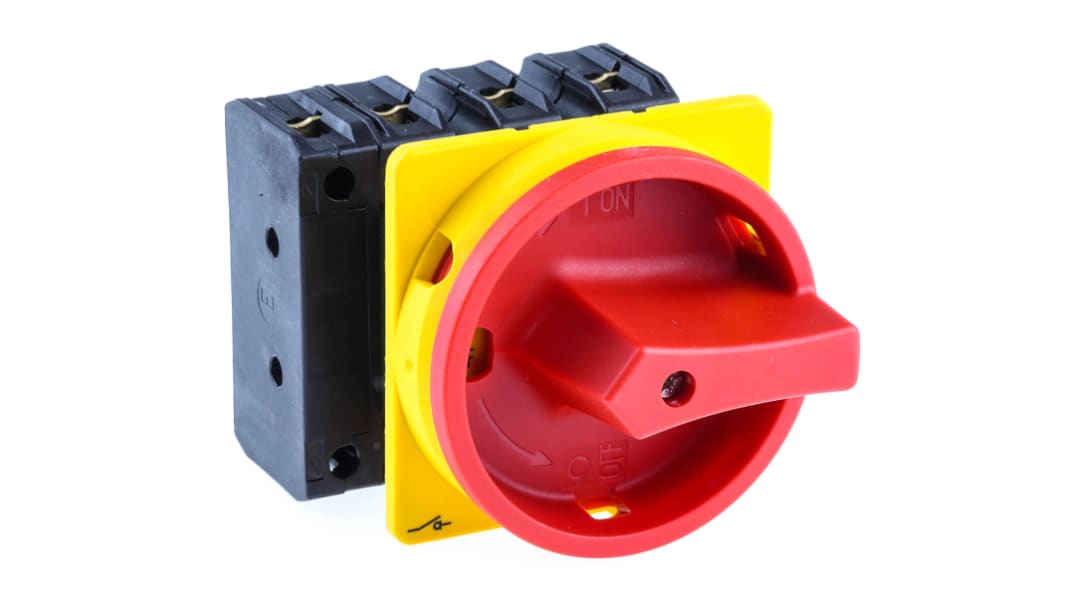

Eaton 3P+N Pole Flush Mount Isolator Switch - 63A Maximum Current, 37kW Power Rating, IP65
- RS Stock No.:
- 103-8406
- Distrelec Article No.:
- 303-96-408
- Mfr. Part No.:
- 010398 P3-63/EA/SVB/N
- Brand:
- Eaton
Subtotal (1 unit)*
£115.13
(exc. VAT)
£138.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £115.13 |
*price indicative
- RS Stock No.:
- 103-8406
- Distrelec Article No.:
- 303-96-408
- Mfr. Part No.:
- 010398 P3-63/EA/SVB/N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3P+N | |
Maximum Current | 63A | |
Mounting Type | Flush Mount | |
IP Rating | IP65 | |
Power Rating | 37kW | |
Voltage Rating | 690V | |
Electrical Phase | 1, 3 | |
Handle Colour | Red | |
Accepts Padlocks | Yes | |
Normal State Configuration | 3NO | |
Auxiliary Contacts Available | No | |
Enclosed/Not Enclosed | Enclosed | |
Switch Rating | 640A | |
Length | 87mm | |
Width | 101mm | |
Depth | 114mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +50°C | |
Throw Configuration | Single | |
Terminal Type | Screw | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3P+N | ||
Maximum Current 63A | ||
Mounting Type Flush Mount | ||
IP Rating IP65 | ||
Power Rating 37kW | ||
Voltage Rating 690V | ||
Electrical Phase 1, 3 | ||
Handle Colour Red | ||
Accepts Padlocks Yes | ||
Normal State Configuration 3NO | ||
Auxiliary Contacts Available No | ||
Enclosed/Not Enclosed Enclosed | ||
Switch Rating 640A | ||
Length 87mm | ||
Width 101mm | ||
Depth 114mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +50°C | ||
Throw Configuration Single | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- GB
Eaton Isolator Switch, 640A Switch Rating, Emergency Stop Function - P3 Series - 010398 P3-63/EA/SVB/N
For safe circuit maintenance without a full system shutdown, turn to this isolator switch from Eaton. It lets you disconnect a specific circuit in your one-phase or three-phase setup with a simple twist of the rotary handle. That's why it's an essential component in commercial and industrial applications including transformer and power line repairs. The red handle and yellow base make it easy to spot if there's an emergency. Screw terminals are on hand to let you wire the unit in securely and achieve vibration-proof connections.
Features & Benefits
• Locking ring accepts padlocks when in the OFF position for added security
• IP65-rated for protection against dust and water jets from all directions
• Operating temperature range between -25°C and +50°C suits use in challenging conditions
• 690V voltage rating, so it's compatible with high-powered equipment
• 3 poles plus a neutral setting lets you monitor multiple circuits
• IP65-rated for protection against dust and water jets from all directions
• Operating temperature range between -25°C and +50°C suits use in challenging conditions
• 690V voltage rating, so it's compatible with high-powered equipment
• 3 poles plus a neutral setting lets you monitor multiple circuits
Is this unit shock-resistant?
Yes, this sturdy switch withstands mechanical shocks up to 15g, so you can rely on it in heavy-duty settings.
How long will this product last?
It's durable and wear-resistant, delivering a minimum of 100,000 mechanical operations across its lifespan.
Note
Eaton formerly known as Moeller
