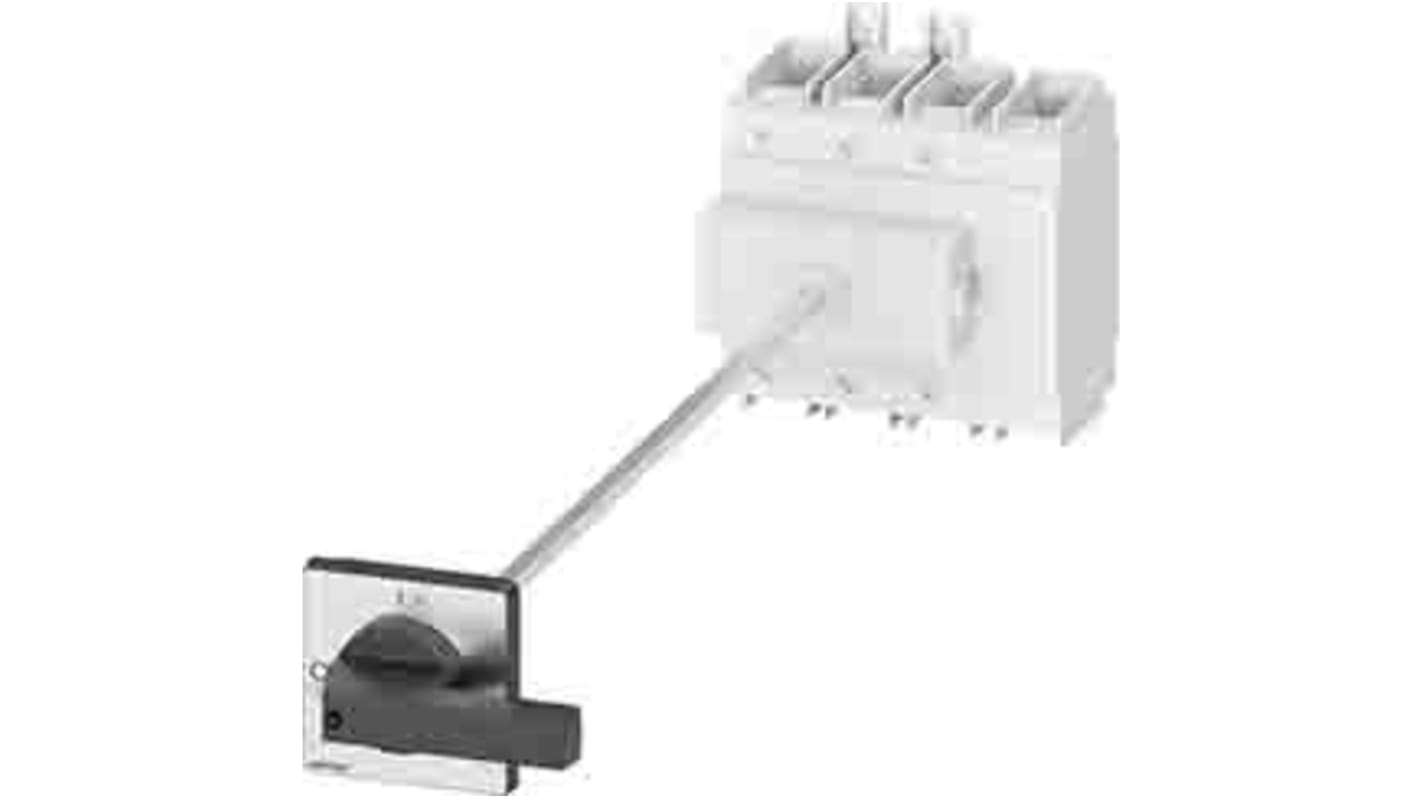

Siemens 4-Pole Fixed Isolator Switch -, IP65, 160A, 75 kW
- RS Stock No.:
- 213-1356
- Mfr. Part No.:
- 3LD2318-1TL11
- Brand:
- Siemens
Subtotal (1 unit)*
£385.06
(exc. VAT)
£462.07
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £385.06 |
*price indicative
- RS Stock No.:
- 213-1356
- Mfr. Part No.:
- 3LD2318-1TL11
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Poles | 4 | |
| Product Type | Isolator Switch | |
| Mount Type | Fixed | |
| IP Rating | IP65 | |
| Auxiliary Contacts Available | No | |
| Series | 3LD | |
| Switching Current | 160A | |
| Terminal Type | Box | |
| Minimum Operating Temperature | -25°C | |
| Switching Power | 75kW | |
| Maximum Operating Temperature | 55°C | |
| Depth | 94mm | |
| Hazardous Area Certification | NO | |
| Width | 112mm | |
| Standards/Approvals | CCC, CE, CSA, EN, RoHS, UL, VDE | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Poles 4 | ||
Product Type Isolator Switch | ||
Mount Type Fixed | ||
IP Rating IP65 | ||
Auxiliary Contacts Available No | ||
Series 3LD | ||
Switching Current 160A | ||
Terminal Type Box | ||
Minimum Operating Temperature -25°C | ||
Switching Power 75kW | ||
Maximum Operating Temperature 55°C | ||
Depth 94mm | ||
Hazardous Area Certification NO | ||
Width 112mm | ||
Standards/Approvals CCC, CE, CSA, EN, RoHS, UL, VDE | ||
- COO (Country of Origin):
- DE
The Siemens SENTRON's switch disconnector has numerous possible applications. It has 4-pole configuration with current ratting of 160 A .After the switch disconnects from the grid, they ensure safe activation of all of the electrical equipment. The brand offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
IP65 rating
Size of the switch disconnector 5
Mechanical life 100000
Electrical life 6000
Operating voltage 690 V AC
