Siemens 3-Pole Fixed Isolator Switch -, IP65, 160A, 75 kW
- RS Stock No.:
- 213-1380
- Mfr. Part No.:
- 3LD2318-0TK11
- Brand:
- Siemens
Subtotal (1 unit)*
£310.29
(exc. VAT)
£372.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £310.29 |
*price indicative
- RS Stock No.:
- 213-1380
- Mfr. Part No.:
- 3LD2318-0TK11
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| Mount Type | Fixed | |
| IP Rating | IP65 | |
| Terminal Type | Box | |
| Auxiliary Contacts Available | No | |
| Switching Current | 160A | |
| Series | 3LD | |
| Switching Power | 75kW | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 112mm | |
| Standards/Approvals | VDE, EN, RoHS, UL, CE, CSA, CCC | |
| Depth | 94mm | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
Mount Type Fixed | ||
IP Rating IP65 | ||
Terminal Type Box | ||
Auxiliary Contacts Available No | ||
Switching Current 160A | ||
Series 3LD | ||
Switching Power 75kW | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 55°C | ||
Width 112mm | ||
Standards/Approvals VDE, EN, RoHS, UL, CE, CSA, CCC | ||
Depth 94mm | ||
Hazardous Area Certification NO | ||

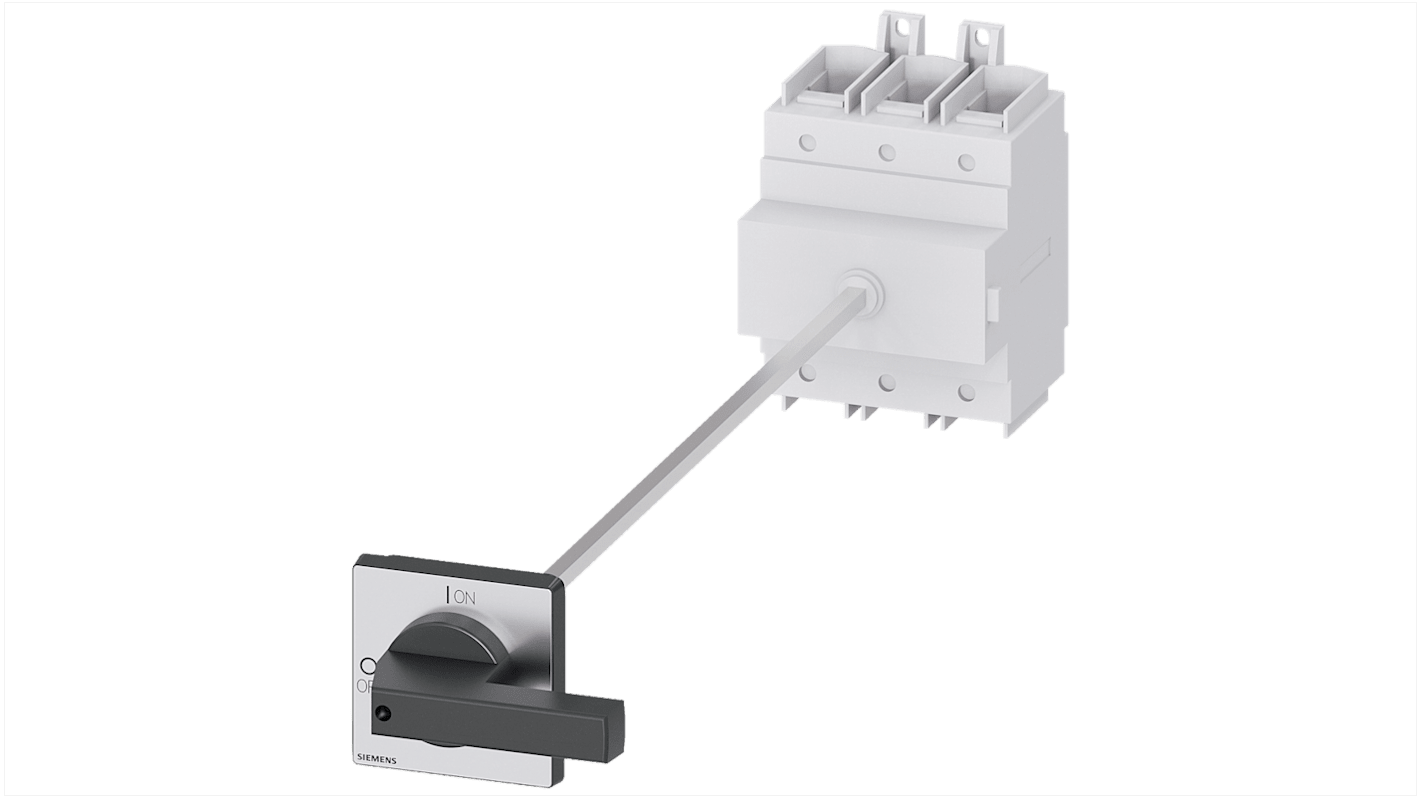

The Siemens SENTRON series 3LD switch disconnector has rated continuous current of 160A and type of switch is floor mounting with door coupling. The switches for floor mounting are snapped onto 35 mm standard mounting rails according to EN 60715 or screw-mounted on mounting panels. The actuators are connected to the lower section of the switch through a door coupling, which can be released in its zero position, and a 300 mm long switch shaft.
It consist three poles
Fixed mounting Device type
