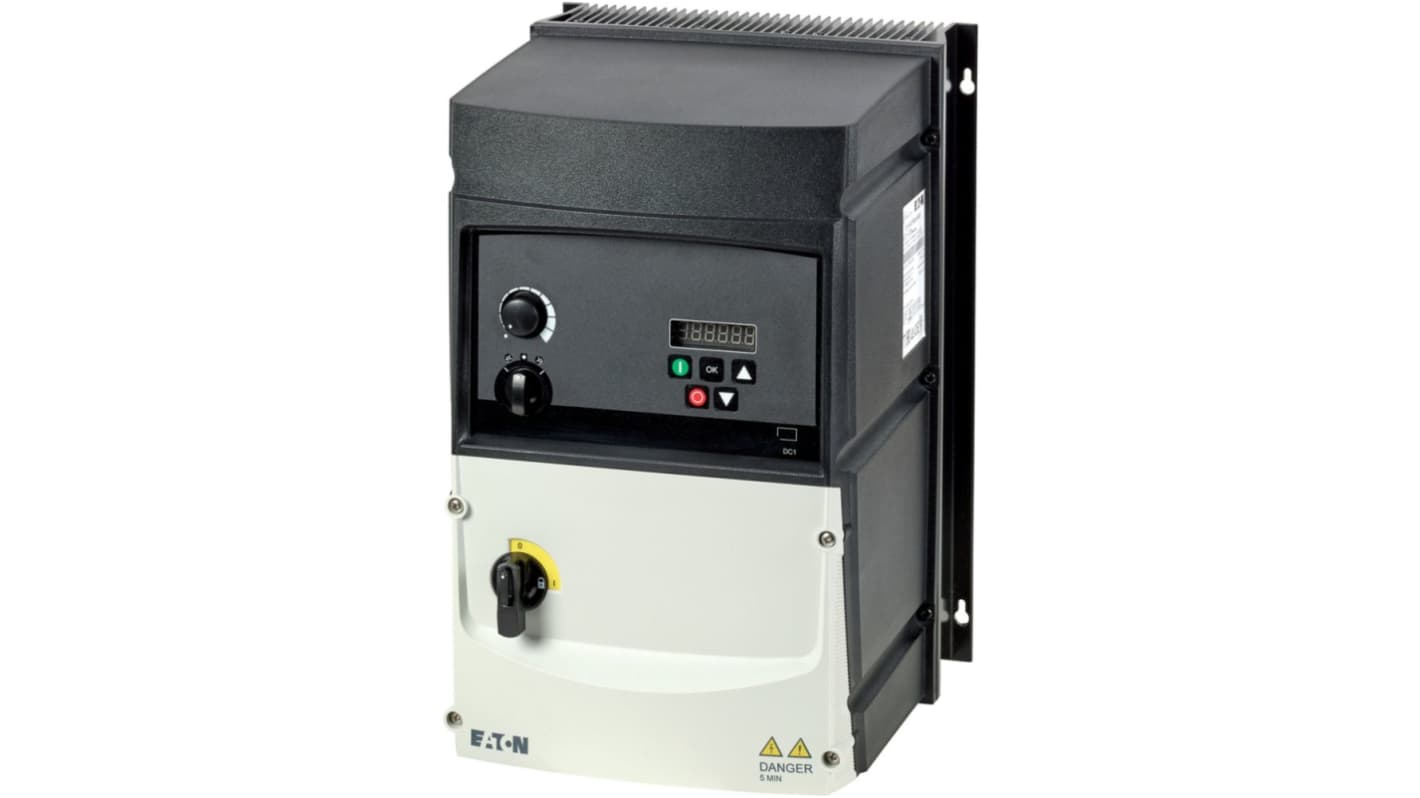

Eaton Variable Speed Drive, 15 kW, 3 Phase, VFD DC1 Series 480V ac 30 A
- RS Stock No.:
- 251-634
- Mfr. Part No.:
- 199446 DC1-34030FB-A6SOE1
- Brand:
- Eaton
Subtotal (1 unit)*
£2,347.51
(exc. VAT)
£2,817.01
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,347.51 |
*price indicative
- RS Stock No.:
- 251-634
- Mfr. Part No.:
- 199446 DC1-34030FB-A6SOE1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Variable Speed Drive | |
| Power Rating | 15kW | |
| Number of Phases | 3 | |
| Maximum Output Current | 30A | |
| Series | VFD DC1 | |
| IP Rating | IP66 | |
| Output Frequency | 500Hz | |
| Minimum Supply Voltage | 380V ac | |
| Maximum Supply Voltage | 480V ac | |
| Drive Type | Variable Frequency Drive (VFD) | |
| Minimum Operating Temperature | -20°C | |
| Compatible Motor Type | AC Motor | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | EAC, CE, ISO 9001, UL, CSA | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Variable Speed Drive | ||
Power Rating 15kW | ||
Number of Phases 3 | ||
Maximum Output Current 30A | ||
Series VFD DC1 | ||
IP Rating IP66 | ||
Output Frequency 500Hz | ||
Minimum Supply Voltage 380V ac | ||
Maximum Supply Voltage 480V ac | ||
Drive Type Variable Frequency Drive (VFD) | ||
Minimum Operating Temperature -20°C | ||
Compatible Motor Type AC Motor | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals EAC, CE, ISO 9001, UL, CSA | ||
- COO (Country of Origin):
- GB
The Eaton DC1 Variable Frequency Drive is a 400 V AC, 3-phase unite, 30 A, 15 kW, is equipped with local controls for on-site adjustments and settings. Its IP66/NEMA 4X rating ensures excellent protection against water and dust, making it suitable for demanding environments. The drive includes a radio interference suppression filter to reduce electromagnetic interference and a brake chopper for energy recovery during deceleration. The 7-digit display assembly provides clear feedback on operating conditions, allowing for efficient monitoring and control of motor performance.
Finger and back of hand proof
Protection against direct contact
PCB protection and UV resistance
