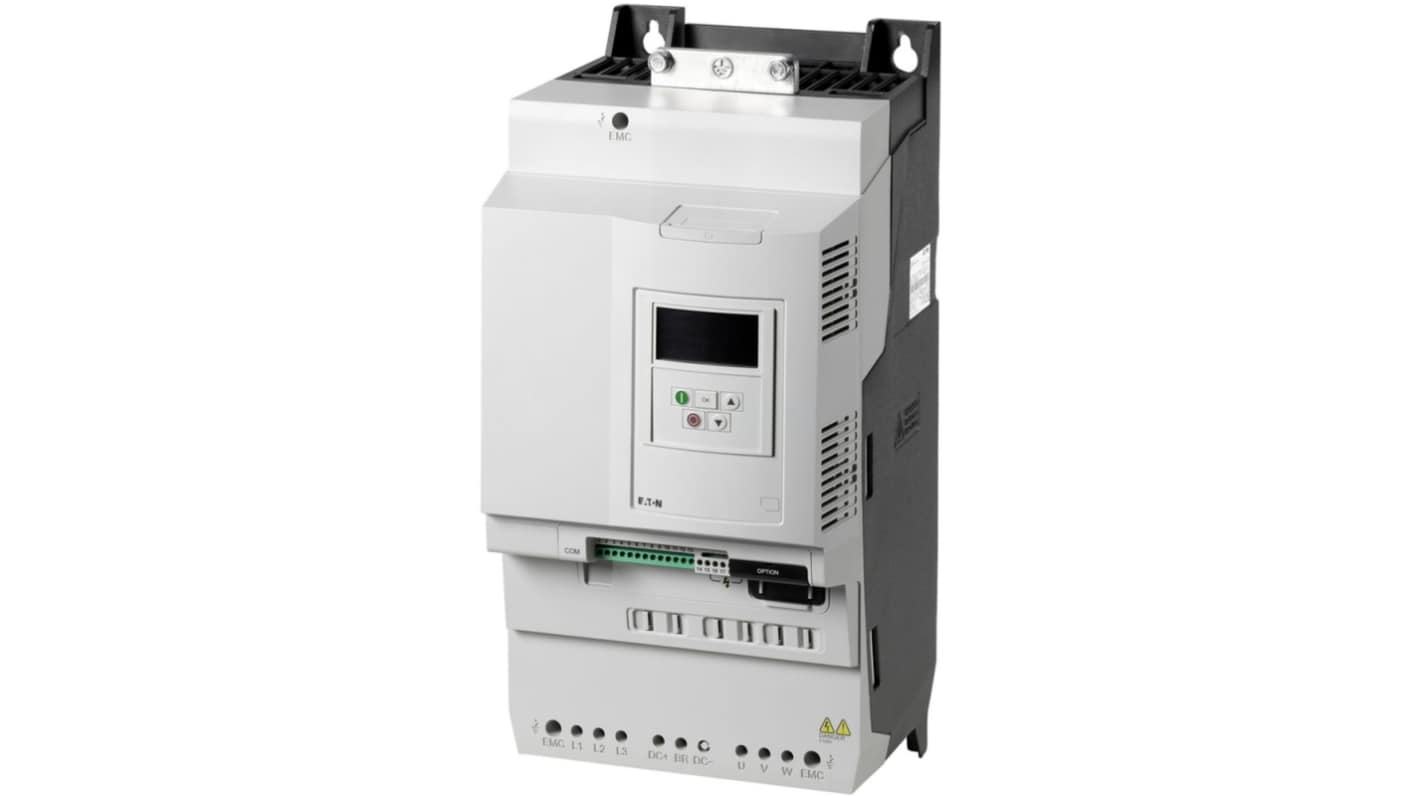

Eaton Inverter Drive, 37 kW, 3 Phase, DA1 Series 600 V 54 A
- RS Stock No.:
- 251-192
- Mfr. Part No.:
- 197502 DA1-35054NB-B20C
- Brand:
- Eaton
Subtotal (1 unit)*
£3,868.82
(exc. VAT)
£4,642.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,868.82 |
*price indicative
- RS Stock No.:
- 251-192
- Mfr. Part No.:
- 197502 DA1-35054NB-B20C
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Power Rating | 37kW | |
| Product Type | Inverter Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 54A | |
| Series | DA1 | |
| Mount Type | Vertical | |
| Overall Length | 261mm | |
| IP Rating | IP20 | |
| Output Frequency | 500Hz | |
| Minimum Supply Voltage | 500V ac | |
| Maximum Supply Voltage | 600V | |
| Minimum Operating Temperature | -10°C | |
| Drive Type | Inverter | |
| Maximum Operating Temperature | 50°C | |
| Overall Width | 234mm | |
| Standards/Approvals | IEC/EN61800-5, Certified by UL for use in Canada, UL, EAC, IEC/EN 61800-2, RCM, UkrSEPRO, cUL, IEC/EN61800-3, UL File No.:E172143, UL Category Control No.:NMMS, Safety:EN 61800-5-1:2003, IEC/EN 61800-3, UL Report Applies to both US and Canada, UL 508C, NMMS7, ISO 9001, CE | |
| Overall Depth | 261mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Power Rating 37kW | ||
Product Type Inverter Drive | ||
Number of Phases 3 | ||
Maximum Output Current 54A | ||
Series DA1 | ||
Mount Type Vertical | ||
Overall Length 261mm | ||
IP Rating IP20 | ||
Output Frequency 500Hz | ||
Minimum Supply Voltage 500V ac | ||
Maximum Supply Voltage 600V | ||
Minimum Operating Temperature -10°C | ||
Drive Type Inverter | ||
Maximum Operating Temperature 50°C | ||
Overall Width 234mm | ||
Standards/Approvals IEC/EN61800-5, Certified by UL for use in Canada, UL, EAC, IEC/EN 61800-2, RCM, UkrSEPRO, cUL, IEC/EN61800-3, UL File No.:E172143, UL Category Control No.:NMMS, Safety:EN 61800-5-1:2003, IEC/EN 61800-3, UL Report Applies to both US and Canada, UL 508C, NMMS7, ISO 9001, CE | ||
Overall Depth 261mm | ||
The Eaton DA1 Frequency inverter is a 500 V AC, 3-phase inverter with a 54 A current rating and 37 kW power output. It features an IP20/NEMA 0 enclosure, additional PCB protection, a DC link choke for improved performance, and FS5 safety features, ensuring reliable and secure operation in demanding industrial applications.
4 quadrant operation possible
Finger and back of hand proof
Protection against direct contact
