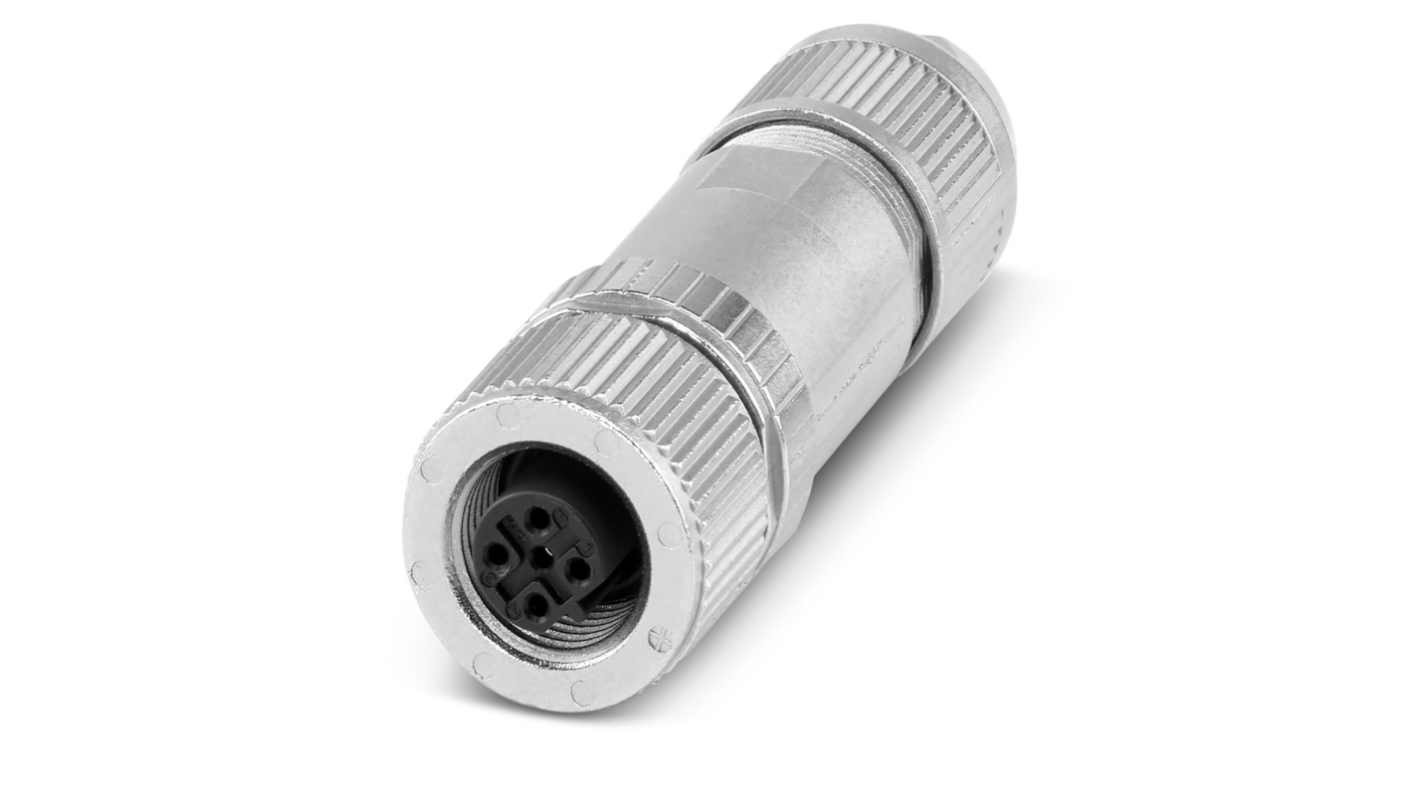

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Female, IP65, IP67, SACC Series
- RS Stock No.:
- 154-8119
- Mfr. Part No.:
- 1424664
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£26.53
(exc. VAT)
£31.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 36 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £26.53 |
5 - 24 | £25.21 |
25 - 49 | £23.88 |
50 + | £22.55 |
*price indicative
- RS Stock No.:
- 154-8119
- Mfr. Part No.:
- 1424664
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Plug | |
Contact Gender | Female | |
Termination Method | Push In, Screw | |
IP Rating | IP65, IP67 | |
Current Rating | 4.0A | |
Series | SACC | |
Body Orientation | Straight | |
Coding | B | |
Voltage Rating | 48.0 V , 60.0 V | |
Shell Size | 13 | |
Mating Type | B Coded | |
Housing Material | Zinc | |
Pole Format | 5P | |
Contact Plating | Nickel over Gold | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Copper | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Female | ||
Termination Method Push In, Screw | ||
IP Rating IP65, IP67 | ||
Current Rating 4.0A | ||
Series SACC | ||
Body Orientation Straight | ||
Coding B | ||
Voltage Rating 48.0 V , 60.0 V | ||
Shell Size 13 | ||
Mating Type B Coded | ||
Housing Material Zinc | ||
Pole Format 5P | ||
Contact Plating Nickel over Gold | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Copper | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, Push-In Connection, 4A Current Rating - SACC-M12FSB-5PL SH - 1424664
Defend your connections to the hilt in tough industrial conditions with this circular connector from Phoenix Contact. Its IP67 rating means it's dust-tight and secure against limited submersion in shallow water, so you can rely on it to hold up in damp and dusty environments. Thanks to the extra gold coating on the nickel-plated bronze contacts, you can trust power and information will flow smoothly around your system. The unit fits onto the end of cables between 4 and 8mm in diameter, so it's an easy fit for your everyday work connections.
When it comes to installation, you won't need your toolkit. The device uses push-in connection to join to your cabling, letting you hop straight to work. High EMI levels are no problem for its 360° shielding, so your data reaches your machines safely every time. An industry-standard M12 thread size helps ensure the plug is widely compatible and fits right into your system.
When it comes to installation, you won't need your toolkit. The device uses push-in connection to join to your cabling, letting you hop straight to work. High EMI levels are no problem for its 360° shielding, so your data reaches your machines safely every time. An industry-standard M12 thread size helps ensure the plug is widely compatible and fits right into your system.
Features & Benefits
• Spring-cage terminals secure wiring against movement to help minimise disruption
• Lifespan of over 100 mating cycles, so you get long-lasting connectivity
• UL 94 flammability rating of V0, helping limit the spread of fire
• Lifespan of over 100 mating cycles, so you get long-lasting connectivity
• UL 94 flammability rating of V0, helping limit the spread of fire
