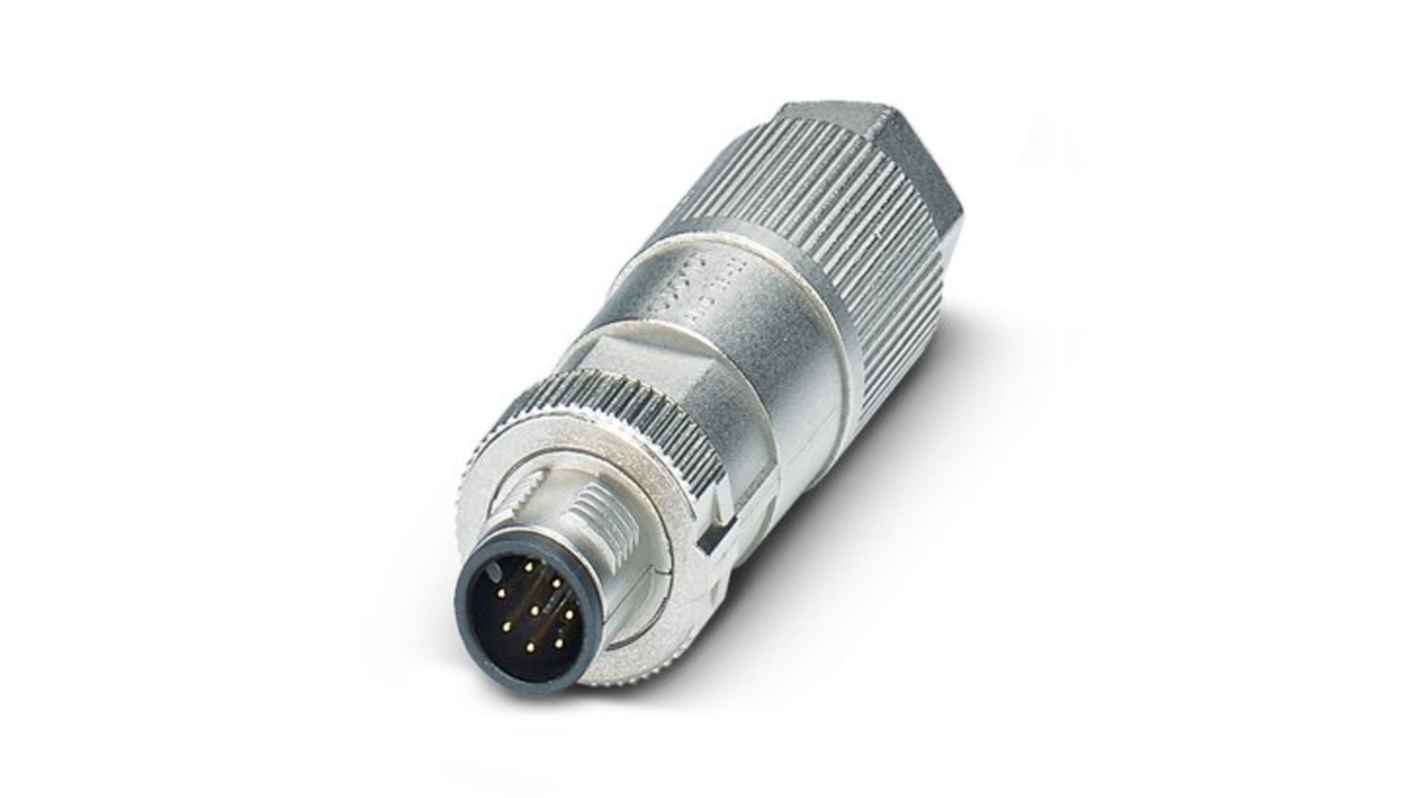

Phoenix Contact Circular Connector, 8 Contacts, Cable, M12 Connector, Plug, Male, IP65, IP67, SACC Series
- RS Stock No.:
- 280-913
- Mfr. Part No.:
- 1421679
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£40.63
(exc. VAT)
£48.76
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £40.63 |
*price indicative
- RS Stock No.:
- 280-913
- Mfr. Part No.:
- 1421679
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | Circular Connector | |
| Mount Type | Cable | |
| Current | 2A | |
| Connector Size | M12 | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP65, IP67 | |
| Series | SACC | |
| Orientation | Straight | |
| Coding | A | |
| Voltage | 48, 60V ac | |
| Termination Type | IDC | |
| Shell Size | M12 | |
| Mating Type | Standard | |
| Minimum Operating Temperature | -40°C | |
| Housing Material | Die Cast Zinc | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | EAC | |
| Pole Format | 8 | |
| Contact Plating | Nickel Gold Alloy | |
| Contact Material | Copper Tin | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type Circular Connector | ||
Mount Type Cable | ||
Current 2A | ||
Connector Size M12 | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP65, IP67 | ||
Series SACC | ||
Orientation Straight | ||
Coding A | ||
Voltage 48, 60V ac | ||
Termination Type IDC | ||
Shell Size M12 | ||
Mating Type Standard | ||
Minimum Operating Temperature -40°C | ||
Housing Material Die Cast Zinc | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals EAC | ||
Pole Format 8 | ||
Contact Plating Nickel Gold Alloy | ||
Contact Material Copper Tin | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Circular connector designed to ensure seamless Ethernet connections in demanding environments. Optimised for data transmission at 1 Gbps, it features an A-coded configuration and is crafted for both durability and performance. Its unique insulation displacement connection method simplifies installation, while the high-grade zinc die-cast housing provides superior mechanical strength.
Meets stringent fire protection regulations for rail vehicles
Robust build quality ensures a long service life
Compact design facilitates installation in tight spaces
