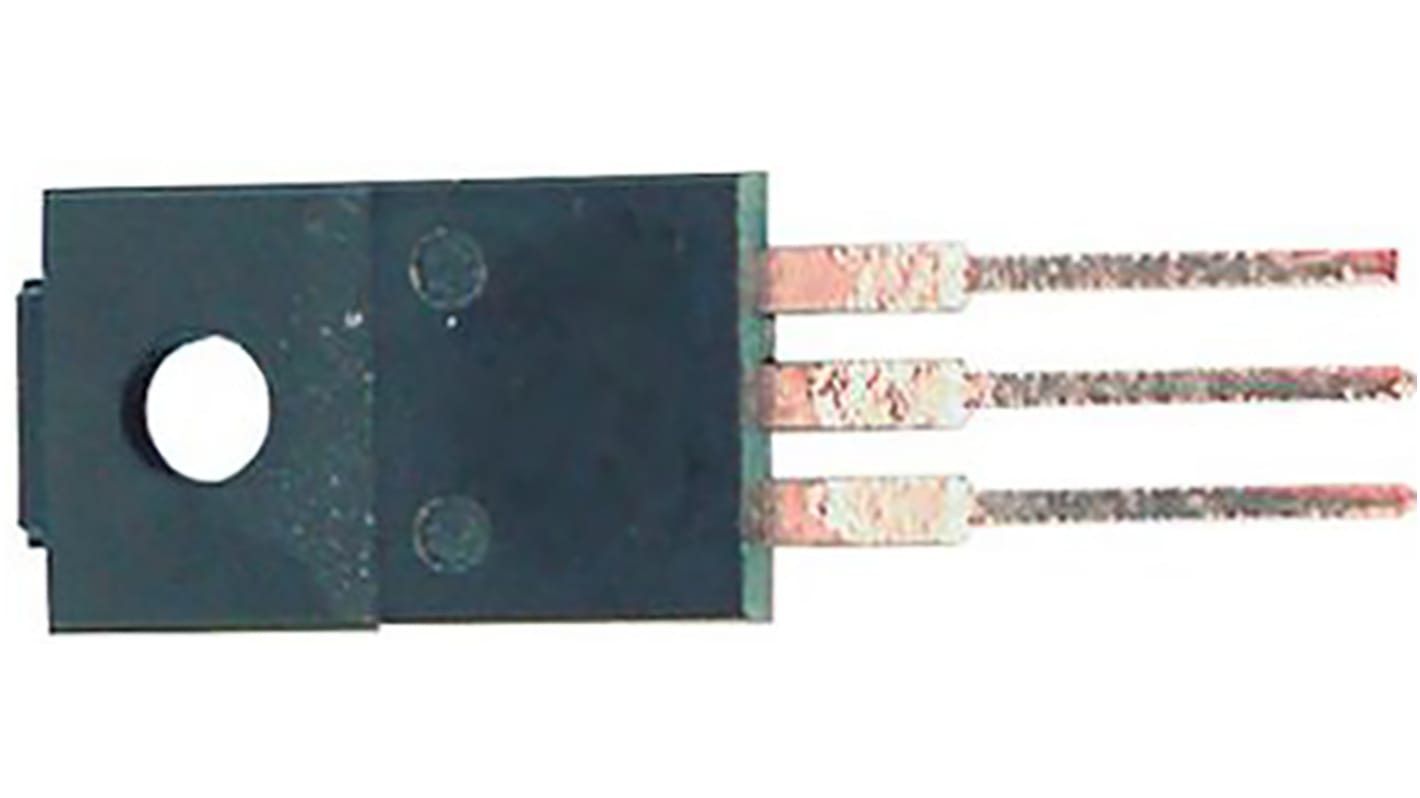

STMicroelectronics STGF7NB60SL IGBT, 15 A 600 V, 3-Pin TO-220FP, Through Hole
- RS Stock No.:
- 686-8360
- Mfr. Part No.:
- STGF7NB60SL
- Brand:
- STMicroelectronics
404 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 2)
£1.76
(exc. VAT)
£2.11
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 8 | £1.76 | £3.52 |
| 10 - 98 | £1.50 | £3.00 |
| 100 - 498 | £1.17 | £2.34 |
| 500 + | £0.985 | £1.97 |
| *price indicative | ||
- RS Stock No.:
- 686-8360
- Mfr. Part No.:
- STGF7NB60SL
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
IGBT Discretes, STMicroelectronics
IGBT Discretes & Modules, STMicroelectronics
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Collector Current | 15 A |
| Maximum Collector Emitter Voltage | 600 V |
| Maximum Gate Emitter Voltage | ±20V |
| Package Type | TO-220FP |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
