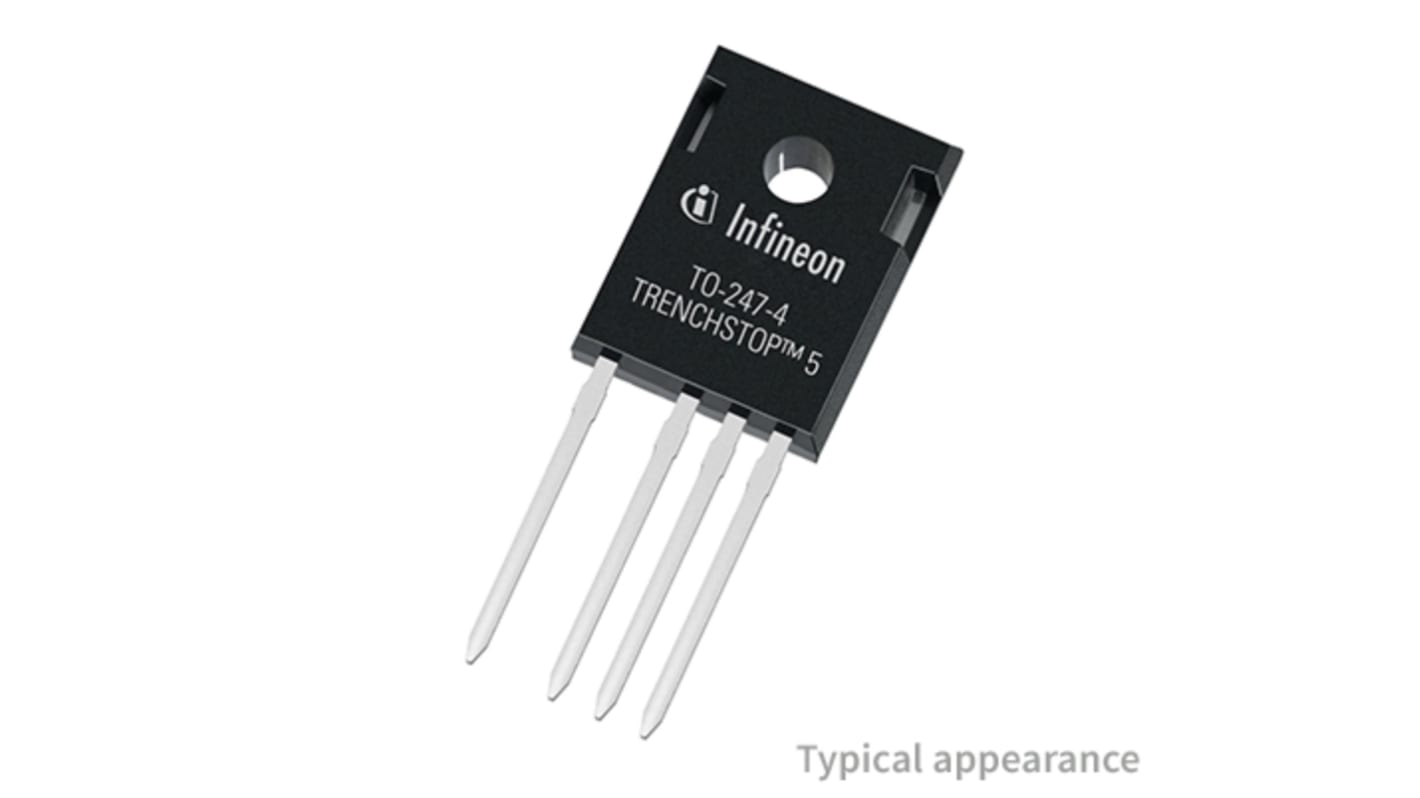

Infineon IKZ75N65EL5XKSA1, Type N-Channel IGBT, 100 A 650 V, 4-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£8.10

(exc. VAT)

£9.72

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 164 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£8.10
5 - 9£7.93
10 - 24£7.37
25 - 49£6.76
50 +£6.23

*price indicative

RS Stock No.:
273-2990
Mfr. Part No.:
IKZ75N65EL5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

100A

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

536W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

4

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.35V

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS, JEDEC

Width

16.13 mm

Length

21.1mm

Height

5.21mm

Automotive Standard

No

The Infineon IGBT has high design reliability due to stable thermal performance.

Higher efficiency for 50Hz

Longer lifetime and higher reliability of IGBT
