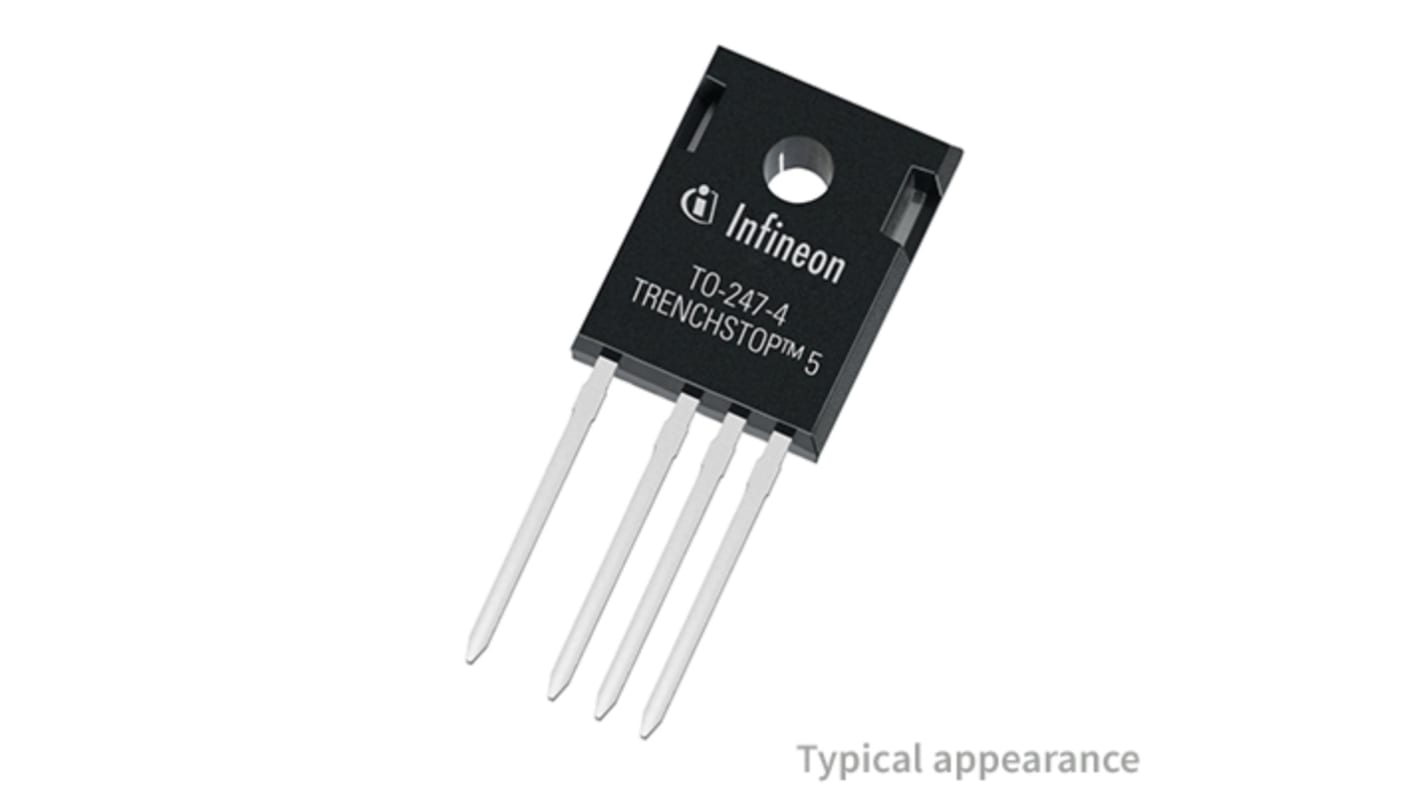

Infineon IKZ75N65EL5XKSA1, Type N-Channel IGBT, 100 A 650 V, 4-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 tube of 30 units)*

£135.36

(exc. VAT)

£162.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 150 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30£4.512£135.36
60 +£4.165£124.95

*price indicative

RS Stock No.:
273-2989
Mfr. Part No.:
IKZ75N65EL5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

100A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

536W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

4

Maximum Collector Emitter Saturation Voltage VceSAT

1.35V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Width

16.13 mm

Length

21.1mm

Standards/Approvals

RoHS, JEDEC

Height

5.21mm

Automotive Standard

No

The Infineon IGBT has high design reliability due to stable thermal performance.

Higher efficiency for 50Hz

Longer lifetime and higher reliability of IGBT
