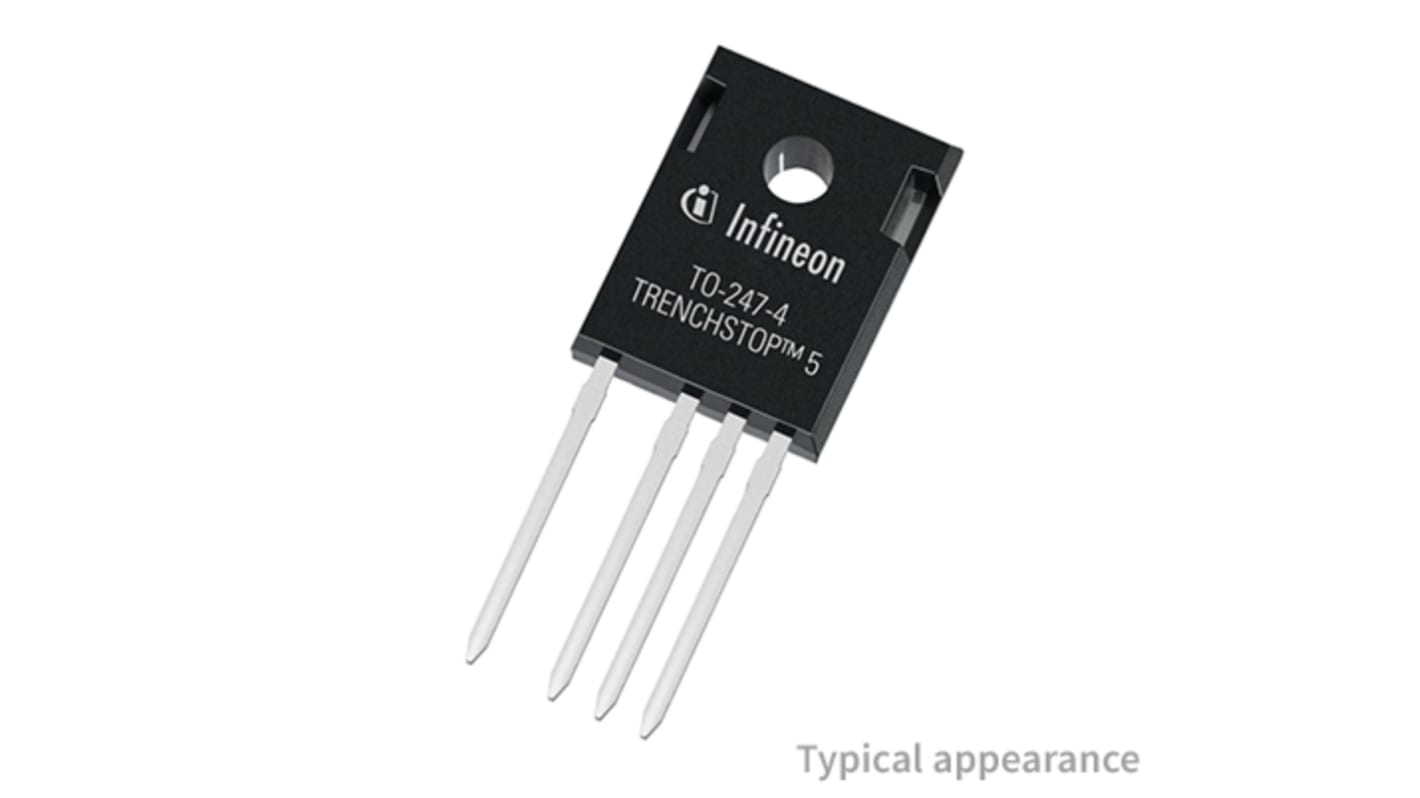

Infineon IKZ75N65EH5XKSA1, Type N-Channel IGBT, 75 A 650 V, 4-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£7.08

(exc. VAT)

£8.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 177 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£7.08
5 - 9£6.95
10 - 24£6.44
25 - 49£5.91
50 +£5.45

*price indicative

RS Stock No.:
273-2988
Mfr. Part No.:
IKZ75N65EH5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

75A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

395W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

4

Maximum Collector Emitter Saturation Voltage VceSAT

2.1V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Height

5.21mm

Length

21.1mm

Standards/Approvals

JEDEC, RoHS

Width

16.13 mm

Automotive Standard

No

The Infineon IGBT offers the technology in a high power package with an extra Kelvin emitter pin. The TO-247 4pin provides ultra-low inductance to the gate-emitter control loop and brings TRENCHSTOP 5 IGBT to the next level of best in class switching perf

Benefit increase at high current conditions

IGBTs operates under lower junction temperature
