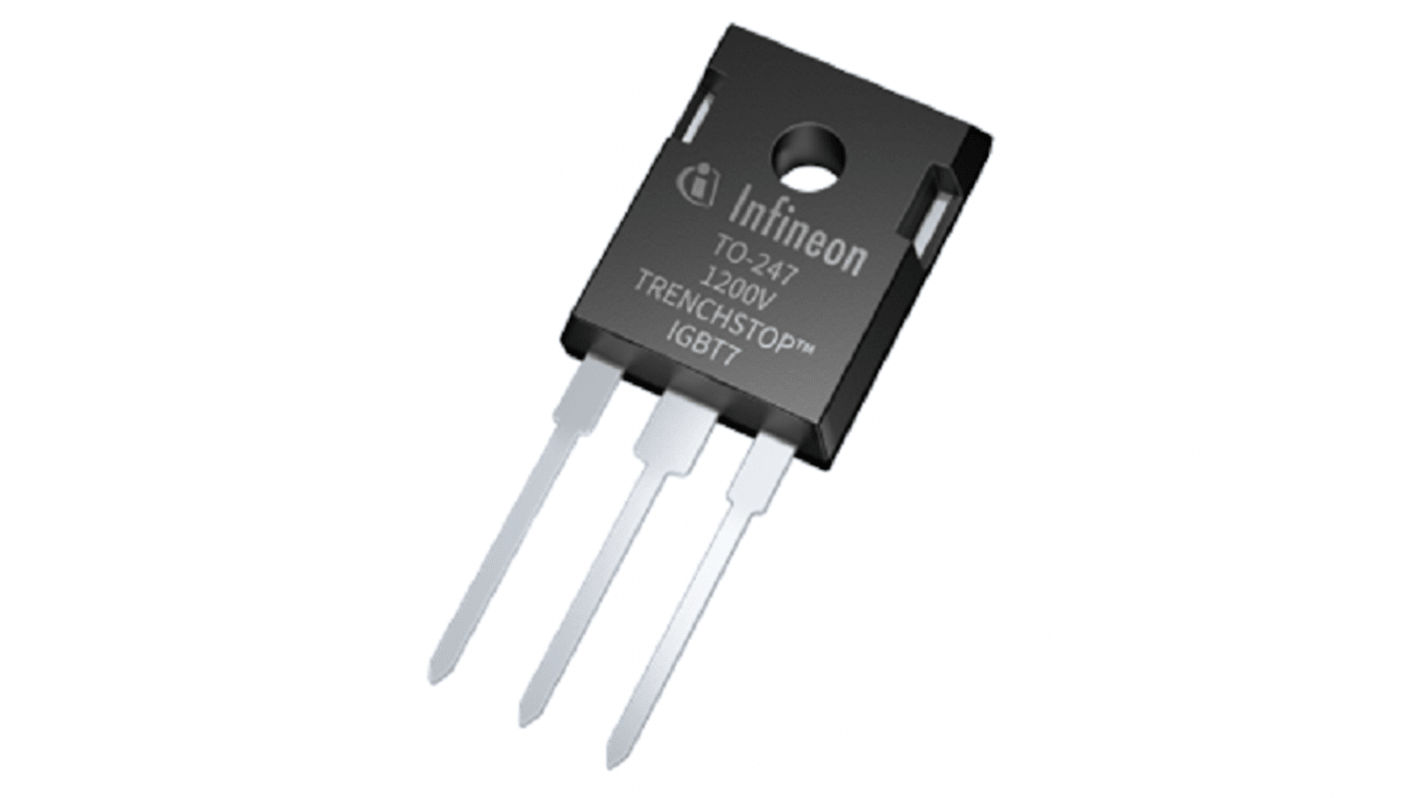

Infineon IKW75N120CH7XKSA1 IGBT, 75 A 1200 V, 3-Pin TO-247, Through Hole
- RS Stock No.:
- 273-2981
- Mfr. Part No.:
- IKW75N120CH7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 30 units)*
£155.73
(exc. VAT)
£186.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 270 unit(s) ready to ship
- Plus 999,999,720 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
30 - 30 | £5.191 | £155.73 |
60 + | £4.792 | £143.76 |
*price indicative
- RS Stock No.:
- 273-2981
- Mfr. Part No.:
- IKW75N120CH7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Maximum Continuous Collector Current | 75 A | |
Maximum Collector Emitter Voltage | 1200 V | |
Maximum Gate Emitter Voltage | ±20 V, ±30V | |
Maximum Power Dissipation | 549 W | |
Number of Transistors | 1 | |
Package Type | TO-247 | |
Mounting Type | Through Hole | |
Channel Type | N | |
Pin Count | 3 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 75 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20 V, ±30V | ||
Maximum Power Dissipation 549 W | ||
Number of Transistors 1 | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
The Infineon IGBT7 H7 discrete in TO-247 3pin package technology has been developed to fulfill the demand in applications focusing on decarbonisation such as solar photovoltaic, uninterruptible power supplies and battery chargers.
Optimized performance in application conditions
Humidity robustness under harsh environment
Improved EMI performance
Humidity robustness under harsh environment
Improved EMI performance
