Infineon IKY40N120CH3XKSA1, Type N-Channel IGBT, 40 A 1200 V, 4-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 tube of 30 units)*

£163.80

(exc. VAT)

£196.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 90 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30£5.46£163.80
60 +£5.04£151.20

*price indicative

RS Stock No.:
273-2985
Mfr. Part No.:
IKY40N120CH3XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

40A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

500W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

4

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

2.5V

Maximum Operating Temperature

175°C

Height

5.1mm

Standards/Approvals

RoHS, JEDEC47/20/22

Width

15.9 mm

Length

21.1mm

Automotive Standard

No

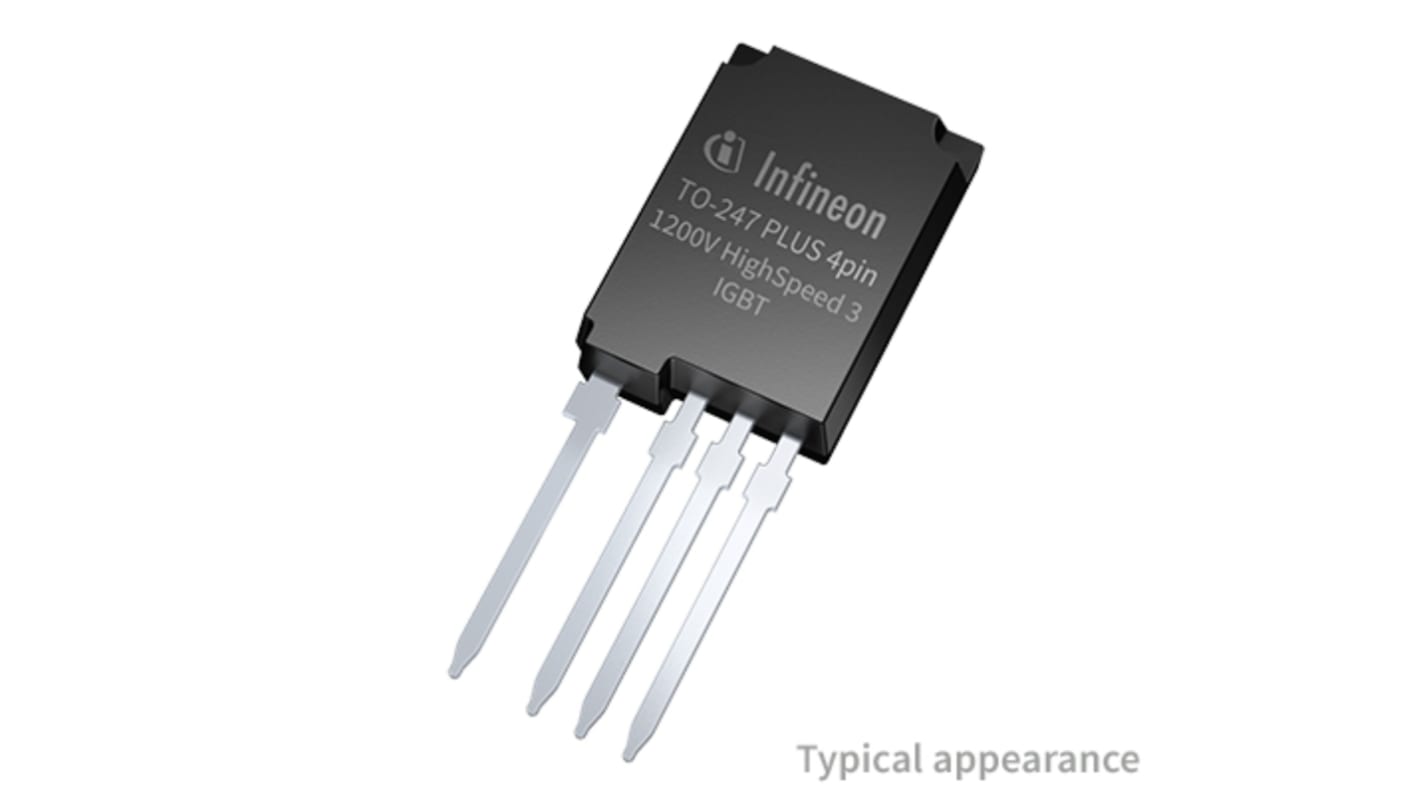

The Infineon IGBT3 in TO-247PLUS 4pin package. The 4 pin package configuration provides ultra low inductance to the gate emitter control loop with the 4 pin package directly to the gate driver and allows for reduction the both of E on and E off losses amo

Highest efficiency with lowest switching losses

High power density 1200V discrete IGBT
