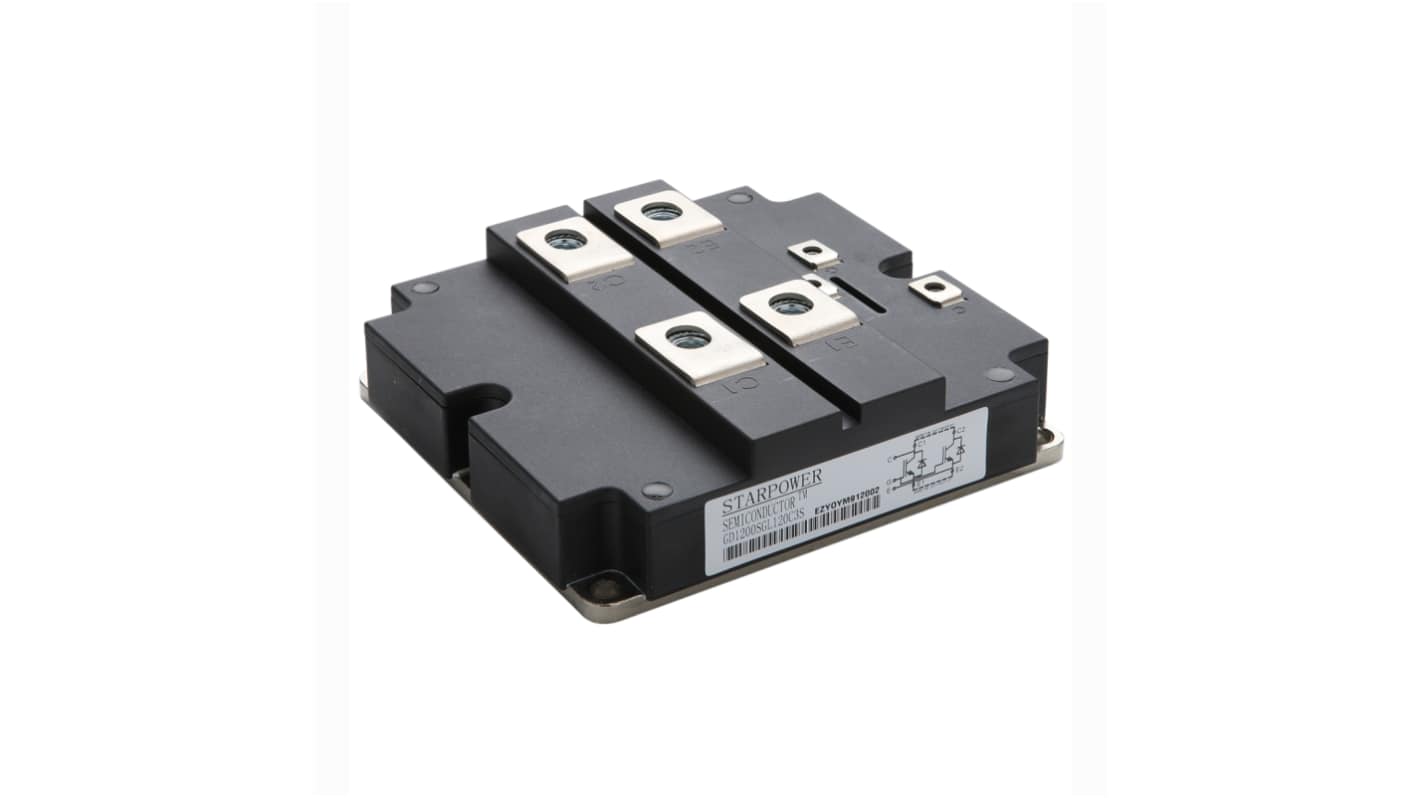

Starpower GD1200SGX170C3S, N-Channel IGBT, 1.2 kA 1.7 kV, Panel
- RS Stock No.:
- 433-240
- Mfr. Part No.:
- GD1200SGX170C3S
- Brand:
- Starpower
Image representative of range
Subtotal (1 box of 8 units)*
£2,634.58
(exc. VAT)
£3,161.50
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 8 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 8 + | £329.323 | £2,634.58 |
*price indicative
- RS Stock No.:
- 433-240
- Mfr. Part No.:
- GD1200SGX170C3S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current Ic | 1.2kA | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 1.7kV | |
| Maximum Power Dissipation Pd | 6.58kW | |
| Mount Type | Panel | |
| Channel Type | N | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.35V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current Ic 1.2kA | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 1.7kV | ||
Maximum Power Dissipation Pd 6.58kW | ||
Mount Type Panel | ||
Channel Type N | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.35V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
10μs short circuit capability
VCE(sat) with positive temperature coefficient
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
