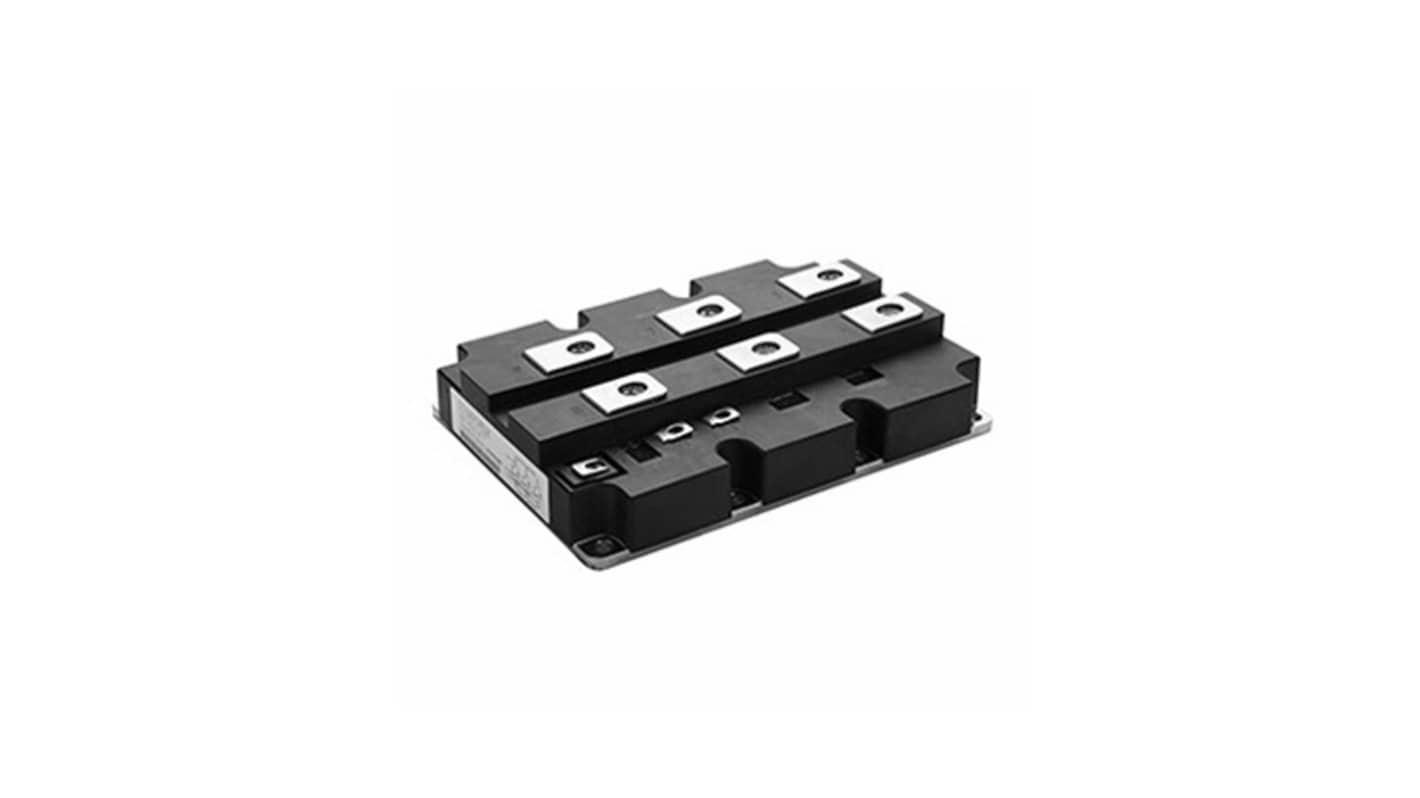

Starpower GD3600SGX170C4S, N-Channel Triple IGBT Power Module, 3600 A 1700 V, 9-Pin Module
- RS Stock No.:
- 427-731
- Mfr. Part No.:
- GD3600SGX170C4S
- Brand:
- Starpower
Subtotal (1 unit)*
£703.63
(exc. VAT)
£844.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 8 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £703.63 |
*price indicative
- RS Stock No.:
- 427-731
- Mfr. Part No.:
- GD3600SGX170C4S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current Ic | 3600A | |
| Product Type | IGBT Power Module | |
| Maximum Collector Emitter Voltage Vceo | 1700V | |
| Number of Transistors | 3 | |
| Maximum Power Dissipation Pd | 21.4kW | |
| Configuration | Triple | |
| Package Type | Module | |
| Channel Type | N | |
| Pin Count | 9 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.3V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current Ic 3600A | ||
Product Type IGBT Power Module | ||
Maximum Collector Emitter Voltage Vceo 1700V | ||
Number of Transistors 3 | ||
Maximum Power Dissipation Pd 21.4kW | ||
Configuration Triple | ||
Package Type Module | ||
Channel Type N | ||
Pin Count 9 | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.3V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as high power converters.
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
