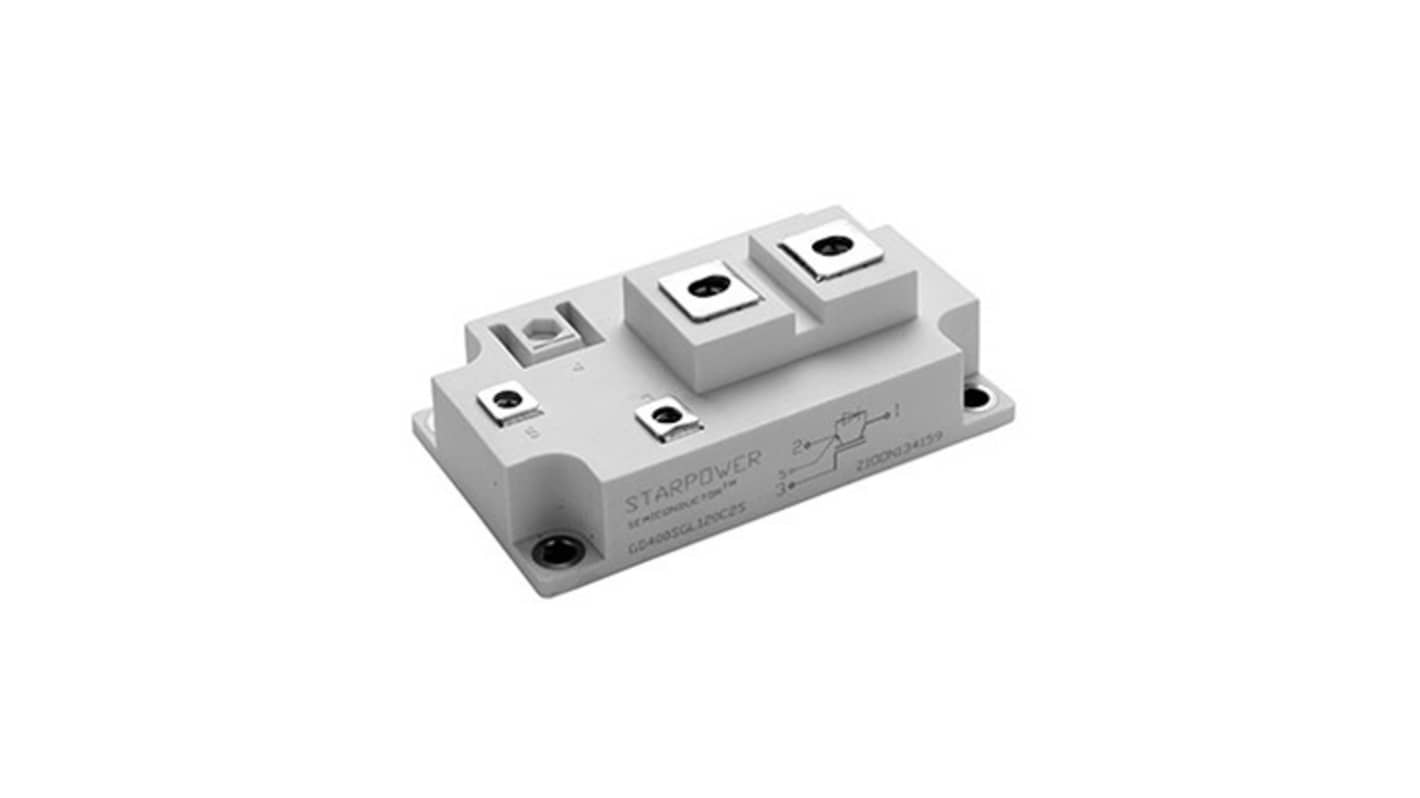

Starpower GD600SGY120C2S, N-Channel Half Bridge IGBT Module, 1000 A 1200 V, 5-Pin Module
- RS Stock No.:
- 427-722
- Mfr. Part No.:
- GD600SGY120C2S
- Brand:
- Starpower
Bulk discount available
Subtotal (1 unit)*
£91.66
(exc. VAT)
£109.99
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £91.66 |
| 10 + | £82.49 |
*price indicative
- RS Stock No.:
- 427-722
- Mfr. Part No.:
- GD600SGY120C2S
- Brand:
- Starpower
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Starpower | |
| Maximum Continuous Collector Current Ic | 1000A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Number of Transistors | 1 | |
| Maximum Power Dissipation Pd | 3409W | |
| Configuration | Half Bridge | |
| Package Type | Module | |
| Channel Type | N | |
| Pin Count | 5 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Starpower | ||
Maximum Continuous Collector Current Ic 1000A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation Pd 3409W | ||
Configuration Half Bridge | ||
Package Type Module | ||
Channel Type N | ||
Pin Count 5 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.15V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Starpower IGBT Power Module provides ultralow conduction loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS.
VCE(sat) with positive temperature coefficient
Maximum junction temperature 175°C
Low inductance case
Fast and soft reverse recovery anti parallel FWD
Isolated copper baseplate using DBC technology
