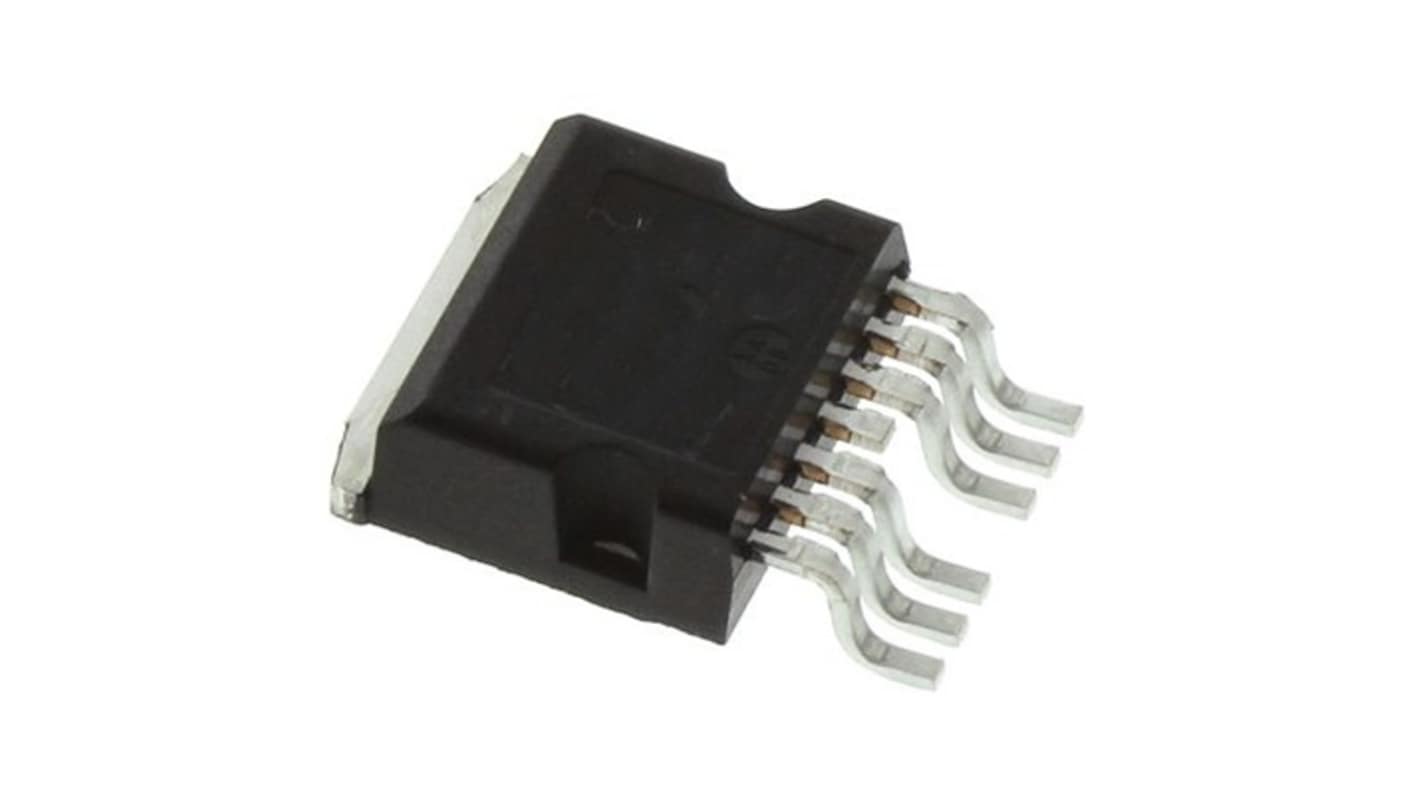

STMicroelectronics GH50H65DRB2-7AG IGBT, 108 A 650 V, 7-Pin H2PAK-7, Surface Mount
- RS Stock No.:
- 330-362
- Mfr. Part No.:
- GH50H65DRB2-7AG
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£2.49
(exc. VAT)
£2.99
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,980 unit(s) ready to ship
- Plus 999,998,019 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £2.49 |
10 - 99 | £2.25 |
100 - 499 | £2.07 |
500 - 999 | £1.92 |
1000 + | £1.72 |
*price indicative
- RS Stock No.:
- 330-362
- Mfr. Part No.:
- GH50H65DRB2-7AG
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Maximum Continuous Collector Current | 108 A | |
Maximum Collector Emitter Voltage | 650 V | |
Maximum Gate Emitter Voltage | ±20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 385 W | |
Package Type | H2PAK-7 | |
Mounting Type | Surface Mount | |
Pin Count | 7 | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 108 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 385 W | ||
Package Type H2PAK-7 | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
- COO (Country of Origin):
- CN
The STMicroelectronics newest IGBT 650 HB2 series represents an evolution of the advanced proprietary trench gate field-stop structure. The performance of the HB2 series is optimized in terms of conduction, thanks to a better VCE(sat) behaviour at low current values, as well as in terms of reduced switching energy.
AEC-Q101 qualified
Maximum junction temperature TJ equal to 175 °C
High speed switching series
Minimized tail current
Tight parameter distribution
Low thermal resistance
Positive VCE(sat) temperature coefficient
Co-packed with high ruggedness rectifier diode
Excellent switching performance thanks to the extra driving kelvin pin
Maximum junction temperature TJ equal to 175 °C
High speed switching series
Minimized tail current
Tight parameter distribution
Low thermal resistance
Positive VCE(sat) temperature coefficient
Co-packed with high ruggedness rectifier diode
Excellent switching performance thanks to the extra driving kelvin pin
