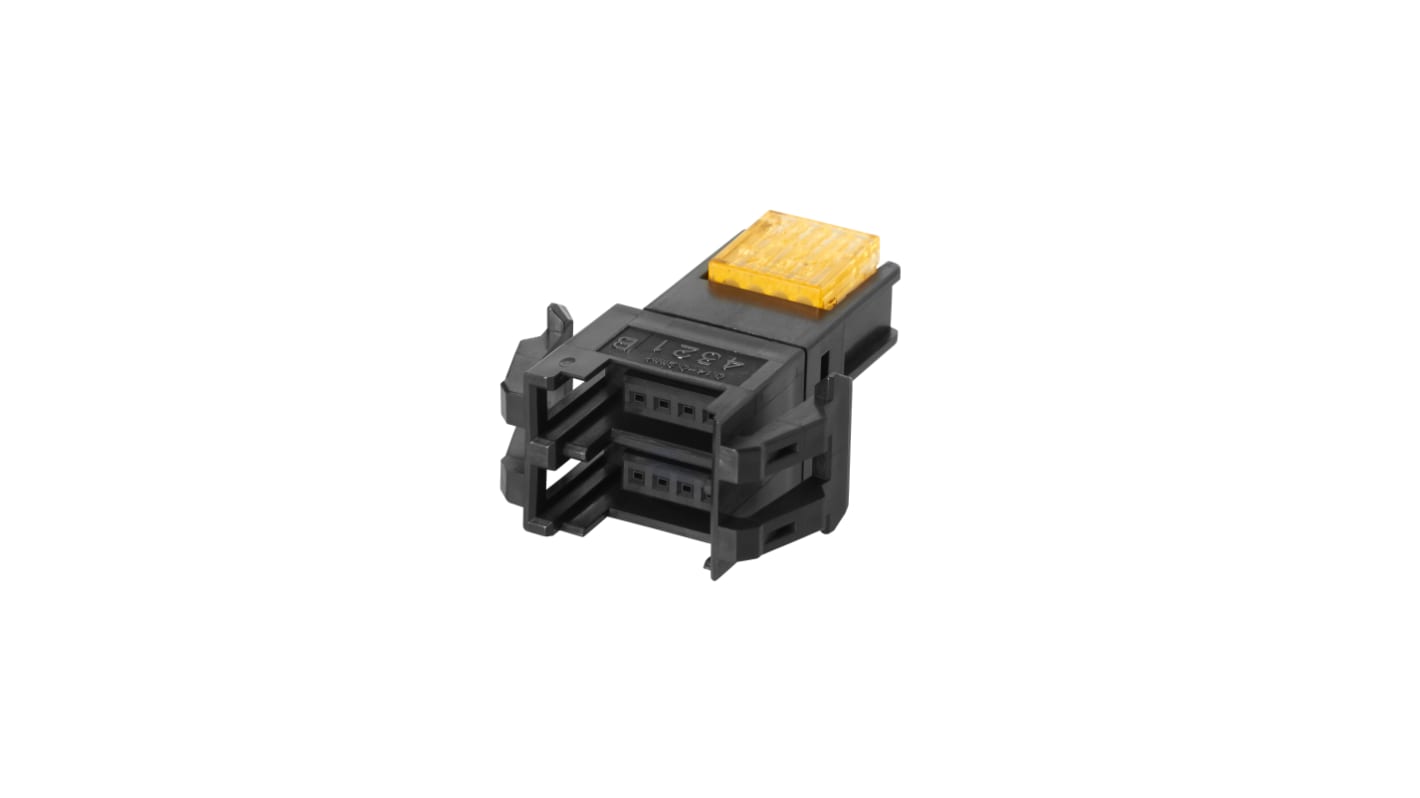

3M 12-Way IDC Connector Female for Cable, 3 Row
- RS Stock No.:
- 287-0629
- Mfr. Part No.:
- 7100226317
- Brand:
- 3M
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 100 units)*
£526.30
(exc. VAT)
£631.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 100 | £5.263 | £526.30 |
| 200 + | £5.105 | £510.50 |
*price indicative
- RS Stock No.:
- 287-0629
- Mfr. Part No.:
- 7100226317
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 12 | |
| Product Type | IDC Connector | |
| Number of Rows | 3 | |
| Current | 3A | |
| Pitch | 2mm | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Cable | |
| Connector Gender | Female | |
| Voltage | 32V | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | 20°C | |
| Series | 37C | |
| Termination Type | IDC | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Contact Material | Copper Alloy | |
| Housing Material | Polybutylene Terephthalate | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 12 | ||
Product Type IDC Connector | ||
Number of Rows 3 | ||
Current 3A | ||
Pitch 2mm | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Cable | ||
Connector Gender Female | ||
Voltage 32V | ||
Contact Plating Gold | ||
Minimum Operating Temperature 20°C | ||
Series 37C | ||
Termination Type IDC | ||
Contact Gender Female | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Contact Material Copper Alloy | ||
Housing Material Polybutylene Terephthalate | ||
- COO (Country of Origin):
- JP
The 3M mini-clamp dual socket is compatible with two 3M Mini-Clamp connectors, offers space and cable savings. This allows for both current and signal splitting on the sensor cable. All 3M Mini-Clamp connectors support Insulation Displacement Technology (IDC), enabling quick and straightforward on-site installation using hand pliers. The semi-transparent housing of the connectors facilitates easy inspection during installation, ensuring efficient and reliable setup.
Socket pluggable with two mini clamp connectors
Suitable for splitting power and signal for sensor cabling
No stripping required, saving time and avoiding cable damage
