MPN

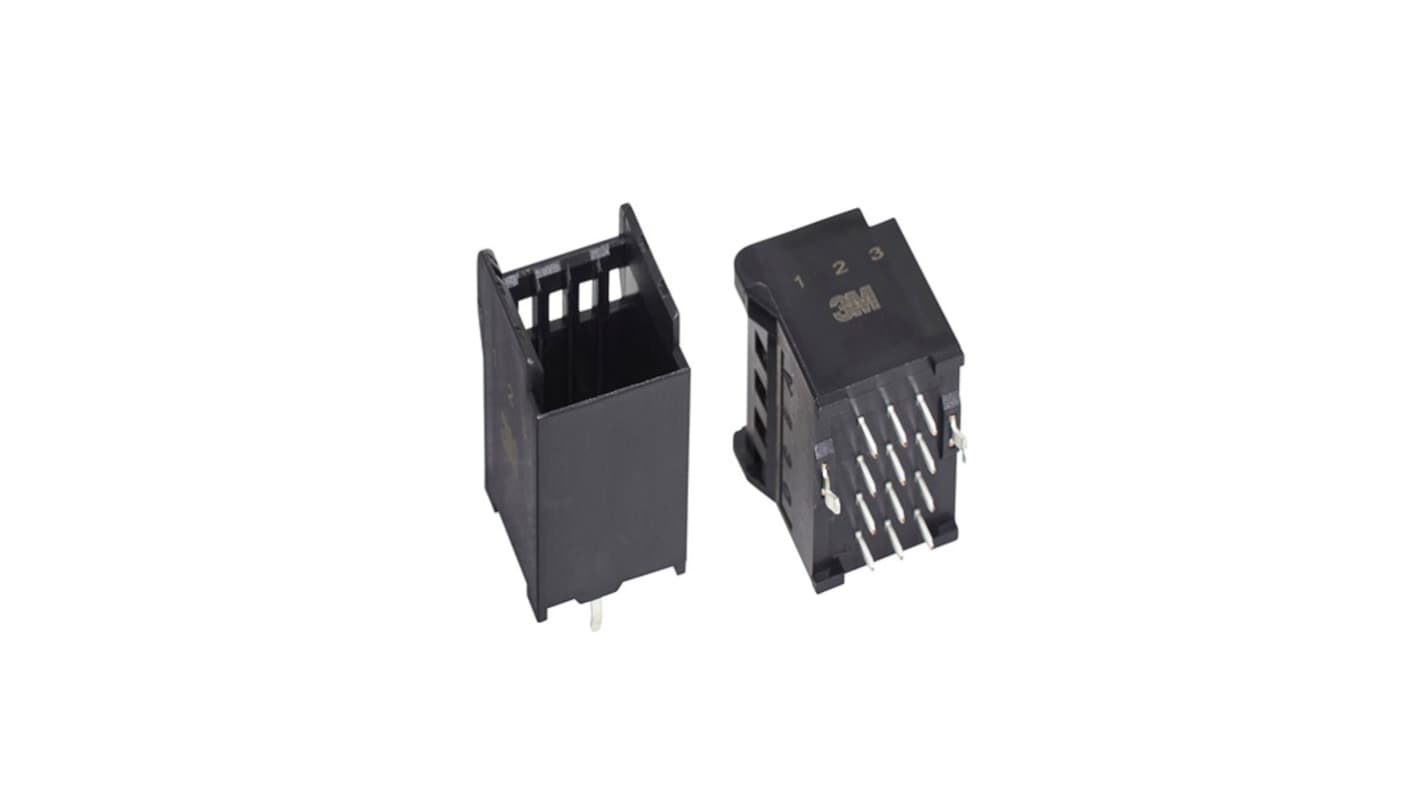

3M 12-Way Connector for Cable, 4 Row

Subtotal (1 pack of 100 units)*

£356.39

(exc. VAT)

£427.67

(inc. VAT)

Stocked by manufacturer

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Pack(s)	Per Pack	Per unit*
1 +	£356.39	£3.564

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	3M
	Product Type	Connector
	Number of Contacts	12
	Number of Rows	4
	Current	2A
	Pitch	3mm
	Mount Type	Cable
	Voltage	32V
	Orientation	Right Angle
	Contact Plating	Nickel
	Minimum Operating Temperature	-20°C
	Series	3S6XX-62XX
	Termination Type	Pin and Solder
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Contact Material	Copper Alloy

	Select all
	Brand 3M
	Product Type Connector
	Number of Contacts 12
	Number of Rows 4
	Current 2A
	Pitch 3mm
	Mount Type Cable
	Voltage 32V
	Orientation Right Angle
	Contact Plating Nickel
	Minimum Operating Temperature -20°C
	Series 3S6XX-62XX
	Termination Type Pin and Solder
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Contact Material Copper Alloy

RoHS Status: Exempt

The 3M Connector Header with Through-Hole Mounting, Right-Angle Configuration, featuring 12 Positions Spaced at 0.118 Inch or 3.00mm.

Termination Kinked Pin and Solder

Fastening Type Push-Pull
