RS PRO 12-Way IDC Connector Female for Cable, 2 Row
- RS Stock No.:
- 284-6494
- Brand:
- RS PRO
Get a bulk buy discount
Add 5 more to save £0.45
View bulk pricing optionsSubtotal (1 unit)*
£0.78
(exc. VAT)
£0.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 943 unit(s) shipping from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £0.78 | - |
| 5 - 9 | £0.69 | £0.45 |
| 10 + | £0.61 | £1.70 |
*price indicative
- RS Stock No.:
- 284-6494
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | IDC Connector | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Current | 1A | |
| Pitch | 2mm | |
| Connector Gender | Female | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Cable | |
| Voltage | 500V ac | |
| Orientation | Straight | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | IDC | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Housing Material | Polybutylene Terephthalate | |
| Contact Material | Copper | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type IDC Connector | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Current 1A | ||
Pitch 2mm | ||
Connector Gender Female | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Cable | ||
Voltage 500V ac | ||
Orientation Straight | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Termination Type IDC | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Housing Material Polybutylene Terephthalate | ||
Contact Material Copper | ||
- COO (Country of Origin):
- CN

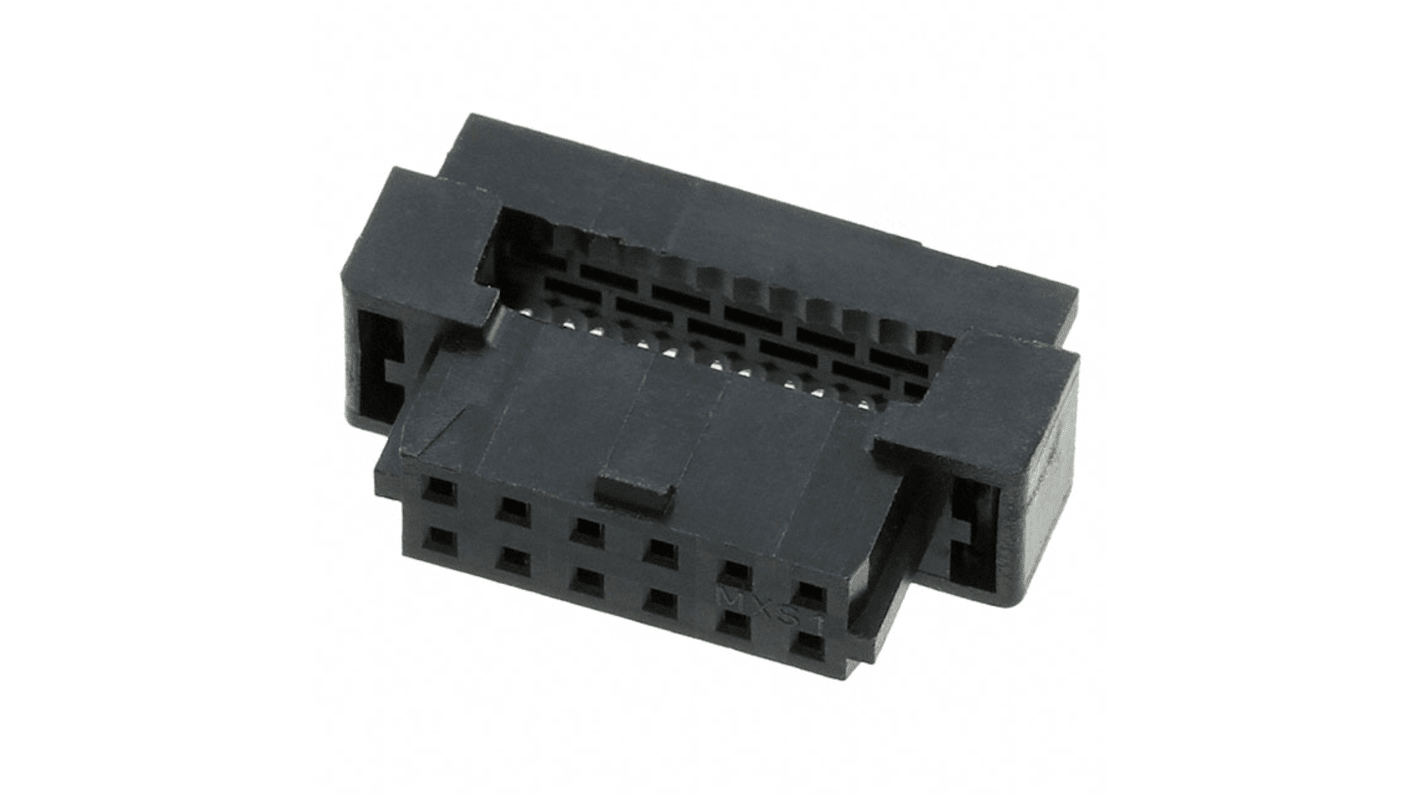

RS PRO Black 12 Way IDC Connector Jack
A low profile IDC connector jack for wire to board connections intended for use with flat ribbon cable. The IDC jack features a 2mm pitch providing stable connection and a polarising key design eliminating incorrect mating.;The 12 way IDC jack features 2 rows of contacts constructed from Copper providing excellent wear resistance protecting against breaks from repeated insertions and a Gold plating for a high level of conductivity with a hardwearing PBT housing.;A durable and reliable connector jack ideally suited for use in computers connecting drives including CD drives and SSDs.
Features and Benefits
Black IDC connector jack;12 way/ 2 rows;Voltage rating of 500 V ac;Suitable for 2mm pitch ribbon cable ;Contact resistance of 20MΩ;Insulation resistance of 1000MΩ;Short latch ejection;Cable mount design (28AWG wire);Dimensions of 18.65 x 4.2mm
