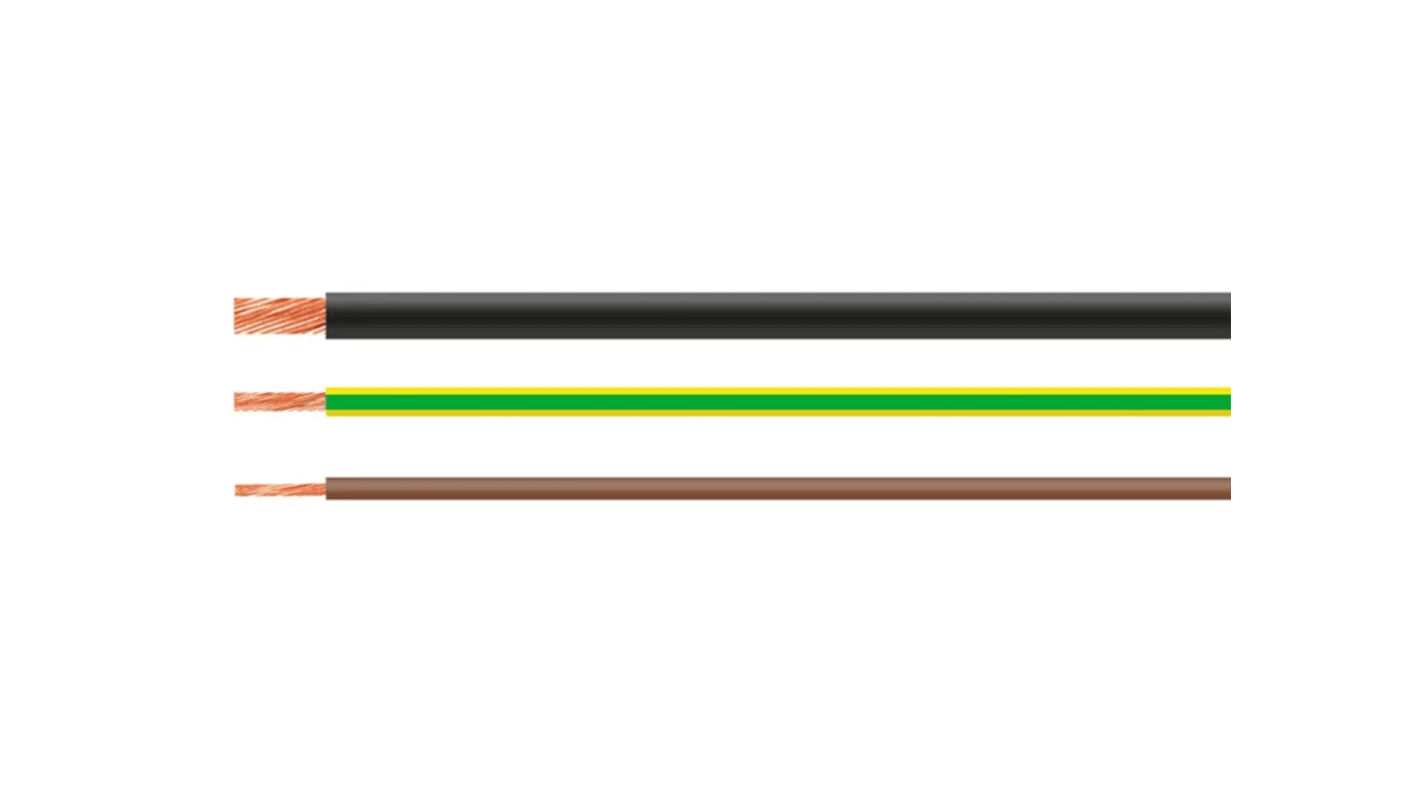

Helukabel H07V Series Black 10 mm² Hook Up Wire, 8 AWG, 100 m, Polyvinyl Chloride, 29193
- RS Stock No.:
- 362-007
- Mfr. Part No.:
- 29193
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£182.83
(exc. VAT)
£219.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £182.83 | £1.828 |
*price indicative
- RS Stock No.:
- 362-007
- Mfr. Part No.:
- 29193
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Cross Sectional Area | 10 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Black | |
| American Wire Gauge | 8AWG | |
| Cable Length | 100m | |
| Voltage | 750 V | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Standards/Approvals | DIN EN 60332-1-2, DIN VDE 0285-525-2-31, DIN VDE 0295 Class 5, DIN VDE 0482-332-1-2, IEC 60227-3, IEC 60228 Class 5, IEC 60332-1-2, DIN EN 50363-3 (compound type TI1), DIN EN 50525-2-31, DIN VDE 0207-363-3 | |
| Cable Type | Round | |
| Jacket Material | Polyvinyl Chloride | |
| Sub Type | Helukabel PVC Single Core Cable | |
| Minimum Operating Temperature | -30°C | |
| Fire Behaviour | Flame Retardant | |
| Series | H07V | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Cross Sectional Area 10 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Black | ||
American Wire Gauge 8AWG | ||
Cable Length 100m | ||
Voltage 750 V | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Standards/Approvals DIN EN 60332-1-2, DIN VDE 0285-525-2-31, DIN VDE 0295 Class 5, DIN VDE 0482-332-1-2, IEC 60227-3, IEC 60228 Class 5, IEC 60332-1-2, DIN EN 50363-3 (compound type TI1), DIN EN 50525-2-31, DIN VDE 0207-363-3 | ||
Cable Type Round | ||
Jacket Material Polyvinyl Chloride | ||
Sub Type Helukabel PVC Single Core Cable | ||
Minimum Operating Temperature -30°C | ||
Fire Behaviour Flame Retardant | ||
Series H07V | ||
- COO (Country of Origin):
- DE
The Helukabel PVC single core cable designed for an installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
Radiation resistance
Finely stranded
DIN VDE 0482-332-1-2 and DIN EN 60332-1-2 standard
