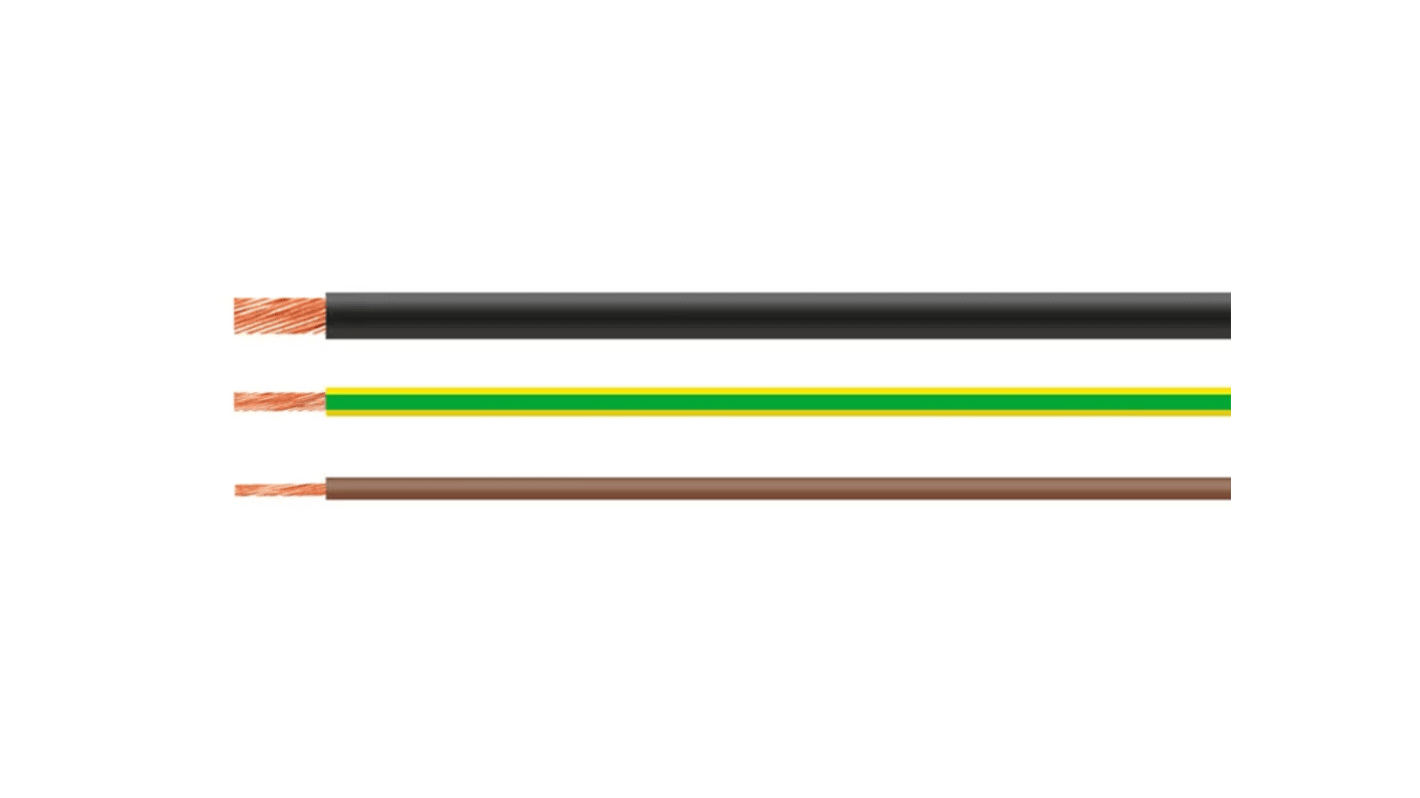

Helukabel H07V Series Black 35 mm² Hook Up Wire, 2 AWG, 10 m, Polyvinyl Chloride, 26873
- RS Stock No.:
- 361-999
- Mfr. Part No.:
- 26873
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£484.08
(exc. VAT)
£580.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £484.08 | £4.841 |
*price indicative
- RS Stock No.:
- 361-999
- Mfr. Part No.:
- 26873
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 35 mm² | |
| Jacket Colour | Black | |
| American Wire Gauge | 2AWG | |
| Cable Length | 10m | |
| Voltage | 750V | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Type | Round | |
| Standards/Approvals | IEC 60227-3, DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1), DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, DIN VDE 0295 Class 5 / IEC 60228 Class 5, DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 | |
| Minimum Operating Temperature | 30°C | |
| Sub Type | Finely Stranded Single Core | |
| Fire Behaviour | Flame Retardant, Oil Resistant | |
| Series | H07V | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 35 mm² | ||
Jacket Colour Black | ||
American Wire Gauge 2AWG | ||
Cable Length 10m | ||
Voltage 750V | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Cable Type Round | ||
Standards/Approvals IEC 60227-3, DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI1), DIN VDE 0285-525-2-31 / DIN EN 50525-2-31, DIN VDE 0295 Class 5 / IEC 60228 Class 5, DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2 | ||
Minimum Operating Temperature 30°C | ||
Sub Type Finely Stranded Single Core | ||
Fire Behaviour Flame Retardant, Oil Resistant | ||
Series H07V | ||
- COO (Country of Origin):
- DE
The Helukabel PVC single core finely stranded cable suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
Flame retardant
DIN EN 60332-1-2 and IEC 60332-1-2 standard
