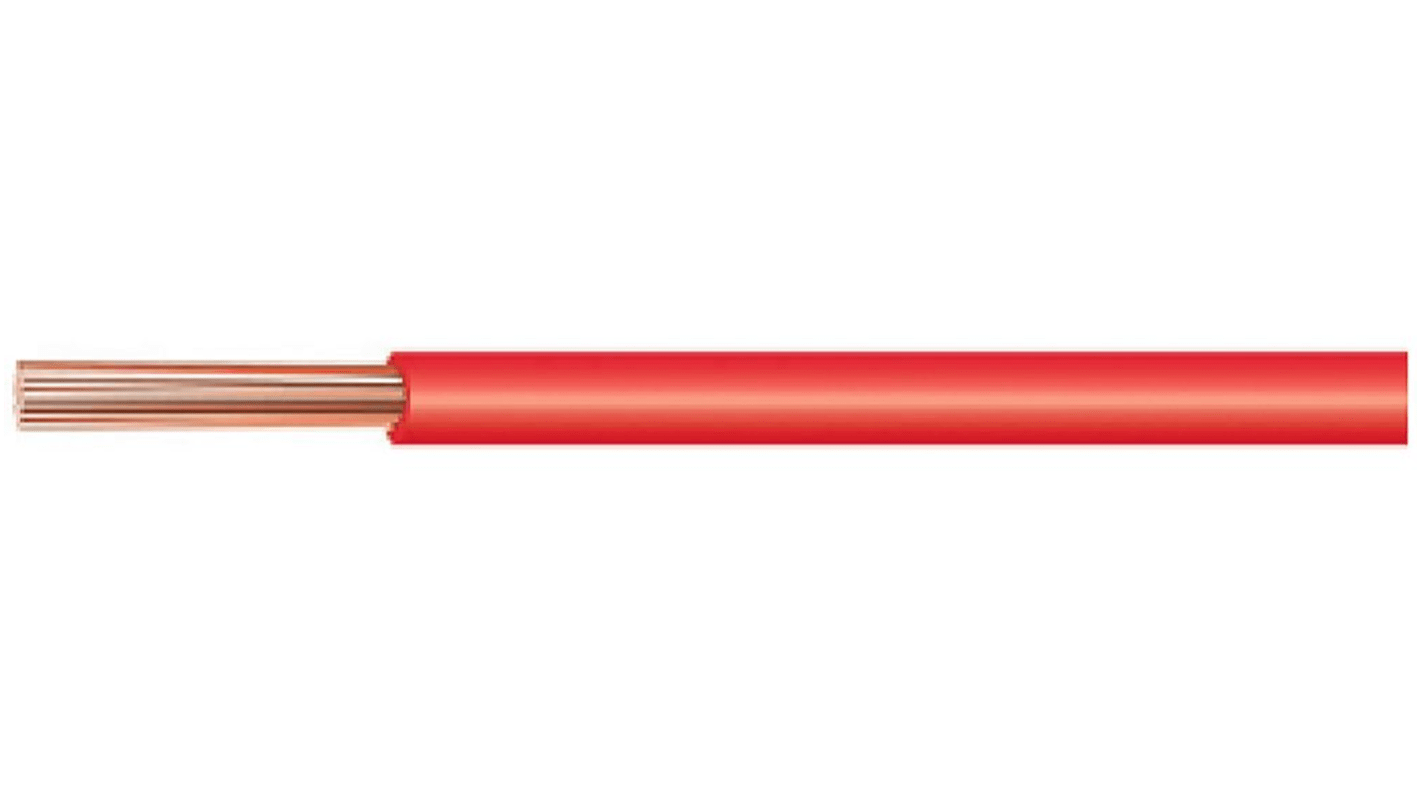

Helukabel H07V Series Red 10 mm² Hook Up Wire, 8 AWG, 100 m, Polyvinyl Chloride, 29197
- RS Stock No.:
- 362-009
- Mfr. Part No.:
- 29197
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£147.34
(exc. VAT)
£176.81
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £147.34 | £1.473 |
*price indicative
- RS Stock No.:
- 362-009
- Mfr. Part No.:
- 29197
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Cross Sectional Area | 10 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Red | |
| American Wire Gauge | 8AWG | |
| Cable Length | 100m | |
| Voltage | 750V | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Type | Round | |
| Standards/Approvals | DIN VD0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, DIN VD0295, DIN VD0285-525-2-31 / DIN EN 50525-2-31, DIN VD0207-363-3 / DIN EN 50363-3 (compound typTI1), IEC 60228, IEC 60227-3 | |
| Minimum Operating Temperature | 30°C | |
| Sub Type | Helukabel PVC Single Core Cable | |
| Fire Behaviour | Flame Retardant, Oil Resistant | |
| Series | H07V | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Cross Sectional Area 10 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Red | ||
American Wire Gauge 8AWG | ||
Cable Length 100m | ||
Voltage 750V | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Cable Type Round | ||
Standards/Approvals DIN VD0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, DIN VD0295, DIN VD0285-525-2-31 / DIN EN 50525-2-31, DIN VD0207-363-3 / DIN EN 50363-3 (compound typTI1), IEC 60228, IEC 60227-3 | ||
Minimum Operating Temperature 30°C | ||
Sub Type Helukabel PVC Single Core Cable | ||
Fire Behaviour Flame Retardant, Oil Resistant | ||
Series H07V | ||
- COO (Country of Origin):
- DE
The Helukabel PVC single core cable designed for an installation in electrical conduits, on or under plaster or similar enclosed systems. Suitable for protected and fixed installation in lighting systems or switching and control devices up to and including 1000 V AC voltage or up to 750 V DC voltage against earth. Not suitable for direct laying in cable ladders and cable trays, except as a potential equalization cable.
Radiation resistance
Finely stranded
DIN VDE 0482-332-1-2 and DIN EN 60332-1-2 standard
